Description
Fuji Electric SC-03/G 24VDC 11A Contactor with Cover 3-Pole AC3 DIN Rail
The Fuji Electric SC-03/G is a compact 3-pole IEC-style motor contactor with a 24VDC coil, rated at 11A and conforming to AC3 utilization category for squirrel-cage motor switching. It mounts on standard DIN rail and is designed for use in motor control centers, machine panels, and industrial automation enclosures. This unit includes the original clear protective cover over the top terminals.
Specifications & What's Included
- Model: Fuji Electric SC-03/G
- Coil Voltage: 24VDC
- Current Rating: 11A
- Number of Poles: 3 (main contacts)
- Auxiliary Contact: 1NO (terminal 13/14)
- Utilization Category: AC3 (squirrel-cage motor switching)

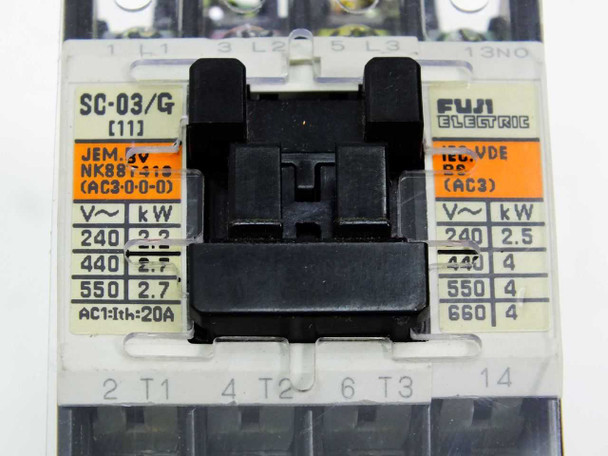

- JEM Standard: NK88-413 (AC3-0-0)
- JEM AC3 Power Ratings: 240V / 2.2kW; 440V / 2.7kW; 550V / 2.7kW
- IEC AC3 Power Ratings: 240V / 2.5kW; 440V / 4kW; 550V / 4kW; 660V / 4kW
- Thermal Current (Ith): 20A
- Main Terminals: L1, L2, L3 (input) / T1, T2, T3 (output)
- Coil Terminals: A1, A2
- Mounting: DIN rail
- Includes: Clear protective terminal cover
Applications
The SC-03/G series contactor is used in industrial motor control applications for starting and stopping three-phase motors in machinery, conveyor systems, pumps, fans, and compressors. The AC3 rating makes it suited for direct-on-line motor starting where inrush currents must be handled reliably. Its 24VDC coil voltage is common in control circuits that use a DC control bus, keeping the control side isolated from higher AC line voltages. This type of compact IEC contactor is widely used in European and Asian machine building standards and is found in automation panels, motor control centers (MCCs), and OEM equipment throughout the manufacturing and process industries.
This Fuji Electric SC-03/G 24VDC 11A contactor has been inspected and appears to be in good condition. It was pulled from a working environment where it was actively in use. The unit shows normal wear consistent with prior service. The clear protective cover is included and in place. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
Fuji Electric |
Model: |
SC-03/G |
MPN: |
SC-03/G |
Type: |
IEC Contactor |
SKU: |
45623 |
Coil Voltage: |
24VDC |
Current Rating: |
11A |
Number of Poles: |
3 |
Utilization Category: |
AC3 |
JEM Standard: |
NK88-413 (AC3-0-0) |
Rated Voltage (JEM AC3): |
240V: 2.2kW; 440V: 2.7kW; 550V: 2.7kW |
Rated Voltage (IEC AC3): |
240V: 2.5kW; 440V: 4kW; 550V: 4kW; 660V: 4kW |
Thermal Current (Ith): |
20A |
Auxiliary Contacts: |
1NO (terminal 13/14 visible) |
Mounting Type: |
DIN Rail |
Includes: |
Clear protective cover |
Condition: |
Used – Pulled from Working Environment |
Country/Region of Manufacture: |
Japan |
Review Status: |
Auto-Approved (needs review) 2026-07-04 |
Condition Notes: |
Fuji Electric SC-03/G 24VDC 11A contactor inspected and in good condition. Pulled from a working environment where it was in active use. Clear protective cover included. Normal wear. Contact us with any questions. |
