Description
ABB A9 RV5/50 Contactor 24-50V Coil 3-Pole 25A IEC947-4-1 CON 10
Three-pole IEC contactor rated for 25A continuous operation. Switches and controls three-phase AC motors and industrial loads up to 5.5 kW at 400-690V.
Specifications & What's Included
- Coil: 24-50V AC, 50/60 Hz
- Main contacts: 3-pole, 25A (IeAC-1)
- Auxiliary contact: 1 NC (21NC/22NC)
- Power ratings: 2.2 kW @ 230V, 4 kW @ 400V, 5.5 kW @ 500-690V AC-3
- Insulation voltage: 1000V
- Wire range: AWG 10-18 copper, torque 1 Nm
- Standards: IEC947-4-1, EN60947-4-1, UL Listed 247C
- Unit only; no accessories included
Applications
ABB A9 contactors are general-purpose motor starters and load switches used in industrial control cabinets, machine tools, pumps, compressors, and HVAC systems. These are common in European and global installations where IEC standards apply. Compatible with ABB A9 to A110 and AE45 to AE110 control systems. Typical use involves remote or manual control of three-phase motors in manufacturing, utilities, and building automation.
Condition: Used

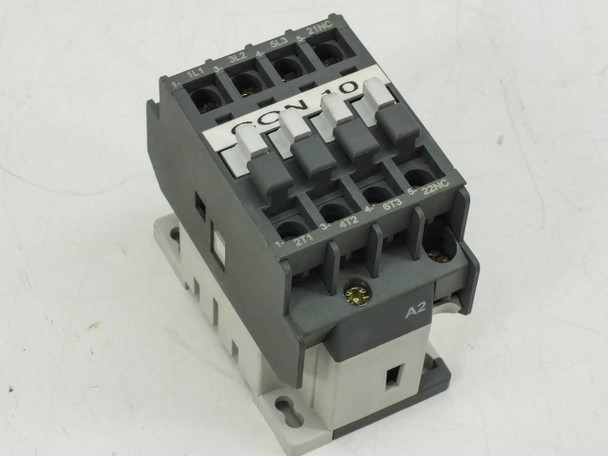

This ABB A9 RV5/50 contactor has been inspected and is in good used condition. The unit shows normal wear consistent with prior industrial use, including light surface marks on the housing, but the contact terminals, coil assembly, and auxiliary block appear intact and undamaged. The CON 10 label and coil rating labels are clearly legible. Please view our photo set for a detailed look at the unit's current cosmetic state and contact us if you have any questions.
This ABB A9 RV5/50 contactor has been inspected and is in good used condition. The unit shows normal wear consistent with prior industrial use, including light surface marks on the housing, but the contact terminals, coil assembly, and auxiliary block appear intact and undamaged. The CON 10 label and coil rating labels are clearly legible. Please view our photo set for a detailed look at the unit's current cosmetic state and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
ABB |
Model: |
A9 |
MPN: |
RV5/50 |
Type: |
IEC Contactor / Motor Starter |
SKU: |
46235 |
Coil Voltage: |
24-50V AC |
Coil Frequency: |
50Hz-60Hz |

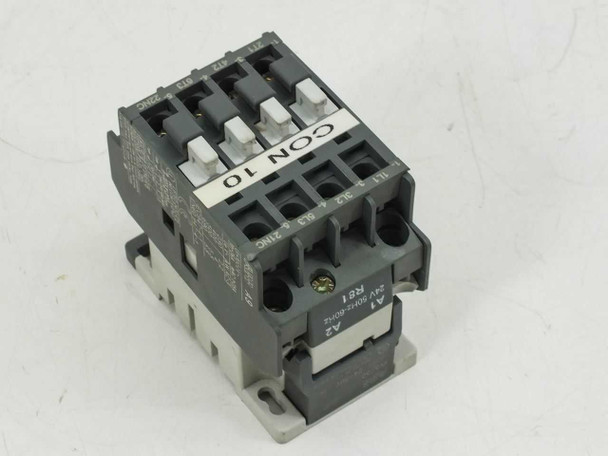

Coil Reference: |
RV5/50, Code R81 |
Continuous Current (Ith): |
26A |
Rated Operational Current (IeAC-1): |
25A |
Number of Main Poles: |
3 |
Auxiliary Contact: |
1 NC (21NC / 22NC) |

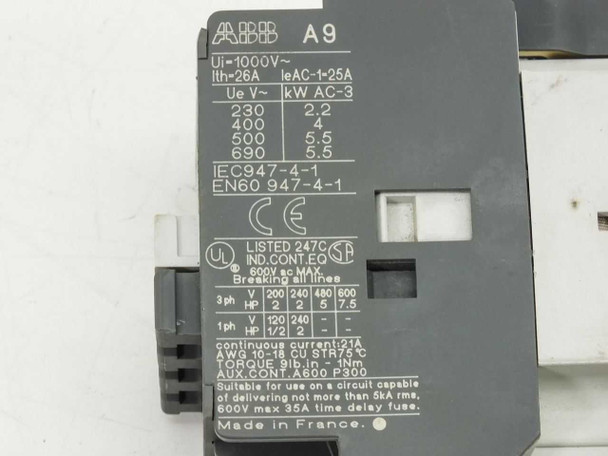

Insulation Voltage (Ui): |
1000V |
kW Rating at 230V AC-3: |
2.2 kW |
kW Rating at 400V AC-3: |
4 kW |
kW Rating at 500V AC-3: |
5.5 kW |
kW Rating at 690V AC-3: |
5.5 kW |
3-Phase HP at 200V: |
2 HP |
3-Phase HP at 240V: |
3 HP |
3-Phase HP at 480V: |
5 HP |
3-Phase HP at 600V: |
7.5 HP |
1-Phase HP at 120V: |
1/2 HP |
UL Max Voltage: |
600V AC |
UL Max Fuse (Time Delay): |
35A |
Standards: |
IEC947-4-1, EN60947-4-1 |
UL Listing: |
UL Listed 247C, IND.CONT.EG |
CE Certified: |
Yes |
Compatible With: |
N, A9 to A110 and AE45 to AE110 |
Terminal Connections: |
1L1, 3L2, 5L3, 21NC (input); 2T1, 4T2, 6T3, 22NC (output) |
Wire Range: |
AWG 10-18 CU STR 74°C |
Torque: |
9 lb-in (1 Nm) |
Country/Region of Manufacture: |
France |
Condition: |
Used – Inspected |
Seller Notes: |
Unit only; no additional accessories included. |
Condition Notes: |
ABB A9 RV5/50 contactor inspected and in good used condition. Normal wear on housing; terminals and coil assembly appear intact. Please view photos and contact us with questions. |
