Allen-Bradley 100-C09D10 IEC Contactor 9A 24VDC Coil 3-Pole AC-3 690V Series A

(No reviews yet) Write a Review
SKU:
49031
MPN:
100-C09D10
Condition:
Used
Availability:
Usually ships within 1–2 business days.
Weight:
2.00 LBS
Shipping:
Calculated at Checkout

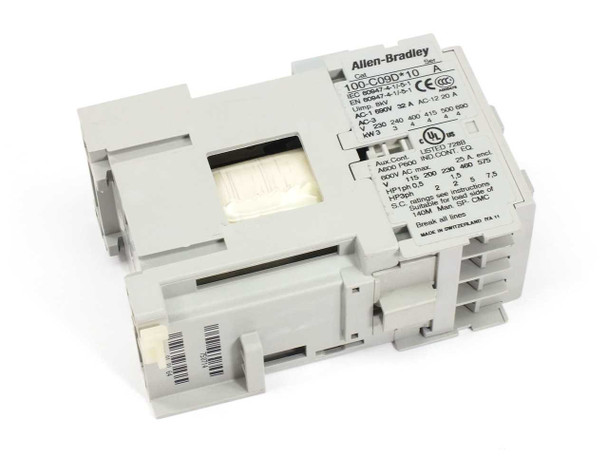

  • Allen-Bradley 100-C09D10 IEC contactor front-right angle view showing rating label and terminal connections
  • Allen-Bradley 100-C09D10 IEC contactor rear-left angle view showing coil housing and screw terminals

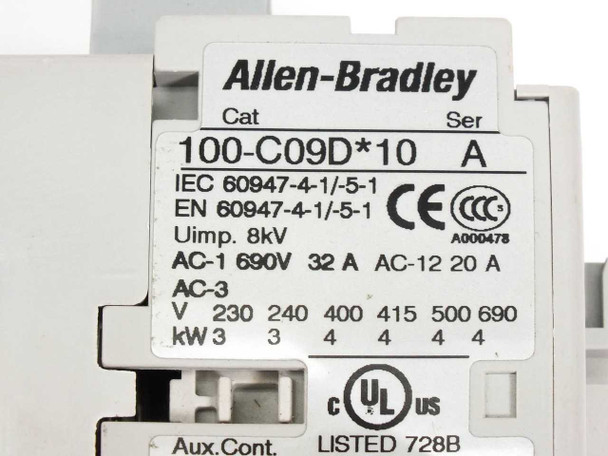

  • Allen-Bradley 100-C09D10 contactor rating label showing Cat No, Series A, IEC standards, AC-1/AC-3 ratings and voltage table
  • Allen-Bradley 100-C09D10 contactor side view showing full rating label with AC-3 power ratings and UL listing
  • Allen-Bradley 100-C09D10 contactor side profile view showing DIN rail mounting clip and coil assembly
  • Allen-Bradley 100-C09D10 contactor front face view showing 3-pole power terminals L1/L2/L3 and T1/T2/T3 and 24VDC coil markings
$42.00
Was: $80.00
Current Stock: 1

Sold Out

Description

Allen-Bradley 100-C09D10 IEC Contactor 9A 24VDC Coil 3-Pole AC-3 690V Series A

This is a 3-pole IEC motor contactor rated for 9A at AC-3 utilization category and 690V maximum. It features a 24VDC coil with low power pick-up and hold-in technology, plus one normally open auxiliary contact.

Specifications & What's Included

  • Model: 100-C09D10 (Series A)
  • Coil: 24V DC
  • Poles: 3
  • Current Rating (AC-3): 9A; (AC-1): 32A at 690V; (AC-12): 20A
  • Power Ratings (AC-3): 3kW at 230/240V, 4kW at 400–690V
  • Impulse Withstand: 8kV
  • Certifications: UL 728B, CE, CCC
  • DIN rail mount; Integrated PLC interface
  • Unit only, no accessories included

Applications

IEC contactors of this type are used in industrial motor control circuits and switchgear applications across Europe and internationally. The AC-3 rating suits direct-on-line motor starting with typical asynchronous motors. These contactors operate in PLCs and automation systems requiring reliable motor switching at voltages up to 690V, commonly found in manufacturing, HVAC, and industrial process equipment.

Condition: Used
This Allen-Bradley 100-C09D10 IEC Motor Contactor has been inspected and appears to be in good condition. The housing, terminals, and DIN rail clip are all intact with no cracks or damage noted. The unit shows minor surface wear consistent with prior industrial use. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Allen-Bradley
Model:
100-C09D10
MPN:
100-C09D10
Type:
IEC Motor Contactor
SKU:
49031
Series:
Series A
Coil Voltage:
24V DC
Number of Poles:
3
Current Rating (AC-3):
9A
Current Rating (AC-1):
32A at 690V AC
Current Rating (AC-12):
20A
Max Voltage (AC-3):
690V
Utilization Category:
AC-3
Impulse Withstand Voltage (Uimp):
8kV
Power Ratings (AC-3 kW):
3kW@230/240V, 4kW@400-690V
Standards:
IEC 60947-4-1/-5-1, EN 60947-4-1/-5-1
Certifications:
UL Listed 728B, CE, CCC
Interface:
Integrated PLC interface
Coil Technology:
Low power pick-up and hold-in
Auxiliary Contact:
1 NO (13-14)
Form Factor:
DIN Rail Mount
Country/Region of Manufacture:
Switzerland
Condition:
Used – Inspected and in Good Condition
Seller Notes:
Unit only, no additional accessories included.
Condition Notes:
Allen-Bradley 100-C09D10 IEC contactor has been inspected and is in good condition. Housing, terminals, and DIN rail clip are intact. Shows minor wear from prior use.
