Omron

Omron G3S4-D1 Terminal SSR 24VDC w/ G3SD-Z01P-PD Solid State Relay 4-Channel

(No reviews yet) Write a Review
SKU:
46911
MPN:
G3S4-D1
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
1.00 LBS
Shipping:
Calculated at Checkout

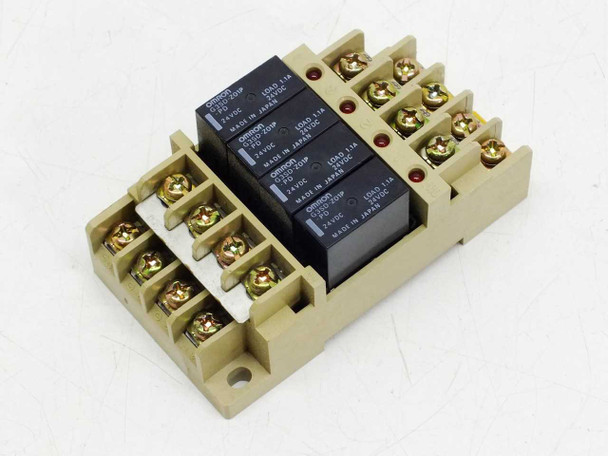

  • Omron G3S4-D1 terminal SSR assembly with four G3SD-Z01P-PD relay modules installed, front-left angle view showing screw terminals
  • Omron G3S4-D1 terminal SSR base — bottom view showing DIN rail clip and mounting slot detail

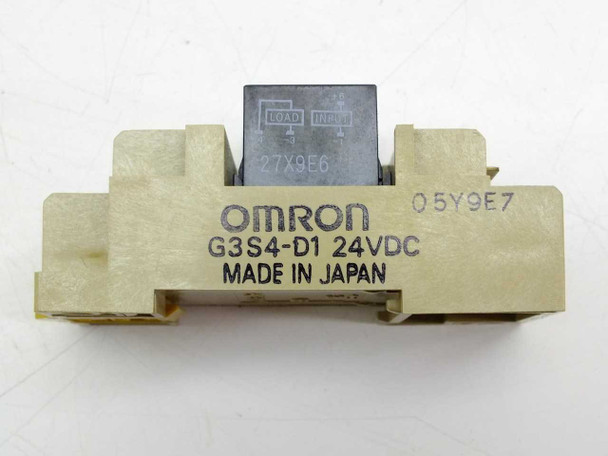

  • Omron G3S4-D1 24VDC label close-up showing model number, voltage rating, and Made in Japan marking

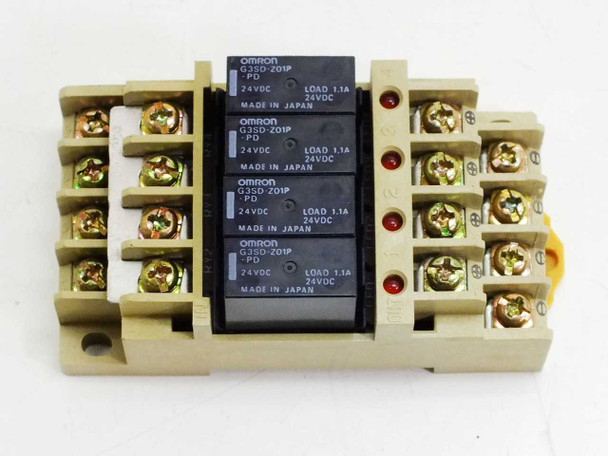

  • Omron G3S4-D1 terminal SSR assembly front view showing all four G3SD-Z01P-PD modules with 24VDC 1.1A load ratings and red LED indicators
$50.00
Was: $100.00
Current Stock: 4

Sold Out

Description

Omron G3S4-D1 Terminal SSR 24VDC w/ G3SD-Z01P-PD Solid State Relay 4-Channel

Four-channel solid state relay terminal assembly manufactured by Omron. Designed for switching 24VDC loads from low-voltage 5VDC logic signals in industrial control systems.

Specifications & What's Included

  • Model: G3S4-D1 terminal base with four G3SD-Z01P-PD SSR modules installed
  • Load Voltage: 24VDC
  • Input Voltage: 5VDC
  • Rated Load Current: 1.1A per channel
  • Number of Channels: 4
  • Mounting: DIN Rail
  • Manufactured in Japan

Applications

Terminal SSR assemblies are used in industrial automation, telecommunications equipment, and control panels to switch DC loads without mechanical relays. The G3S4-D1 accommodates modular relay cards for flexible circuit configuration. Commonly found in legacy factory automation, process control systems, and telecom switching infrastructure requiring low-current relay switching.

Condition: Used
This Omron G3S4-D1 Terminal SSR assembly with four G3SD-Z01P-PD solid state relay modules has been inspected and appears to be in good used condition. The terminal base and relay modules show normal handling wear consistent with prior industrial use. All four relay modules are present and seated in the terminal base. The screw terminals and DIN rail mounting clip appear intact. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Omron
Model:
G3S4-D1
MPN:
G3S4-D1
Secondary Model:
G3SD-Z01P-PD
Type:
Terminal Solid State Relay (SSR) Assembly
SKU:
46911
Seller Notes:
Includes G3S4-D1 terminal base with four G3SD-Z01P-PD SSR modules installed
Country/Region of Manufacture:
Japan
Load Voltage:
24VDC
Input Voltage:
5VDC
Rated Load Current:
1.1A per channel
Number of Channels:
4
Relay Type:
Solid State Relay (SSR)
Mounting Type:
DIN Rail
Form Factor:
Terminal Block / DIN Rail Module
Condition Notes:
Omron G3S4-D1 Terminal SSR with 4x G3SD-Z01P-PD modules. Inspected and in good used condition. All four relay modules present and seated. Normal wear from prior industrial use.
