Omron G3FM-2R5 SLN Solid State Relay & G6B-1114P HH52PW-L PYFO8A DIN Rail

(No reviews yet) Write a Review
SKU:
45676
MPN:
G3FM-2R5
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
4.00 LBS
Shipping:
Calculated at Checkout

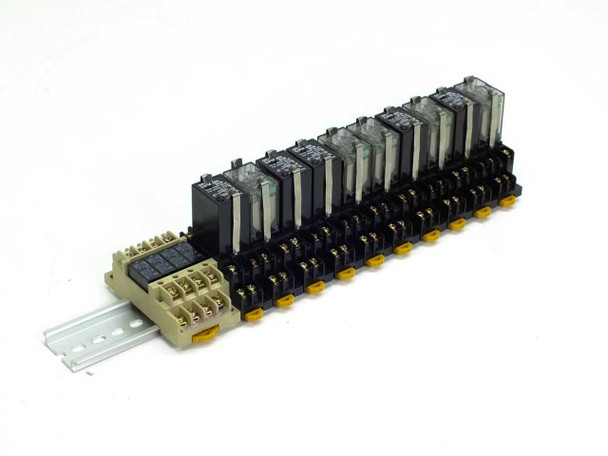

  • Omron G3FM-2R5 SLN solid state relay and G6B-1114P relay assembly mounted on metal DIN rail slider – full assembly front-angle view

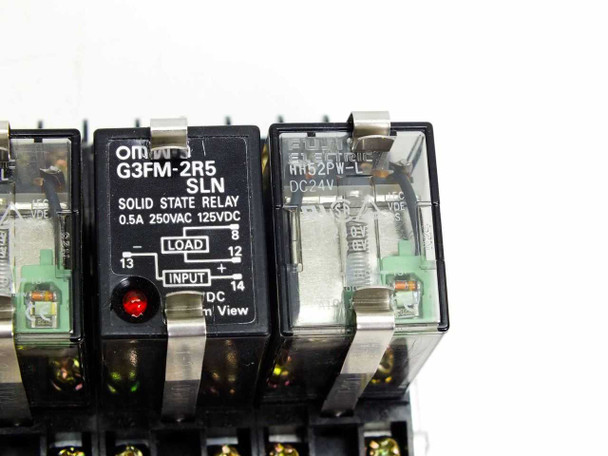

  • Close-up of Omron G3FM-2R5 SLN solid state relay label showing 0.5A 250VAC 125VDC rating and Fuji HH52PW-L DC24V relay

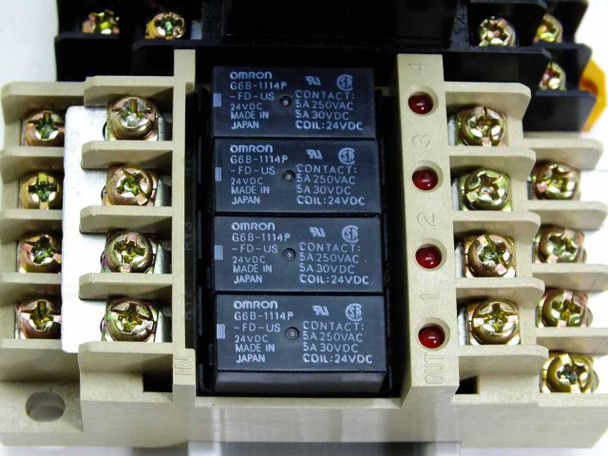

  • Omron G6B-1114P relays in PYFO8A sockets close-up showing labels: 24VDC coil, 5A 250VAC contact rating, Made in Japan

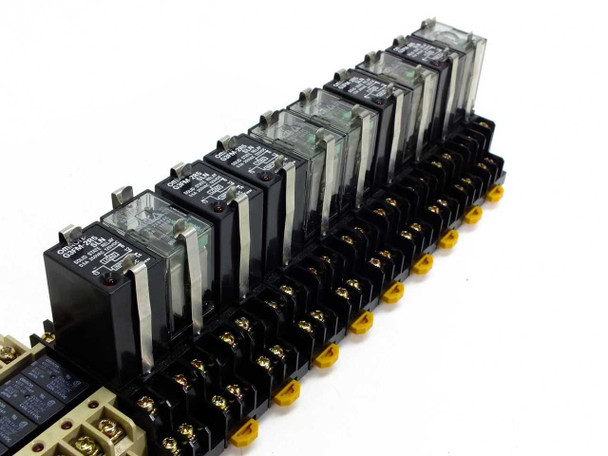

  • Omron G3FM-2R5 and G6B-1114P relay assembly on DIN rail – side angle view showing full row of relays in sockets

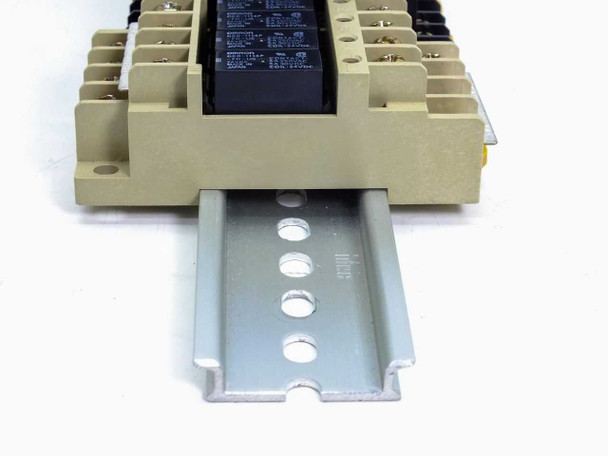

  • Underside of relay assembly showing metal DIN rail slider mounting rail and relay socket terminal connections
$65.00
Was: $125.00
Current Stock: 1

Sold Out

Description

Omron G3FM-2R5 SLN Solid State Relay & G6B-1114P HH52PW-L PYFO8A DIN Rail

This is a used relay assembly mounted on DIN rail, combining solid state relays (SSR) with electromechanical relays for industrial control applications. The assembly switches AC and DC loads at specified voltage and current ratings.

Specifications & What's Included

  • 5x Omron G3FM-2R5 Solid State Relays (24VDC input, 250VAC/125VDC output)
  • 5x Fuji Electric HH52PW-L relays
  • 4x Omron G6B-1114P relays
  • 10x PYFO8A relay sockets
  • Load ratings: 0.5A continuous; 5A contact rating at 250VAC or 30VDC
  • DIN rail mount form factor
  • Made in Japan

Applications

Solid state relays are used in industrial automation, HVAC systems, process control, and telecommunications equipment for switching high-voltage loads with low-power DC control signals. This mixed assembly is typical in legacy industrial control panels and telecom switching systems where both SSR and electromechanical relay functions are required. Compatible with systems using PYFO8A socket bases and standard 24VDC control circuits.

Condition: Used
This Omron G3FM-2R5 SLN solid state relay and G6B-1114P relay assembly has been inspected and is in good used condition. All relays are seated in their sockets and the DIN rail slider is intact. The components show normal light wear consistent with prior use. No cracked housings, damaged terminals, or missing relays were observed. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Omron
Model:
G3FM-2R5 SLN
MPN:
G3FM-2R5
Type:
Solid State Relay Assembly
SKU:
45676
Condition:
Used – Inspected and Tested
Seller Notes:
Assembly includes 5x G3FM-2R5, 5x HH52PW-L, 10x PYFO8A, 4x G6B-1114P on DIN rail
Country/Region of Manufacture:
Japan
Form Factor:
DIN Rail Mount
Relay Type:
Solid State Relay (SSR)
Load Voltage Rating:
250VAC / 125VDC
Load Current Rating:
0.5A
Coil Voltage:
24VDC
Contact Rating:
5A 250VAC, 5A 30VDC
Number of Relays:
5x G3FM-2R5 SSR + 4x G6B-1114P
Socket / Base Model:
PYFO8A (Omron)
Compatible Relay Socket:
PYFO8A
Secondary Components:
5x Fuji Electric HH52PW-L relays
Mounting Type:
DIN Rail
Input Type:
DC Input
Condition Notes:
Omron G3FM-2R5 SLN relay assembly inspected and in good used condition. All relays seated, DIN rail intact, no cracked housings or damaged terminals observed. Normal light wear.
