Norgren Pneumatic Cylinder 200mm Stroke 15mm Shaft 12.25" Length 2" Bore

Norgren Pneumatic Cylinder 200mm Stroke 15mm Shaft 12.25" Length 2" Bore

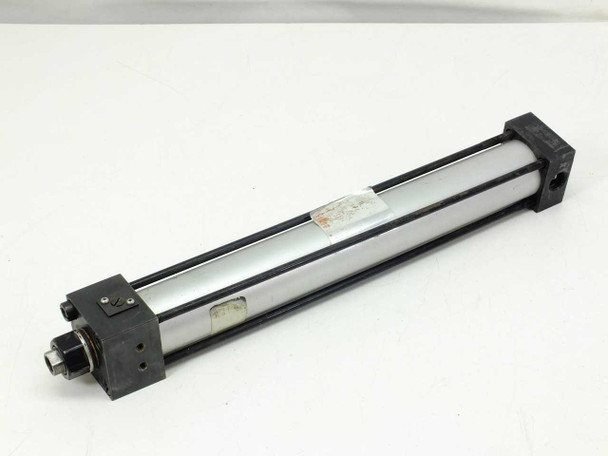

This Norgren pneumatic cylinder features a 200mm stroke and a 15mm diameter rod, housed in a round-body aluminum barrel with machined steel end caps and tie-rod construction. Overall dimensions are approximately 12.25" in length with a 2" barrel diameter. The cylinder was tested with compressed air at our facility and the rod extends and retracts normally. Note that one of the four tie-rod bolts on one end cap is missing; the other three are present and secure.

Specifications & What's Included

• Brand: Norgren
• Type: Pneumatic cylinder, round-body tie-rod style
• Stroke length: 200mm (approx. 7.87")
• Shaft / rod diameter: 15mm
• Barrel bore diameter: approx. 2" (50mm)
• Overall length: 12.25"
• Body material: Aluminum barrel with black steel end caps
• Rod end: Male-threaded rod with hex jam nut
• Actuation: Pneumatic (compressed air)

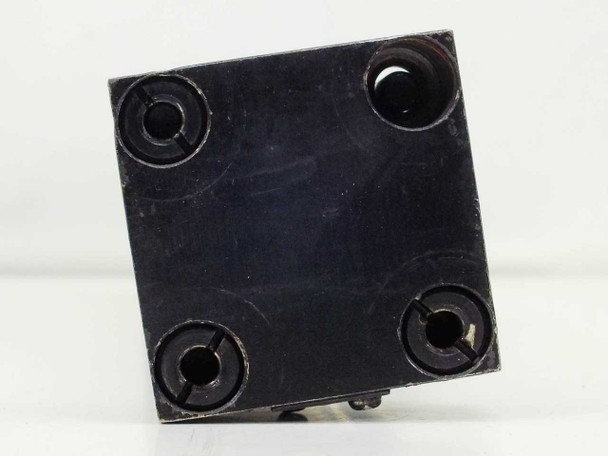

• Defect noted: One of four tie-rod bolts missing on one end cap — visible in photos

Applications

Norgren pneumatic cylinders are standard linear actuators used across a wide range of industrial automation and manufacturing applications. They convert compressed air pressure into controlled linear motion — pushing, pulling, clamping, lifting, or positioning workpieces in automated machinery, assembly lines, packaging equipment, and material handling systems. Norgren is a well-established British manufacturer of pneumatic and fluid control components, and their round-body tie-rod cylinders are a common workhorse format found in production machinery worldwide. A cylinder in this stroke and bore range is typically used for medium-force clamping or positioning tasks. Replacement cylinders of this type are frequently sought for maintenance and repair of existing automated equipment where the original unit has worn out.
