Pneumatic Cylinder 9" Stroke 5/8" Bore Shaft 1/2" Threaded Rod 1/2" NPT Ports

Pneumatic Cylinder 9" Stroke 5/8" Bore Shaft 1/2" Threaded Rod 1/2" NPT Ports

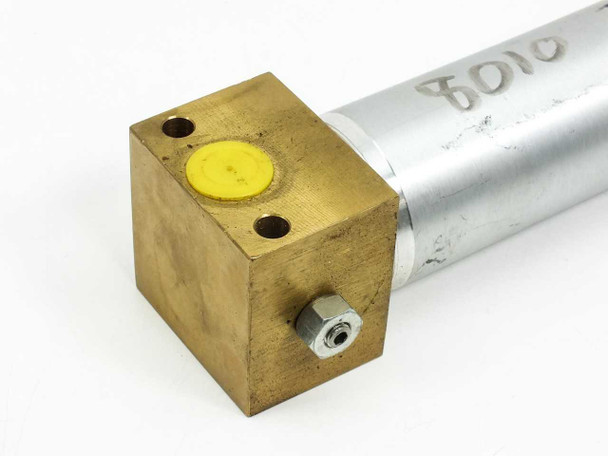

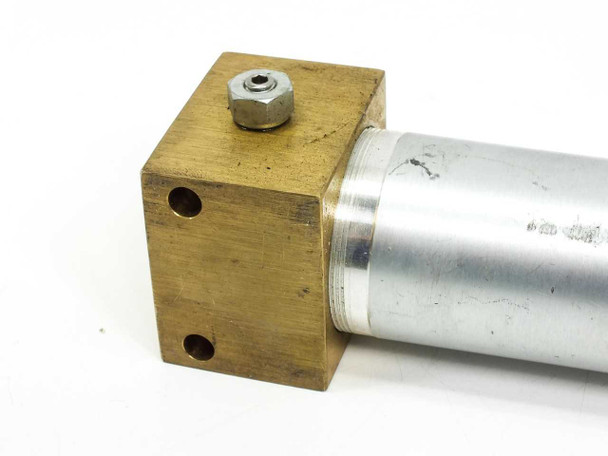

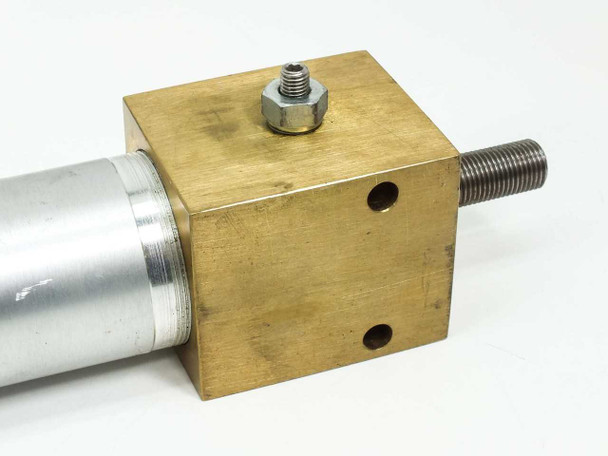

This is an unbranded pneumatic cylinder with a 9-inch stroke, featuring a 5/8-inch diameter aluminum barrel shaft with a 1/2-inch threaded rod end and 1/2-inch NPT air ports on both brass end caps. The unit is constructed with an aluminum cylinder body and solid brass end blocks, a combination commonly used in custom and OEM pneumatic systems where corrosion resistance and durability are needed.

Specifications & What's Included

• Type: Pneumatic cylinder / linear actuator
• Stroke length: 9 in
• Shaft diameter: 5/8 in
• Threaded rod end: 1/2 in thread
• Port size: 1/2 in NPT (intake and exhaust)
• Overall length (retracted): approximately 14 in
• Body cross-section: approximately 2 in x 2 in
• Barrel material: aluminum
• End cap material: brass
• Mounting: threaded rod end and end-block mount holes on both caps
• Unit only — no fittings, hoses, or hardware included

Applications

Pneumatic cylinders of this style are widely used in industrial automation, machine building, and custom fixturing applications where linear motion is needed from a compressed air source. The brass end-cap construction makes this type particularly well-suited for environments where standard aluminum or cast-iron end caps might corrode, including food processing equipment, certain chemical handling setups, and marine or outdoor machinery. The threaded rod end allows direct mechanical attachment to linkages, clamps, presses, gates, and actuated mechanisms. Units of this size and stroke are commonly found in material handling systems, pneumatic presses, clamping fixtures, and custom OEM machinery across manufacturing and industrial settings. The 1/2-inch NPT ports are a standard thread size that accommodates readily available pneumatic fittings and manifold connections.
