Nordiko 102185 Impedance Detector RF Sputter Target 7/16 DIN BNC Sputtering
RF impedance detector module designed for in-line monitoring and adjustment of RF power delivery in PVD sputtering systems. Connects between RF supply and sputter target to measure magnitude and phase of RF impedance.
Specifications & What's Included
- Brand: Nordiko
- Model: 102185
- Type: RF Impedance Detector
- Input: 7/16 DIN Female (High-Power RF)
- Outputs: BNC Coaxial (Magnitude/Phase) and Copper Bar (Target Connection)
- Adjustment Controls: Magnitude and Phase
- Manufacture: United Kingdom
Applications
Used in Nordiko RF sputtering systems for real-time impedance monitoring during thin-film deposition. Provides magnitude and phase feedback to optimize RF coupling efficiency between power supply and target. Typical installation places this module inline within the RF delivery path of laboratory and production-scale PVD systems.
Condition: Used

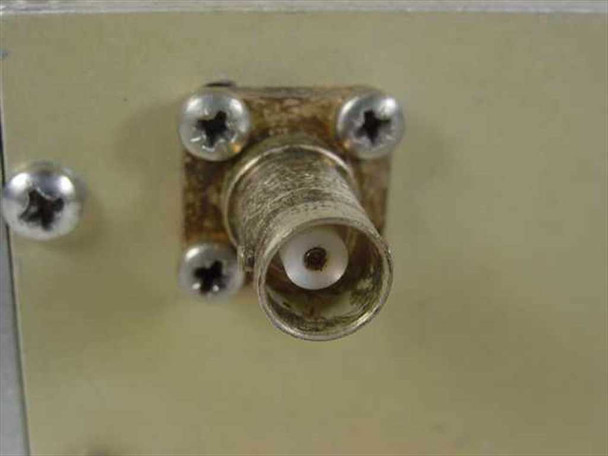

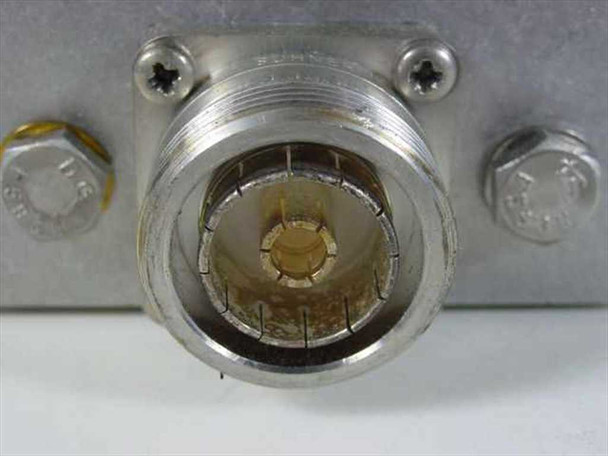

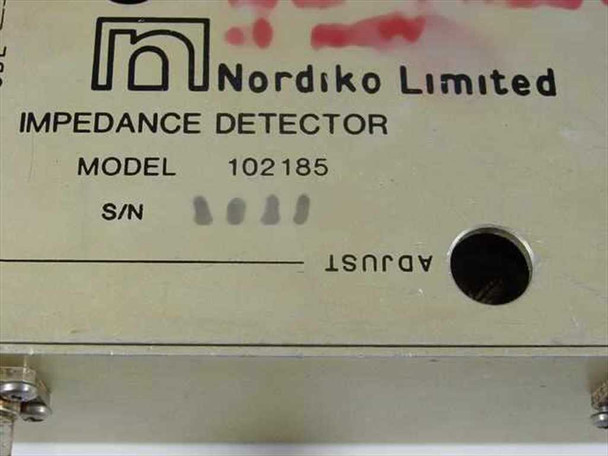

This Nordiko 102185 Impedance Detector came out of a Nordiko sputtering system where it was kept as a backroom spare. The unit has not been powered or tested at our facility. The aluminum housing shows general handling wear and the handwritten red notation visible on the top panel. The 7/16 DIN female RF input connector shows wear and oxidation on the contact fingers. The BNC coaxial output connector shows surface oxidation and corrosion on the mounting hardware. The copper bar sputter target output has patina consistent with prior use. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
