Netstal Sycap Graphtrack Front Panel 110.240.9366 Trackball Keyboard 989.451.001

Netstal Sycap Graphtrack Front Panel 110.240.9366 Trackball Keyboard 989.451.001

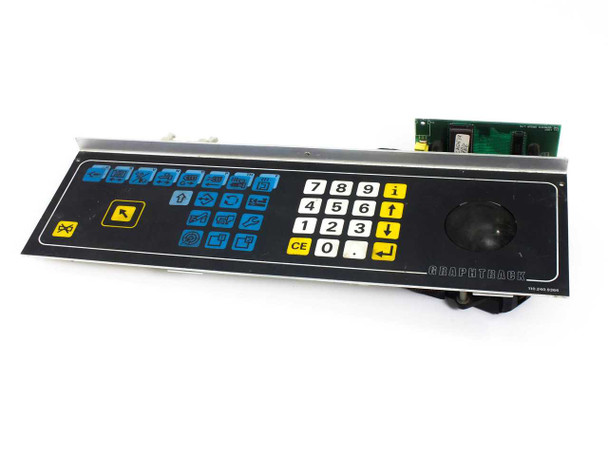

This is the Graphtrack operator front panel assembly (P/N 110.240.9366) from a Netstal Sycap Discjet 600/110 injection molding system. The panel integrates a membrane function-key keyboard with blue icon keys for machine operations, a numeric keypad, and a Marcus trackball (model RB2-811B-5087, P/N 989.451.001) — serving as the primary human-machine interface for the Sycap control system. The PCB keyboard matrix board is attached to the rear of the panel.

Specifications & What's Included

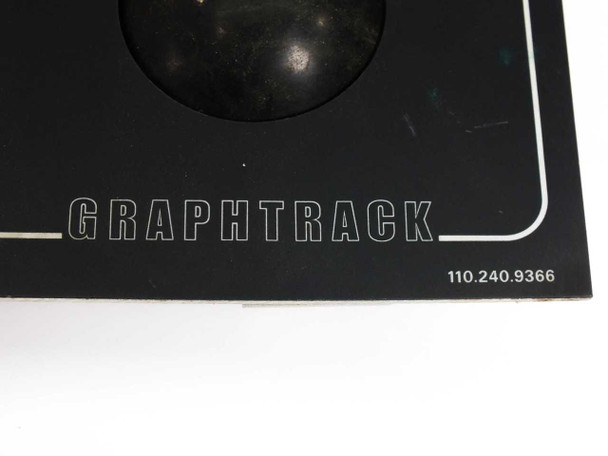

• Part Number: 110.240.9366
• Assembly: Graphtrack operator front panel
• Keyboard type: Membrane — blue icon/function keys (approx. 20 function keys) + numeric keypad

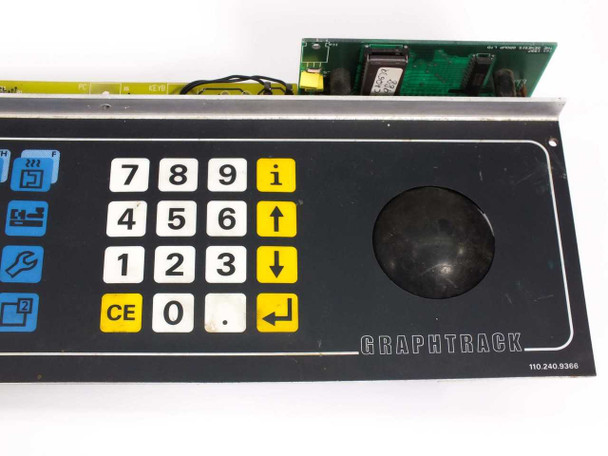

• Numeric keypad: 0–9, CE, decimal, enter, and directional (up/down) keys

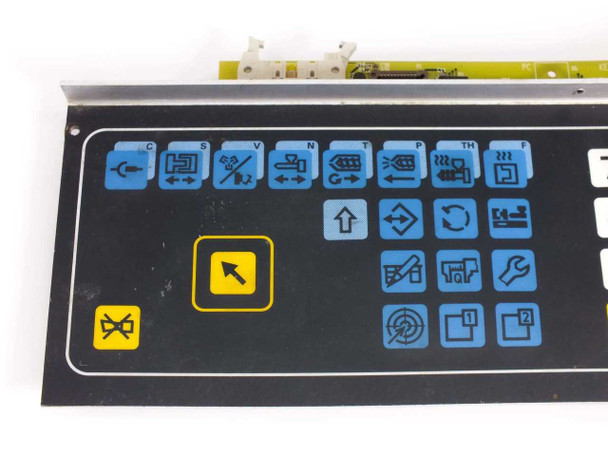

• Function key zones labeled: C, S, V, N, T, P, TH, F (machine parameter zones visible on overlay)
• Trackball assembly included: Marcus model RB2-811B-5087, P/N 989.451.001

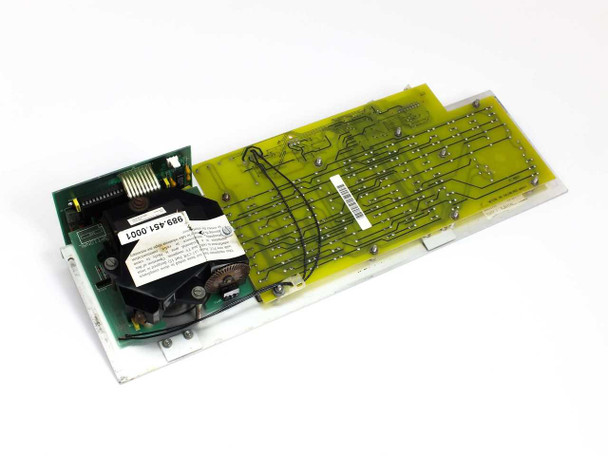

• Rear PCB keyboard matrix board included
• Compatible system: Netstal Sycap Discjet 600/110 injection molder
• Compatible controller reference: Netstal TAS 110.240.9825
• Form factor: Panel-mount, elongated horizontal profile with aluminum backing rail
• Manufacturer: Netstal (Switzerland)

Applications

The Netstal Sycap control system was the proprietary machine controller used on Netstal's Discjet and related injection molding machines, a Swiss-engineered line known for high-precision, high-speed molding of optical media substrates and technical parts. The Graphtrack front panel is the operator's primary interface for entering process parameters — temperatures, pressures, speeds, and cycle timing — and for navigating the controller's menu-driven interface via the trackball. This type of panel is essential for facilities still running Netstal Sycap-controlled machines, where sourcing original replacement operator interfaces can be difficult. The function-key zones (C, S, V, N, T, P, TH, F) correspond to core injection molding process parameters: clamping, screw speed, velocity, nozzle, temperature, pressure, holding, and fill. Replacement panels like this are sought by maintenance teams keeping legacy Netstal injection molding lines operational.
