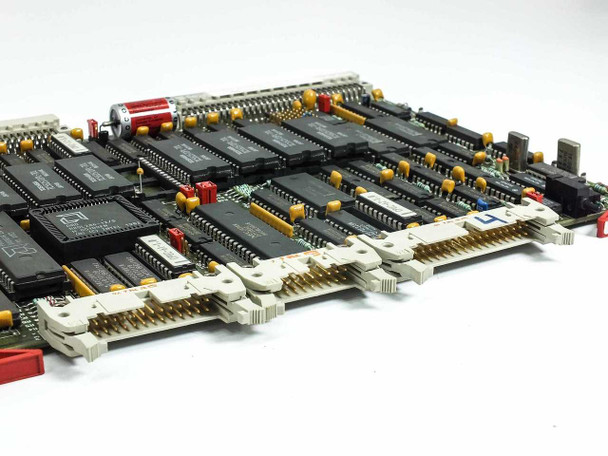

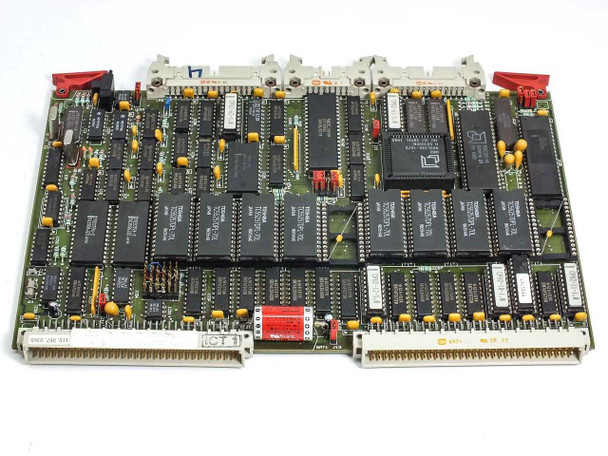

This is the Netstal Sycap CPU 286 PRINT V controller board, part number 100.240.7771, designed for use in the Netstal Sycap Temp Controller system fitted to the DiskJet (Discjet) 600/110 Injection Molder. It is a card-edge expansion board built around an Intel 80286-class CPU and is the central processing unit of the Sycap temperature control subsystem within that machine. The board was pulled directly from a Netstal Discjet 600/110 Injection Molder that was in working operation.

Specifications & What's Included

• Manufacturer: Netstal
• Primary Part Number: 100.240.7771
• Alternate Part Numbers: 110.240.7771, 110.240.7771g, 110.240.7771h, CPU2 110.240.7771g/05, 110.067.9368
• Board Designation: Sycap CPU 286 PRINT V
• Processor Architecture: Intel 80286 (286)

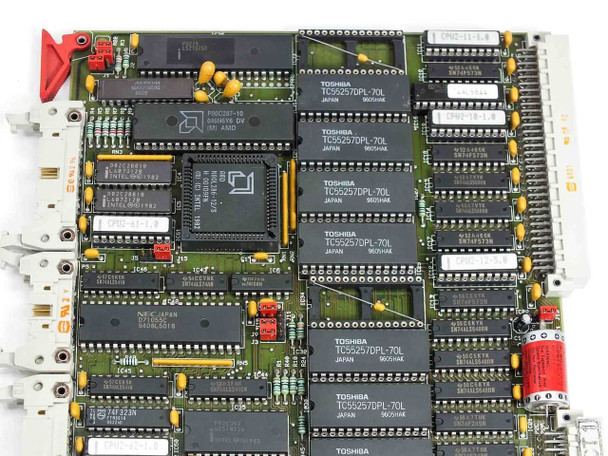

• Main CPU IC: AMD 80286-class processor (visible on board)
• Memory ICs: Multiple Toshiba TC55257DPL-70L 32K×8 SRAM chips (70ns)

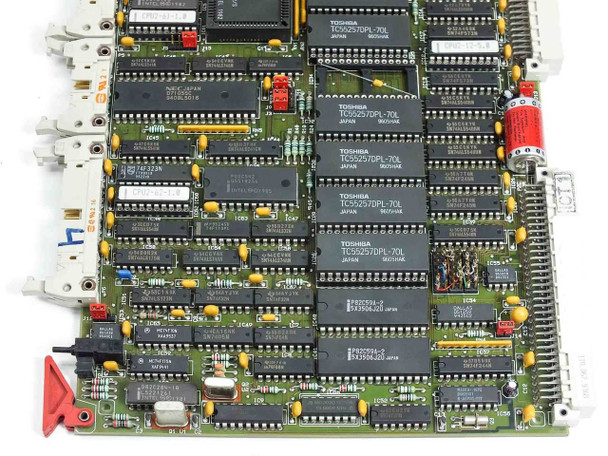

• Additional ICs: NEC Japan logic ICs, Fujitsu FR2531-2 chips
• Connector P5: W807 Keyboard interface
• Connector P6: W800 Printer interface
• Edge Interface: Dual parallel card-edge connectors
• Form Factor: PCB card/module with red retention tabs at corners
• Compatible System: Netstal Sycap DiskJet / Discjet 600/110 Injection Molder
• Parent System: Netstal Sycap Temp Controller
• Included: Board only — no cables or mounting hardware
