Description
NEC PN-2DLCC Dterm II Digital Station Console Card NEAX 2000 IVS PBX
The NEC PN-2DLCC is a Dterm II Digital Station Terminal Console Card designed for use in the NEC NEAX 2000 Integrated Voice Server (IVS) PBX system. This card provides digital station termination and console functionality within the NEAX 2000 chassis, enabling digital Dterm II telephone and attendant console connectivity for the system.
Specifications & What's Included
- Manufacturer: NEC
- Model / Part Number: PN-2DLCC (also referenced as 2DLCC)
- Type: Digital Station Terminal Console Card
- Compatible System: NEC NEAX 2000 Integrated Voice Server (IVS)
- Product Line: Dterm II
- Form Factor: PCB expansion card / module

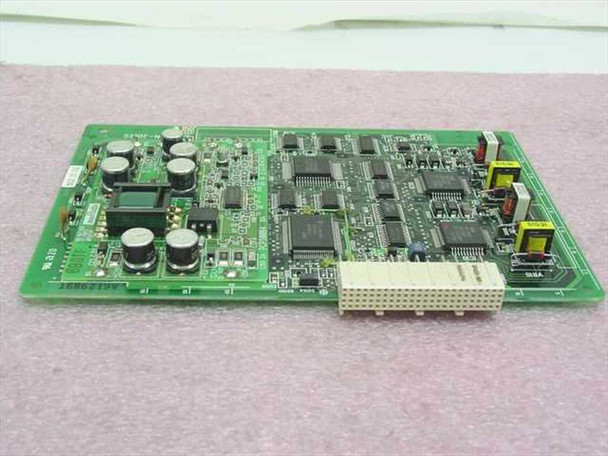

- Board features multiple IC chips, capacitors, and transformer components visible on PCB
- Large multi-pin edge connector for chassis backplane interface
- Voltage test points labeled on PCB (-5VA, -48VB, 0VB)
- Includes: Card only — no chassis, no cables
Applications
The NEC NEAX 2000 is a modular digital PBX and integrated voice server platform that NEC produced for mid-sized enterprise and call center deployments. The NEAX 2000 IVS combined traditional PBX switching with integrated voice messaging, auto-attendant, and ACD capabilities in a single chassis. Cards such as the PN-2DLCC slot into the NEAX 2000 chassis to provide digital station line terminations, connecting NEC Dterm II series digital telephones and attendant consoles directly to the switch fabric. The NEAX 2000 platform was widely deployed in corporate offices, hotels, and call centers through the 1990s and into the 2000s. Replacement and spare cards like this one continue to be sought by organizations still running NEAX 2000 systems, as well as telecom technicians supporting legacy NEC PBX installations.
This NEC PN-2DLCC Dterm II Digital Station Console Card has been inspected and is in good used condition. It was pulled from a working NEAX 2000 Integrated Voice Server (IVS) system. The PCB shows normal handling and shelf wear consistent with prior installation use; no visible damage, broken traces, or burnt components are apparent. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
NEC |
Model: |
PN-2DLCC |
MPN: |
PN-2DLCC |
Secondary Model: |
2DLCC |
SKU: |
24262 |
Type: |
Digital Station Terminal Console Card |
Compatible With: |
NEC NEAX 2000 Integrated Voice Server (IVS) |
Compatible With 2: |
NEC NEAX 2000 PBX |
System: |
NEC NEAX 2000 IVS |
Product Line: |
Dterm II |
Form Factor: |
Card / Module (PCB) |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Card only; pulled from a working NEAX 2000 IVS system |
Country/Region of Manufacture: |
Japan |
Condition Notes: |
NEC PN-2DLCC Dterm II Console Card in good used condition. Pulled from a working NEAX 2000 IVS system. Inspected; no visible damage. Card only. Please contact us with any questions. |
