NEC 24DTA-A PN-24DTA-A Digital Trunk Interface Card NEAX 2000 IVS PBX Board

(No reviews yet) Write a Review
SKU:
24264
MPN:
24DTA-A
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
2.00 LBS
Shipping:
Calculated at Checkout

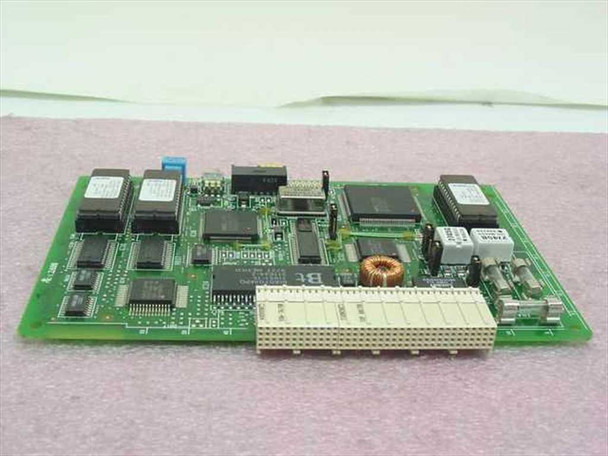

  • NEC 24DTA-A Digital Trunk Interface Card – top-side component view showing ICs, toroidal inductor, and edge connector
  • NEC 24DTA-A PN-24DTA-A PBX board – angled top view showing Bt-marked IC, AMD memory chips, and PCB label
  • NEC 24DTA-A board close-up – PN-24DTA-A silk-screen label, NEC-marked SC2122 ICs, and AMD AM27C512 EPROMs dated 1986
$20.00
Was: $40.00
Current Stock: 1

Sold Out

Description

NEC 24DTA-A PN-24DTA-A Digital Trunk Interface Card NEAX 2000 IVS PBX Board

Digital Trunk Interface Card designed for the NEC NEAX 2000 IVS PBX system. This card module provides digital trunk connectivity for voice and data communication on enterprise telephone systems.

Specifications & What's Included

  • Brand: NEC
  • Model: 24DTA-A (MPN: PN-24DTA-A)
  • Type: Digital Trunk Interface Card
  • Compatible System: NEC NEAX 2000 IVS (Integrated Voice Server)
  • Form Factor: Card/Module
  • Manufactured: Japan
  • Board only – no cables or brackets included

Applications

The 24DTA-A is a digital trunk interface card used in NEC NEAX 2000 IVS telecommunications systems. This card type enables connection to digital telephone networks and provides trunk line interfaces for call routing and system connectivity. The NEAX 2000 IVS platform was deployed in mid-market and enterprise PBX installations where digital trunk connectivity was required for ISDN, T1, or similar digital network interfaces.

Condition: Used
This NEC 24DTA-A Digital Trunk Interface Card was pulled from a working NEAX 2000 IVS system where it was actively in use and functional. The board has been inspected and is in good used condition. Typical light wear consistent with service use is present, but there is no visible physical damage to the PCB, components, or edge connector. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
NEC
Model:
24DTA-A
MPN:
PN-24DTA-A
Type:
Digital Trunk Interface Card
SKU:
24264
Compatible With:
NEC NEAX 2000 IVS (Integrated Voice Server)
Form Factor:
Card / Module
Condition:
Used – Pulled from Working Environment
System:
NEC NEAX 2000 IVS
Interface Type:
Digital Trunk
Country/Region of Manufacture:
Japan
Seller Notes:
Board only. Pulled from a working NEAX 2000 IVS system.
Condition Notes:
NEC 24DTA-A Digital Trunk Interface Card pulled from a working NEAX 2000 IVS system. Inspected and in good used condition. Board shows normal service wear; no visible damage to PCB or edge connector.
View AllClose

Related Products

Related Products

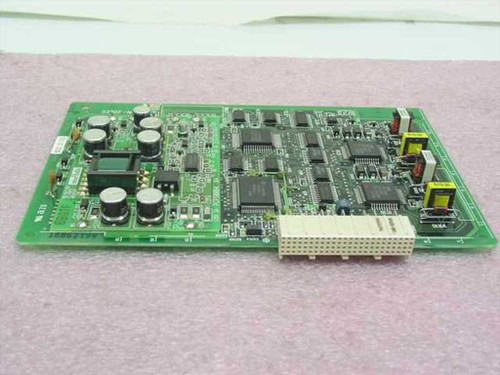

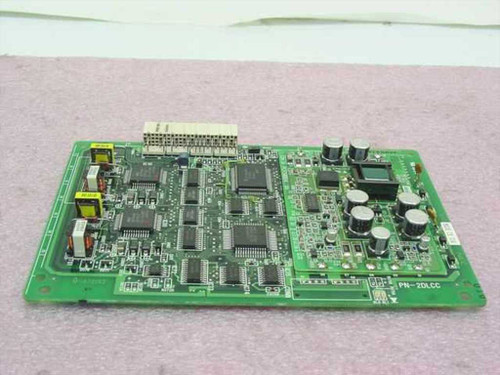

NEC PN-2DLCC Dterm II Digital Station Console Card – top-side component view showing ICs, capacitors, and edge connector NEC PN-2DLCC Dterm II Console Card – reverse angle showing full PCB layout with PN-2DLCC designation visible
Add to Cart
Quick view

NEC PN-2DLCC Dterm II Digital Station Console Card NEAX 2000 IVS PBX

NEC

$65.00
Was: $125.00
NEC PN-2DLCC Dterm II Digital Station Console Card NEAX 2000 IVS PBXThe NEC PN-2DLCC is a Dterm II Digital Station Terminal Console Card designed for use in the NEC NEAX 2000 Integrated Voice Server...
24262
SKU:
24262
Availability:
Usually ships within 1–2 business days.
Weight:
2.00 LBS
Brand:
NEC
Model:
PN-2DLCC
MPN:
PN-2DLCC
Secondary Model:
2DLCC
SKU:
24262
Type:
Digital Station Terminal Console Card
Compatible With:
NEC NEAX 2000 Integrated Voice Server (IVS)
Compatible With 2:
NEC NEAX 2000 PBX
System:
NEC NEAX 2000 IVS
Product Line:
Dterm II
Form Factor:
Card / Module (PCB)
Condition:
Used – Pulled from Working Environment
Seller Notes:
Card only; pulled from a working NEAX 2000 IVS system
Country/Region of Manufacture:
Japan
Condition Notes:
NEC PN-2DLCC Dterm II Console Card in good used condition. Pulled from a working NEAX 2000 IVS system. Inspected; no visible damage. Card only. Please contact us with any questions.

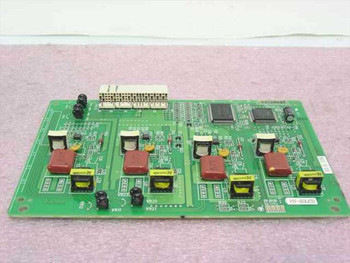

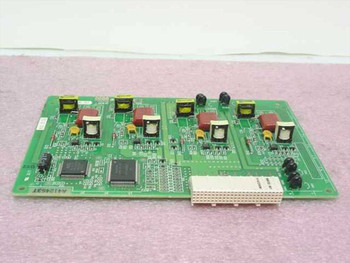

NEC 4DLCD PN-4DLCD Digital Line Circuit Card – component side view showing transformers, capacitors, and IC chips NEC 4DLCD PN-4DLCD Digital Line Circuit Card – reverse side view showing edge connector and additional components
