NEC PN-DK00 External Relay Card NEAX 2000 IVS PBX Telephone System Module

(No reviews yet) Write a Review
SKU:
24257
MPN:
DK00
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
5.00 LBS
Shipping:
Calculated at Checkout

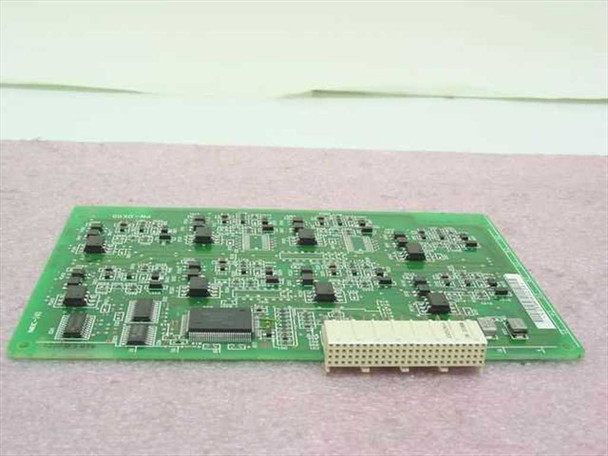

  • NEC PN-DK00 External Relay Card – top component side view showing PCB layout and multi-pin connector
  • NEC PN-DK00 External Relay Card – reverse angle top view showing main ICs and edge connector detail
  • NEC PN-DK00 External Relay Card – close-up of PCB silkscreen label showing PN-DK00 part number and NEC markings
$60.00
Was: $125.00
Current Stock: 1

Sold Out

Description

NEC PN-DK00 External Relay Card NEAX 2000 IVS PBX Telephone System Module

External relay card module designed for the NEC NEAX 2000 Integrated Voice Server (IVS) PBX telephone system. This card interfaces with the main system via internal multi-pin board connector to provide relay functionality for call control and switching operations.

Specifications & What's Included

  • Brand: NEC
  • Model: PN-DK00
  • Type: External Relay Card / Module
  • Compatible System: NEC NEAX 2000 IVS
  • Interface: Internal board connector (multi-pin)
  • Manufactured: Japan
  • Condition: Used, pulled from working environment

Applications

The PN-DK00 relay card was used in NEC NEAX 2000 IVS installations to extend switching and relay control capabilities for enterprise PBX systems. This module type typically handles external relay circuits for call routing, line control, and system signaling within medium to large telecommunications installations. Compatible with NEAX 2000 IVS platforms deployed throughout the 1990s and 2000s.

Condition: Used
This NEC PN-DK00 External Relay Card was pulled from a working NEC NEAX 2000 Integrated Voice Server (IVS) system. It has been inspected and appears to be in good condition. The PCB is clean with no visible damage, cracked components, or broken traces. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
NEC
Model:
PN-DK00
MPN:
PN-DK00
Type:
External Relay Card
SKU:
24257
Compatible With:
NEC NEAX 2000 IVS
Form Factor:
Card / Module
System:
NEC NEAX 2000 Integrated Voice Server (IVS)
Interface:
Internal board connector (multi-pin)
Condition:
Used – Pulled from Working Environment
Seller Notes:
Card only; pulled from NEAX 2000 IVS working system
Country/Region of Manufacture:
Japan
Condition Notes:
NEC PN-DK00 External Relay Card pulled from a working NEAX 2000 IVS system. Inspected and in good used condition. PCB is clean with no visible damage.
