Meters
Meters are units of measurement used to quantify the length of an object or the distance between two points. They are commonly used in various fields such as physics, engineering, and construction. Meters are part of the metric system and are equivalent to 100 centimeters or 3.28 feet. They provide a precise and standardized way to express distances, making it easier to communicate and compare measurements accurately. Whether measuring the length of a room, the height of a building, or the distance between cities, meters play a crucial role in ensuring uniformity and consistency in measurement across different disciplines.
-

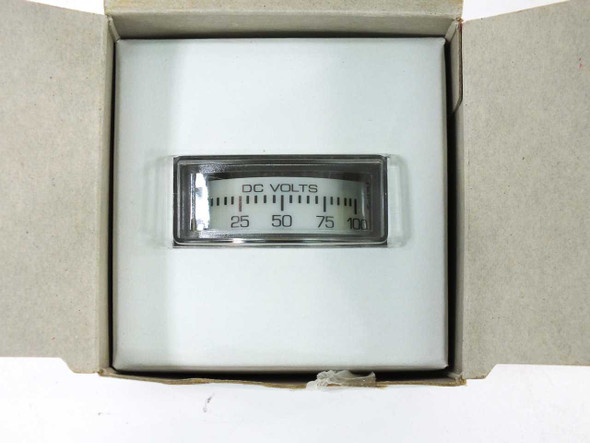

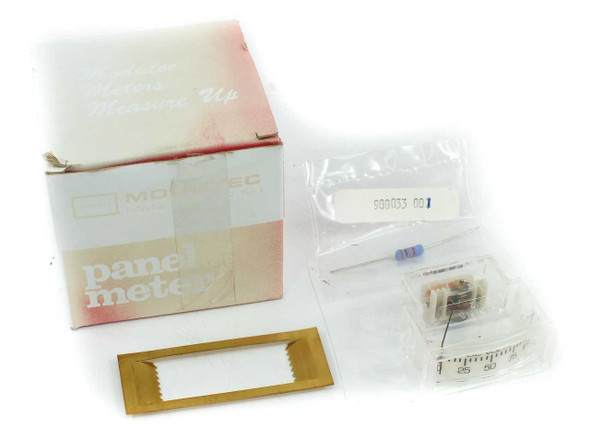

Modutec ME DVV 100 U Panel Meter DC Voltmeter 0-100V 1.8x0.75 Slot 20k Ohm
Modutec
$22.00Was: $40.00Modutec ME DVV 100 U Panel Meter DC Voltmeter 0-100V 1.8x0.75 Slot 20k OhmAnalog DC panel voltmeter for measuring voltages from 0 to 100V DC. Mounts directly into standard 1.8 x 0.75 inch panel slots with 1.75 inches of depth behind the panel...33975- SKU:
- 33975
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 1.00 LBS
- Brand:
- Modutec
- Model:
- ME DVV 100 U
- MPN:
- 916 069-001
- Type:
- Analog DC Panel Voltmeter
- SKU:
- 33975
- Voltage Range:
- 0-100V DC
- Full Scale Voltage:
- 100V DC
- Movement Full Scale Current:
- 4.7 mA
- Movement Full Scale Voltage:
- 4.73V
- Movement Resistance:
- 1003 ohm
- Series Scaling Resistor:
- 20k ohm (included)
- Mounting Slot Dimensions:
- 1.8 in x 0.75 in
- Depth Behind Panel:
- 1.75 in
- Scale:
- DC Volts, 0-25-50-75-100
- Seller Notes:
- Includes 20k ohm series scaling resistor and mounting gasket
- Condition:
- New
- Country/Region of Manufacture:
- United States
- Form Factor:
- Panel Mount
- Condition Notes:
- Modutec ME DVV 100 U DC panel voltmeter, new old stock. Meter, 20k ohm resistor, and mounting gasket included and appear unused. Box shows shelf wear. May have been stored long-term or outside original packaging.
$22.00Was: $40.00 -
Q.V.S. Inc MOD-450R AC DC Ohm Meter Movement 2012 Ohm 4.5" Panel Round
Q.V.S. Inc
$32.00Was: $60.00Q.V.S. Inc MOD-450R AC DC Ohm Meter Movement 2012 Ohm 4.5" Panel RoundThe Q.V.S. Inc MOD-450R is an analog panel meter movement calibrated to measure resistance on both AC and DC circuits. It features a 4.5-inch round housing designed for flush panel...33811- SKU:
- 33811
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 2.00 LBS
- Brand:
- Q.V.S. Inc
- Model:
- MOD-450R
- MPN:
- MOD-450R
- Secondary Model:
- LP-901
- SKU:
- 33811
- Type:
- Analog Panel Meter Movement
- Measurement Type:
- Resistance (Ohms)
- Current Type:
- AC & DC
- Movement Resistance:
- 2012 Ohm
- Full Scale:
- 60
- Panel Diameter:
- 4.5 inches
- Panel Shape:
- Round
- Form Factor:
- Panel Mount
- Scale:
- Ohms — multi-range (0–∞, multiple arcs)
- Connection Type:
- Solder terminals (rear-mounted, 2 terminals)
- Condition:
- Used – Inspected
- Seller Notes:
- Meter movement only; no leads or external hardware included.
- Country/Region of Manufacture:
- United States
- Condition Notes:
- Q.V.S. Inc MOD-450R AC/DC Ohm Meter Movement. Inspected and in good condition. Clean face, legible scale, needle intact, rear terminals present. Normal handling wear on housing.
$32.00Was: $60.00 -
Burlington 331 Panel Meter 100UA Full Scale Galvanometer 1844 Ohm Resistance
Burlington
$35.00Was: $70.00Burlington 331 Panel Meter 100UA Full Scale Galvanometer 1844 Ohm ResistanceThe Burlington Model 331 is a round analog panel meter designed as a galvanometer-type microammeter with a full-scale deflection of 100 microamperes (100 UA) and a coil...32914- SKU:
- 32914
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 2.00 LBS
- Brand:
- Burlington
- Model:
- 331
- MPN:
- 331
- Type:
- Analog Panel Meter / Galvanometer
- SKU:
- 32914
- Full Scale Deflection:
- 100 UA (100 Microamperes)
- Coil Resistance:
- 1844 Ohm
- Measurement Type:
- DC Current (Microamperes)
- Scale Range:
- -7.5 to +7.5 / -1.0 to +1.0 dual scale
- Mount Type:
- Panel Mount
- Form Factor:
- Round Panel Mount
- Condition:
- Used – Pulled from Working Environment
- Country/Region of Manufacture:
- United States
- Seller Notes:
- Unit only; no accessories included.
- Condition Notes:
- Burlington 331 panel meter in good used condition. Pulled from a working environment. Dial face clean and legible; exterior housing shows surface rust and oxidation — cosmetic only. Please contact us with any questions.
$35.00Was: $70.00 -
Flex-Core VT-120A Voltage Transducer 0-150V DC 0-1mA AC Input Fixed Mount
Flex-Core
$75.00Was: $150.00Flex-Core VT-120A Voltage Transducer 0-150V DC 0-1mA AC Input Fixed MountThe Flex-Core VT-120A is a DC voltage transducer that accepts an AC input signal and converts it to a proportional DC milliamp output for use in monitoring and control systems...31919- SKU:
- 31919
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 2.00 LBS
- Brand:
- Flex-Core
- Model:
- VT-120A
- MPN:
- VT-120A
- Type:
- Voltage Transducer
- SKU:
- 31919
- Seller Notes:
- Includes fixed mounting plate. Unit only — no additional accessories.
- Country/Region of Manufacture:
- United States
- Condition:
- Used – Pulled from Working Environment
- Voltage Range:
- 0-150V DC
- Output Signal:
- 0-1mA (Calibration Output)
- Input Type:
- AC Input
- Power Supply:
- 115 VAC Instrument Power (E Option Only)
- Terminals:
- 6 screw terminals (1-6); AC Input on 1-4
- Calibration:
- 0-1mA = 0-150V
- Adjustment:
- Zero and CAL (calibration) trim pots on top panel
- Mounting:
- Fixed Mounting Plate
- Form Factor:
- Panel / DIN Surface Mount
- Manufacturer:
- Flexcore Div., Morlan & Associates Inc., Worthington OH
- Application:
- DC Voltage Monitoring, Signal Conditioning, SCADA, Panel Instrumentation
- Condition Notes:
- Flex-Core VT-120A voltage transducer. Inspected and in good used condition. Pulled from a working environment where it was previously in use. Enclosure, terminals, and mounting plate intact. Label legible.
$75.00Was: $150.00 -
Flex-Core VT7-003E AC Voltage Transducer 0-50V 4-20mA Output 115VAC Power
Flex-Core
$85.00Was: $175.00Flex-Core VT7-003E AC Voltage Transducer 0-50V 4-20mA Output 115VAC PowerAC voltage transducer that converts AC voltage input (0–50V range) into a standard 4–20mA DC output signal. Operates on 115VAC single-phase power supplied at terminals 3 and 4...31704- SKU:
- 31704
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 4.00 LBS
- Brand:
- Flex-Core
- Model:
- VT7-003E
- MPN:
- VT7-003E
- Type:
- AC Voltage Transducer
- SKU:
- 31704
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Unit only — no accessories included
- Country/Region of Manufacture:
- United States
- Manufacturer:
- Morlan & Associates, Inc. (Flexcore Div.)
- Measurement Type:
- AC Voltage
- Input Voltage Range:
- 0–50V AC
- Output Signal:
- 4–20mA DC
- Calibration:
- 4-20mA = 0-50V
- Instrument Power Required:
- 115VAC at Terminals 3 & 4
- Phase:
- Single Phase
- Terminal Count:
- 6 screw terminals
- Form Factor:
- DIN-rail / panel-mount enclosure
- Enclosure Color:
- Green
- Controls:
- CAL and ZERO adjustment potentiometers
- Compatible With:
- Industrial monitoring, SCADA, and control panel systems
- Condition Notes:
- Flex-Core VT7-003E AC voltage transducer. Used, inspected, pulled from a working environment. Enclosure intact, terminals and adjustment knobs present. Normal surface wear. Please contact us with any questions.
$85.00Was: $175.00 -
Horiba TD-950 US pH/ORP Meter Panel Mount Benchtop Analyzer AC 90-132V 1994
Horiba
$125.00Was: $250.00Horiba TD-950 US pH/ORP Meter Panel Mount Benchtop Analyzer AC 90-132V 1994The Horiba TD-950 US is a benchtop pH and ORP (Oxidation Reduction Potential) analyzer designed for laboratory and industrial water quality measurement. This panel-mount unit...30910- SKU:
- 30910
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 5.00 LBS
- Brand:
- Horiba
- Model:
- TD-950 US
- MPN:
- TD-950 US
- Type:
- pH/ORP Meter
- SKU:
- 30910
- Measurement Type:
- pH and ORP (Oxidation Reduction Potential)
- Display Type:
- LCD
- Form Factor:
- Panel Mount
- Power Requirements:
- AC 90-132V
- Country/Region of Manufacture:
- Japan
- Manufacture Date:
- March 1994
- Calibration Points:
- 7-point, 4-point, 10-point, and star calibration modes
- Front Panel Controls:
- MODE, Up, Down, ENT (Enter) buttons
- Output:
- Terminal block rear output (G(M) / R / T / T / E terminals)
- Condition:
- Used – Inspected
- Seller Notes:
- Unit only; no probe or accessories observed in photos.
- Condition Notes:
- Horiba TD-950 US pH/ORP Meter. Inspected and in good condition. Light surface scratching on display cover. Housing intact, terminal block complete. Manufactured Japan 1994. Please contact us with any questions.
$125.00Was: $250.00 -

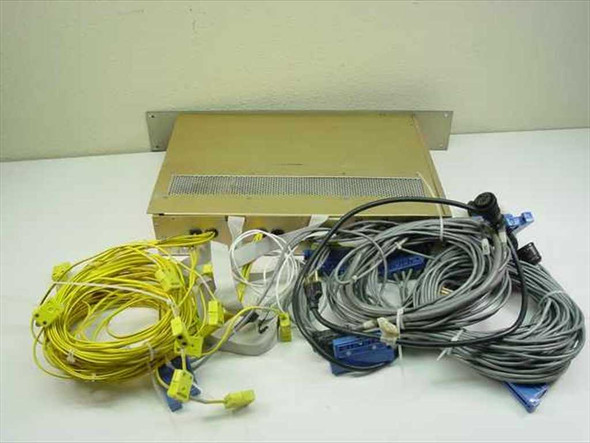

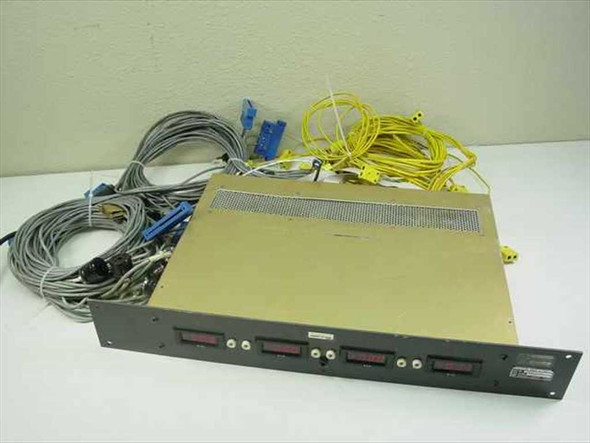

Acculex DP-304 LED Panel Meter Polytron P35 1088 Power Supply Rackmount System
Acculex
$120.00Was: $250.00Acculex DP-304 LED Panel Meter Polytron P35 1088 Power Supply Rackmount SystemRackmount system for industrial process monitoring and temperature measurement. Four-channel LED display unit with integrated power supplies and thermocouple input capability...29596- SKU:
- 29596
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 22.00 LBS
- Brand:
- Acculex
- Model:
- DP-304
- MPN:
- DP-304
- Secondary Model:
- P35 1088 / PM501
- Type:
- LED Panel Meter Rackmount System with Power Supplies
- SKU:
- 29596
- Condition:
- Used – Inspected and in Good Condition
- Seller Notes:
- Includes 4x Acculex DP-304 meters, 3x Polytron P35 1088 PSUs, 1x Computer Products PM501 PSU, thermocouple and sensor cables
- Form Factor:
- Rackmount
- Number of Channels:
- 4
- Display Type:
- LED (7-segment red LED display, X10 multiplier)
- Input Range:
- ±20V
- Connector Type:
- Thermocouple connectors, multi-pin edge connector
- Power Supply Model 1:
- Polytron Devices P35 1088 Regulated Power Supply (x3)
- Power Supply Model 2:
- Computer Products PM501, Output 15V 350mA, Input 115VAC 210mA
- PM501 Output Voltage:
- 15V DC, 350mA
- PM501 Input Voltage:
- 115VAC, 210mA
- Included Cables:
- Thermocouple cables (yellow), sensor/signal cables (gray), power cable
- Country/Region of Manufacture:
- United States
- Compatible With:
- Thermocouple sensors, ±20V analog signal sources
- Measurement Type:
- DC Voltage / Thermocouple Temperature Display
- Application:
- Industrial process monitoring, temperature measurement, lab instrumentation
- Condition Notes:
- Acculex DP-304 LED Panel Meter rackmount system inspected and in good used condition. Includes all 4 DP-304 modules, 3x Polytron P35 1088 PSUs, 1x PM501 PSU, and full cable set. Normal wear.
$120.00Was: $250.00 -
Kessler-Ellis KEP 476666-1 Electromechanical Counter Bell & Howell Driver Board
Kessler-Ellis Products
$25.00Was: $50.00Kessler-Ellis KEP 476666-1 Electromechanical Counter Bell & Howell Driver BoardA 5-digit electromechanical totalizing counter with integrated Bell & Howell footage driver board. Designed for panel mounting in industrial applications requiring mechanical...9623- SKU:
- 9623
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 2.00 LBS
- Brand:
- Kessler-Ellis Products
- Model:
- 476666-1
- MPN:
- 476666-1
- Type:
- Electromechanical Totalizing Counter
- SKU:
- 9623
- Display Type:
- 5-Digit Mechanical Drum / Odometer Style
- Number of Digits:
- 5
- Counting Mode:
- Add / Subtract
- Form Factor:
- Panel Mount
- Driver Board:
- Bell & Howell Footage Driver, Assy 476666-1
- Application:
- Footage / Yardage Counting, Industrial Totalization
- Condition:
- Used – Inspected
- Seller Notes:
- Includes integrated Bell & Howell driver board (Assy 476666-1).
- Country/Region of Manufacture:
- United States
- Condition Notes:
- Kessler-Ellis KEP 476666-1 electromechanical counter. Used condition. Surface rust on rear housing. 5-digit display intact. Bell & Howell driver board present. Not bench-tested — sold as inspected. See photos.
$25.00Was: $50.00
