Description
Matheson 8141 Pressure Transducer 500 PSIG Max 0-5VDC Output DB15 For Parts
Industrial pressure transducer designed to measure gas flow and pressure up to 500 PSIG. Converts pressure readings to 0-5 VDC analog output for monitoring and control systems.
Specifications & What's Included
- Model: Matheson 8141
- Maximum Pressure: 500 PSIG
- Output Signal: 0-5 VDC
- Supply Voltage: +15 VDC / -15 VDC
- Connector: DB15 (15-pin D-sub) with attached cable
- Inlet/Outlet: Compression tube fittings (both ends)
- Manufactured: East Rutherford, NJ, USA
Applications
Matheson transducers of this type are used in industrial gas measurement, pneumatic systems, and process control applications. The 0-5 VDC output interfaces with PLC systems, data acquisition hardware, and analog instrumentation common in manufacturing and laboratory environments. Flow direction is marked on the body for proper installation orientation.
Condition: For Parts or Not Working

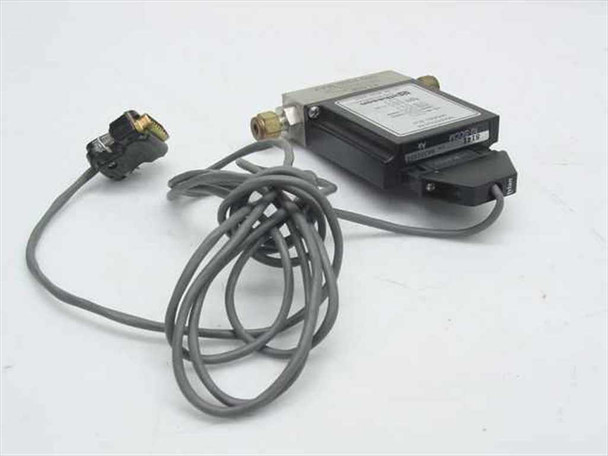

This Matheson Model 8141 Pressure Transducer is untested and is being sold AS-IS for parts or repair. It has not been powered or verified functional at our facility. The unit includes the attached DB15 signal cable. The body and label appear intact and legible; compression fittings are present on both inlet and outlet. Please view our photo set and contact us if you have any questions.
This Matheson Model 8141 Pressure Transducer is untested and is being sold AS-IS for parts or repair. It has not been powered or verified functional at our facility. The unit includes the attached DB15 signal cable. The body and label appear intact and legible; compression fittings are present on both inlet and outlet. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Matheson |
Model: |
8141 |
MPN: |
8141 |
Type: |
Pressure Transducer |
SKU: |
26009 |
Maximum Pressure: |
500 PSIG |
Output Signal: |
0-5 VDC |
Supply Voltage: |
+15 VDC |
Connector Type: |
DB15 (15-pin D-sub) |
Pin Configuration: |

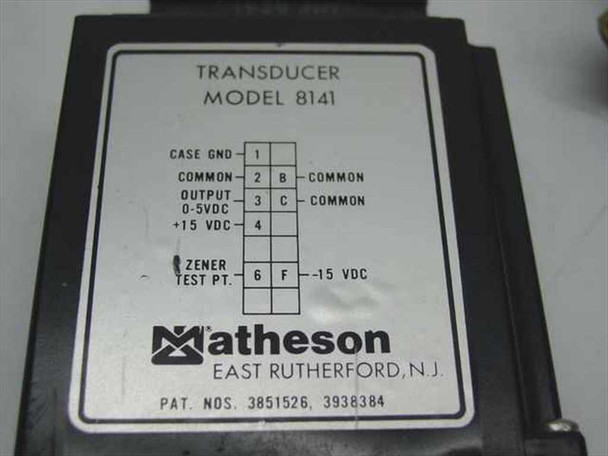

Case GND-1, Common-2/B, Output 0-5VDC-3/C, +15VDC-4, Zener Test Pt-6, -15VDC-F |
Manufacturer Location: |
East Rutherford, NJ |
Patent Numbers: |
3851526, 3938384 |
Flow Direction: |
Marked on body (arrow indicates flow direction) |
Inlet/Outlet Connection: |
Compression tube fittings (both ends) |
Application: |
Gas flow / pressure measurement |
Condition: |
As-Is / For Parts or Not Working |
Seller Notes: |
Includes attached DB15 cable. Untested — sold for parts or repair. |
Country/Region of Manufacture: |
United States |
Condition Notes: |
Matheson 8141 Pressure Transducer — untested, sold AS-IS for parts or repair. Not powered or tested at our facility. Includes attached DB15 cable. Compression fittings present. Please contact us with questions. |
