Schlumberger

Schlumberger Statham PM6142 Differential Pressure Transducer 5000 PSIG ±7.2 PSID

(No reviews yet) Write a Review
SKU:
9627
MPN:
LH 316 55
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
15.00 LBS
Shipping:
Calculated at Checkout

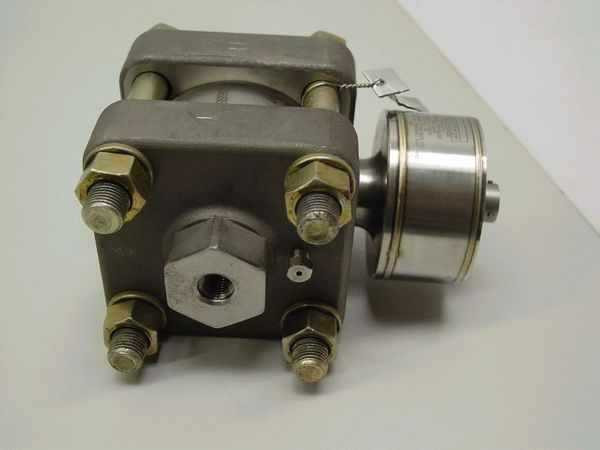

  • Schlumberger Statham PM6142 Differential Pressure Transducer – front-right 3/4 view showing steel body, bolted construction, and circular sensor canister

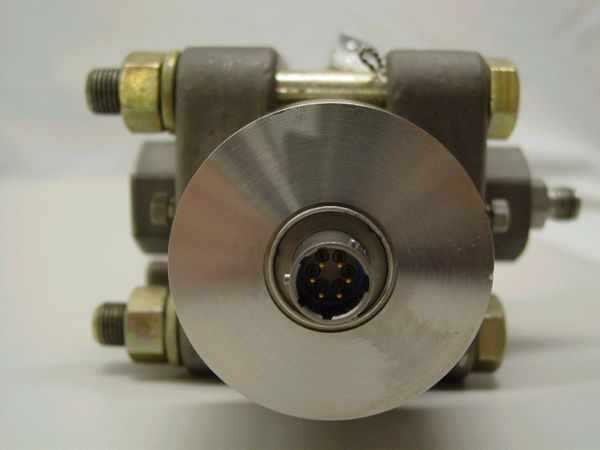

  • Schlumberger Statham PM6142 Differential Pressure Transducer – rear face showing multi-pin circular electrical connector
  • Schlumberger Statham PM6142 – side view with green TTEC calibration label visible on sensor canister and top/bottom NPT port fittings
  • Schlumberger Statham PM6142 – front face showing center hex plug, body bolt hardware, and two blue-dot markings on center diaphragm cap
  • Schlumberger Statham PM6142 – opposite side view showing NPT male port fittings top and bottom, inventory tag attached

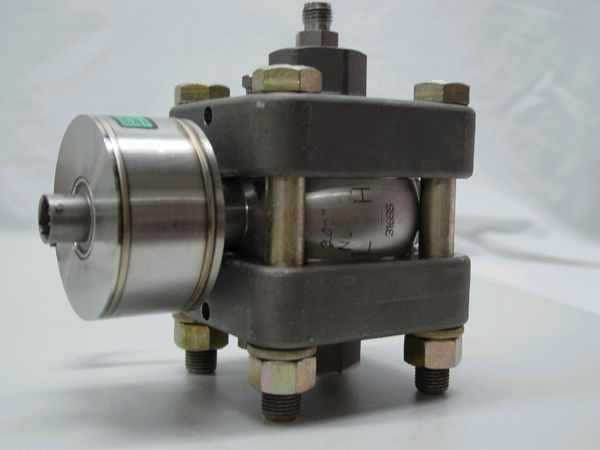

  • Schlumberger Statham PM6142 – 3/4 angled view showing full body assembly, bolted frame, sensor canister with green calibration label

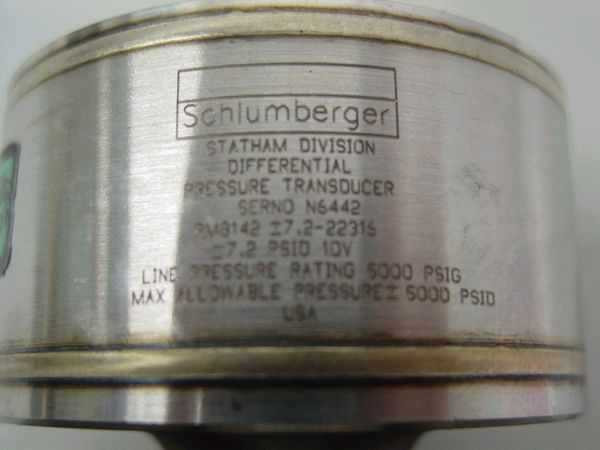

  • Schlumberger Statham PM6142 – close-up of rating plate label: Statham Division, Differential Pressure Transducer, SN N6442, PM6142 ±7.2-22315, ±7.2 PSID 10V, Line Pressure Rating 5000 PSIG, Max Allowable Pressure 5000 PSID, USA
$125.00
Was: $250.00
Current Stock: 1

Sold Out

Description

Schlumberger Statham PM6142 Differential Pressure Transducer 5000 PSIG ±7.2 PSID

Differential pressure transducer for industrial process measurement and hydraulic systems. Measures pressure differential up to ±7.2 PSID with a line pressure rating of 5000 PSIG and outputs a 10V signal.

Specifications & What's Included

  • Model: PM6142 (Statham Division, Schlumberger)
  • Differential Pressure Range: ±7.2 PSID
  • Line Pressure Rating: 5000 PSIG
  • Output Signal: 10V
  • Process Connection: NPT male fittings (top and bottom ports)
  • Connector: Multi-pin circular rear-mount
  • Housing: Stainless steel / steel alloy
  • Manufactured: USA

Applications

Used in industrial hydraulic systems and process control applications requiring differential pressure monitoring. The Statham PM6142 series was widely deployed in oil and gas, petrochemical, and manufacturing environments for real-time pressure differential measurement and system diagnostics. Suitable for retrofit and replacement in legacy instrumentation setups.

Condition: Used
This Schlumberger Statham PM6142 Differential Pressure Transducer has been visually inspected and shows good overall condition. The steel body and bolted frame are intact with no significant damage. The stainless sensor canister bears a green TTEC calibration label (dated APR 1991, per the label visible in photos). The multi-pin circular electrical connector on the rear appears complete and undamaged. NPT port fittings are present and show no obvious thread damage. Some light surface oxidation and handling marks are typical for surplus industrial equipment of this age. This unit has not been bench-tested at our facility. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Schlumberger
Model:
PM6142
MPN:
PM6142
Type:
Differential Pressure Transducer
SKU:
9627
Division / Sub-Brand:
Statham Division
Differential Pressure Range:
±7.2 PSID
Line Pressure Rating:
5000 PSIG
Max Allowable Pressure:
5000 PSID
Output Signal:
10V
Connector Type:
Multi-pin circular connector (rear-mount)
Process Connection:
NPT male fittings (top and bottom ports)
Body Material:
Stainless steel / steel alloy housing
Country/Region of Manufacture:
USA
Measurement Type:
Differential Pressure
Application:
Industrial process measurement, hydraulic systems
Condition:
Used – Inspected
Seller Notes:
Unit only; no additional accessories observed.
Condition Notes:
Schlumberger Statham PM6142 Differential Pressure Transducer. Visually inspected; body and connector intact, good overall condition. Calibration label dated APR 1991. Light surface oxidation typical for age. Not bench-tested at our facility.
View AllClose

Related Products

Related Products

Gould Statham P8164-40C-24010 pressure transducer in original sealed bag with cardboard box and documentation label visible Gould Statham P8164-40C-24010 pressure transducer side view showing red protective cap, clear body, and dual threaded port fittings
Add to Cart
Quick view

Gould Statham P8164-40C-24010 Pressure Transducer 0-4000 PSIA Rocketdyne

Gould/Statham

$70.00
Was: $150.00
Gould Statham P8164-40C-24010 Pressure Transducer 0-4000 PSIA Rocketdyne RES7007-52The Gould Statham P8164-40C-24010 is a high-pressure transducer manufactured by Gould Inc., Measurement Systems...
46035
SKU:
46035
Availability:
Usually ships within 1–2 business days.
Weight:
1.00 LBS
Brand:
Gould
Model:
P8164-40C-24010
MPN:
P8164-40C-24010
Secondary Model:
RES7007-52(1)
Type:
Hydraulic Pressure Transducer
SKU:
46035
Pressure Range:
0 to 4000 PSIA
Maximum Rated Pressure:
6000 PSIA
Maximum Excitation Voltage:
10V
Application:
Space Vehicle Hydraulic Systems
Cleaned To:
Gould MSD Procedure 5352, Revision D
Cleaning Standard Reference:
RL10012, Revision D
Rocketdyne Part Number:
RES7007-52(1)
Manufacturer Division:
Gould Inc., Measurement Systems Division
Date Cleaned / Certified:
28 October 1982
Inspection Date:
July 3, 1984
Seller Notes:
Includes original Gould MSD cleaning/certification documentation bag
Condition:
Used – Inspected and in Good Condition
Country/Region of Manufacture:
United States
Connector Type:
Dual threaded ports (port 1 and port 2 visible)
Compatible With:
Rocketdyne space vehicle hydraulic systems
Condition Notes:
Gould Statham P8164-40C-24010 pressure transducer. Inspected and in good condition. Original cleaning/certification bag present and intact. Red protective cap present. Threaded ports show no damage. Normal shelf storage wear.

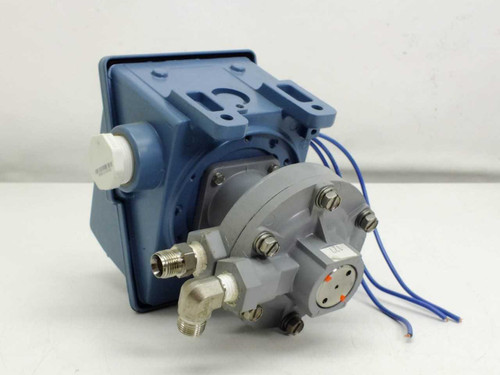

UE J400K-457 Differential Pressure Switch – angled view showing blue enclosure cover open with wiring leads visible UE J400K-457 Differential Pressure Switch – bottom and side view showing pressure sensing diaphragm body, 1/2 NPT fittings, and wiring leads
Add to Cart
Quick view

UE J400K-457 Differential Pressure Switch 3-30 PSID Single Output 15A 480VAC

UE

$111.00
Was: $300.00
UE J400K-457 Differential Pressure Switch 3-30 PSID Single Output 15A 480VAC Differential pressure switch manufactured by United Electric Controls. Monitors pressure differential between two points...
47044
SKU:
47044
Availability:
Usually ships within 1-2 business days.
Weight:
4.00 LBS
Brand:
United Electric Controls
Model:
J400K-457
MPN:
J400K-457
Type:
Differential Pressure Switch
SKU:
47044
Seller Notes:
Unit only; no accessories included.
Country/Region of Manufacture:
United States
Operating Range:
3 to 30 PSID (0.2 to 2.1 bar)
Proof Pressure:
225 PSI (15.5 bar)
Deadband:
0.1 - 0.4 PSI
Working Pressure:
30 in Hg Vac to 225 PSI
Electrical Rating:
15A 480VAC
Output Type:
Single Output
Set Point Adjustment:
Internal
Electrical Connection:
One 3/4 in NPT; two 7/8 in diameter knockouts
Pressure Connection:
1/2 in NPT (female)
Wetted Materials:
Aluminum, Buna-N
Certifications:
UL Listed, CE, FM Approved
UL Listing:
Listed 549A IND. CONT. EQ.
Enclosure Material:
Aluminum
Series:
J400K
Condition:
Used – Inspected
Review Status:
Auto-Approved (needs review) 2026-07-04
Condition Notes:
UE J400K-457 Differential Pressure Switch, inspected, good used condition. Enclosure intact, minor oxidation on pressure fittings consistent with prior use. Wiring leads present. Please view photos and contact us with questions.

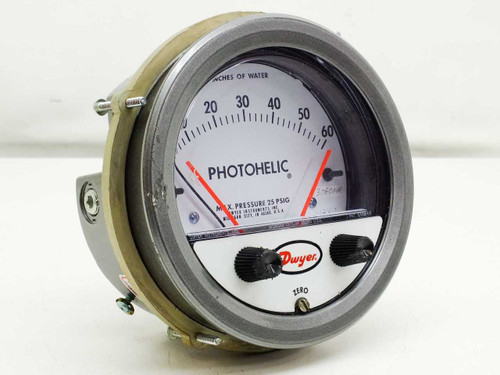

Dwyer 3060MR Photohelic Differential Pressure Gauge front face showing 0-60 In H2O dial and Dwyer knobs Dwyer 3060MR Photohelic Gauge rear view showing multi-pin electrical connector and black housing
