Matheson
-

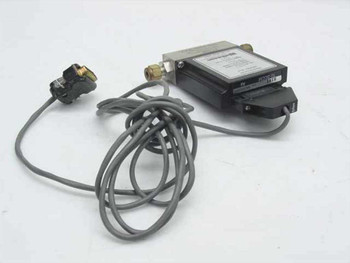

Matheson 8141 Pressure Transducer 500 PSIG Max 0-5VDC Output DB15 For Parts
Matheson
$45.00Was: $90.00Matheson 8141 Pressure Transducer 500 PSIG Max 0-5VDC Output DB15 For PartsIndustrial pressure transducer designed to measure gas flow and pressure up to 500 PSIG. Converts pressure readings to 0-5...26009- SKU:
- 26009
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 1.00 LBS
- Brand:
- Matheson
- Model:
- 8141
- MPN:
- 8141
- Type:
- Pressure Transducer
- SKU:
- 26009
- Maximum Pressure:
- 500 PSIG
- Output Signal:
- 0-5 VDC
- Supply Voltage:
- +15 VDC
- Connector Type:
- DB15 (15-pin D-sub)
- Pin Configuration:
- Case GND-1, Common-2/B, Output 0-5VDC-3/C, +15VDC-4, Zener Test Pt-6, -15VDC-F
- Manufacturer Location:
- East Rutherford, NJ
- Patent Numbers:
- 3851526, 3938384
- Flow Direction:
- Marked on body (arrow indicates flow direction)
- Inlet/Outlet Connection:
- Compression tube fittings (both ends)
- Application:
- Gas flow / pressure measurement
- Condition:
- As-Is / For Parts or Not Working
- Seller Notes:
- Includes attached DB15 cable. Untested — sold for parts or repair.
- Country/Region of Manufacture:
- United States
- Condition Notes:
- Matheson 8141 Pressure Transducer — untested, sold AS-IS for parts or repair. Not powered or tested at our facility. Includes attached DB15 cable. Compression fittings present. Please contact us with questions.
$45.00Was: $90.00 -
Matheson 8160 Mass Flow Meter 0-5 VDC Output 115V AC Benchtop Gas Flow SCCM
Matheson
$150.00Was: $300.00Matheson 8160 Mass Flow Meter 0-5 VDC Output 115V AC Benchtop Gas Flow SCCMThe Matheson 8160 is a benchtop mass flow meter designed to measure gas flow rates in standard cubic centimeters per minute...24635- SKU:
- 24635
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 10.00 LBS
- Brand:
- Matheson
- Model:
- 8160
- MPN:
- 8160
- Type:
- Mass Flow Meter
- SKU:
- 24635
- Power Requirements:
- 115V AC
- Output Signal:
- 0–5 VDC Analog
- Gas / Medium:
- Air (label visible; other gases configurable per model)
- Flow Unit:
- SCCM
- Connector Type:
- D-Sub (15-pin), Banana Jack Output
- Form Factor:
- Benchtop
- Display Type:
- LED Numeric Display
- Application / Use Case:
- Gas flow measurement, lab, semiconductor, process control
- Condition:
- Used – Powers On, Limited Testing
- Seller Notes:
- Unit powers on and display illuminates; further testing was not performed.
- Country/Region of Manufacture:
- United States
- Condition Notes:
- Matheson 8160 Mass Flow Meter powers on and LED display lights up; further functional testing (gas flow, output signal) was not performed. Sold as-inspected. Normal lab wear. Please contact us with any questions.
$150.00Was: $300.00
