Description
Marlow Industries SE5000 110-9045-001 Temperature Controller AC 48-62Hz
The Marlow Industries SE5000 is a benchtop temperature controller built for driving thermoelectric (Peltier) modules and similar thermal loads in laboratory and industrial settings. It accepts AC line power over a wide frequency range (48–62 Hz) and delivers a regulated DC output through a multi-pin circular connector on the rear panel. The front panel provides a red LED readout for voltage and current, a green digital display for setpoint and process values, and dedicated controls for Heat/Cool mode, Current Limit, Operate, Standby, and Power.
Specifications & What's Included
- Manufacturer: Marlow Industries, Inc.
- Model: SE5000
- Part Number: 110-9045-001
- FSCM Code: 556586
- AC Input: 48–62 Hz (IEC inlet; rear AC Line Selector switch)
- Output: DC Power Out via multi-pin circular connector (rear panel)
- Sensor Inputs: Thermocouple (TC) and thermistor (TH) via rear Sensor terminals

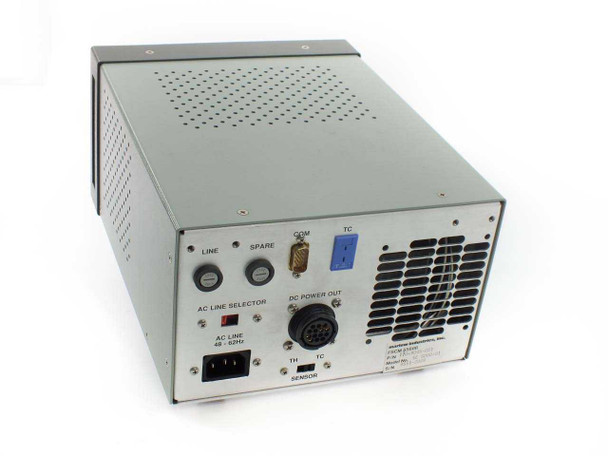

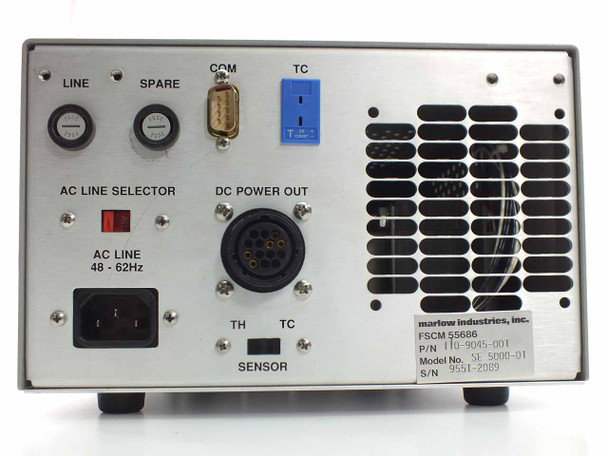

- Rear Connectors: LINE, SPARE (BNC-style), COM (DB9 serial), TC (blue terminal block), DC Power Out (multi-pin circular), TH/TC Sensor inputs, IEC AC inlet

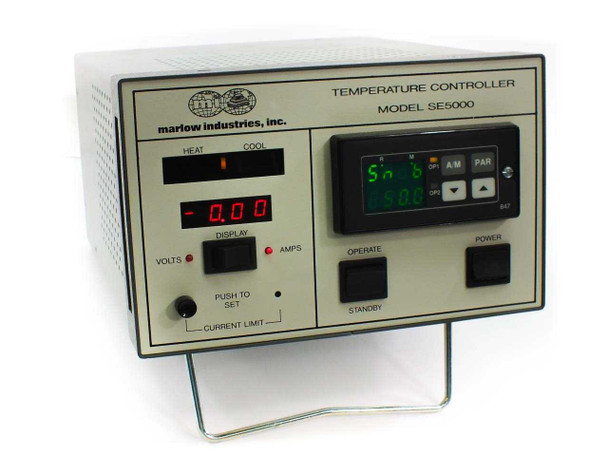

- Front Panel Controls: Heat/Cool indicator LEDs, Volts/Amps indicators, Push to Set, Current Limit knob, OPERATE button, STANDBY button, POWER button
- Front Panel Displays: Red LED (voltage/current readout), Green digital display (setpoint/process with AM/PAR/OPS/SET indicators)
- Form Factor: Benchtop (with fold-down wire stand feet)
- Included: Controller unit only — no cables or accessories
Applications
The SE5000 is designed to drive thermoelectric (Peltier) cooling and heating assemblies, making it well suited for temperature-stabilized test fixtures, laser diode mounts, detector cooling, environmental chambers, and laboratory thermal cycling systems. Marlow Industries is a long-established manufacturer of thermoelectric modules and the control systems designed to run them, so the SE5000 is purpose-built to match the electrical characteristics of TEC loads — bidirectional current control for both heating and cooling modes. It is commonly used in semiconductor and photonics labs, analytical instrument OEM assemblies, and industrial process control stations where tight thermal regulation is needed around a fixed setpoint. The dual-sensor input (TC and TH) allows flexibility in choosing a thermocouple or thermistor as the feedback element depending on the application.
This Marlow Industries SE5000 Temperature Controller (P/N 110-9045-001) has been visually inspected and is in good used condition. The unit powers on, as shown in the photos, and was pulled from a working environment where it was previously in service. It has not been fully bench-tested at our facility. No visible damage or defects were found. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Marlow Industries |
Model: |
SE5000 |
MPN: |
110-9045-001 |
Type: |
Temperature Controller |
SKU: |
51916 |
FSCM Code: |
556586 |
Power Requirements: |
AC 48–62 Hz |
Form Factor: |
Benchtop |
Application: |
Industrial and laboratory temperature control |
Condition Notes: |
Marlow Industries SE5000 (110-9045-001) temperature controller in good used condition. Powers on. Visually inspected; pulled from a working environment. Not fully bench-tested at our facility. No visible damage. |
AC Line Selector: |
AC Line 48–62 Hz (rear panel selector switch) |
Display: |
Dual display: red LED voltage/current readout + green digital setpoint display |
Front Panel Controls: |
Heat/Cool indicator, Volts/Amps indicators, Push to Set, Current Limit, Operate, Standby, Power |
Rear Connectors: |
LINE, SPARE, COM (DB9), TC (blue terminal block), DC Power Out (multi-pin circular), Sensor (TH/TC), IEC AC inlet |
Sensor Input: |
Thermocouple (TC) and thermistor (TH) sensor inputs |
Output Type: |
DC Power Out (multi-pin circular connector) |
Seller Notes: |
Controller unit only — no cables or accessories included. See photos. |
Country/Region of Manufacture: |
United States |
