Dowty

Dowty TC-48 Temperature Controller Black Enclosure Heated Winder Coil 0-399°F

(No reviews yet) Write a Review
SKU:
47298
MPN:
TC-48
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
25.00 LBS
Shipping:
Calculated at Checkout

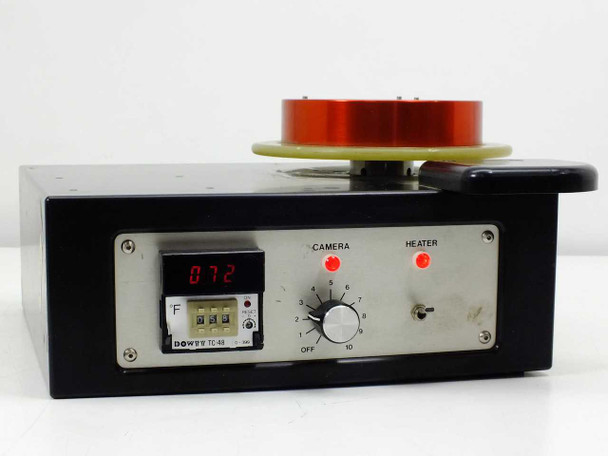

  • Dowty TC-48 Temperature Controller front view — LED display reads 072°F, thumbwheel setpoint, Camera knob and Heater indicator lit
  • Dowty TC-48 close-up of LED display showing 072°F and thumbwheel setpoint set to 058, ON and RESET buttons visible

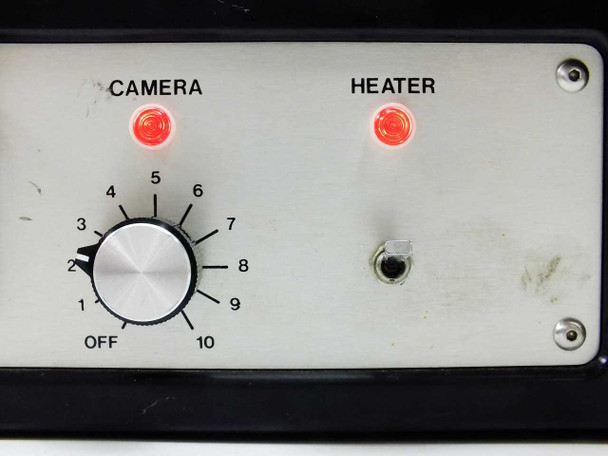

  • Dowty TC-48 front panel close-up — Camera rotary knob (OFF to 10) with red LED indicator lit, Heater red LED indicator lit, toggle switch

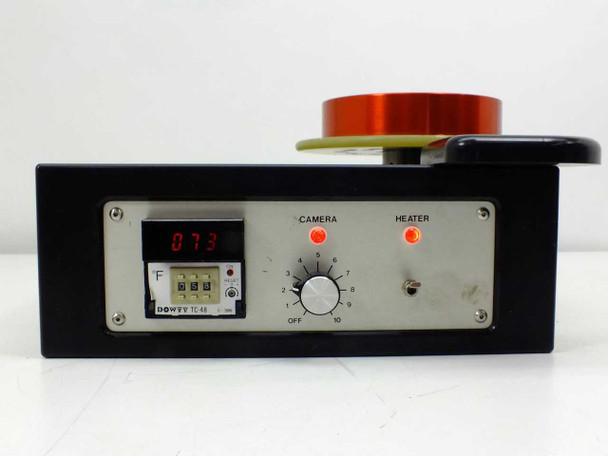

  • Dowty TC-48 Temperature Controller front-angle view — LED display reads 073°F, Camera and Heater LEDs illuminated, heated winder coil on top

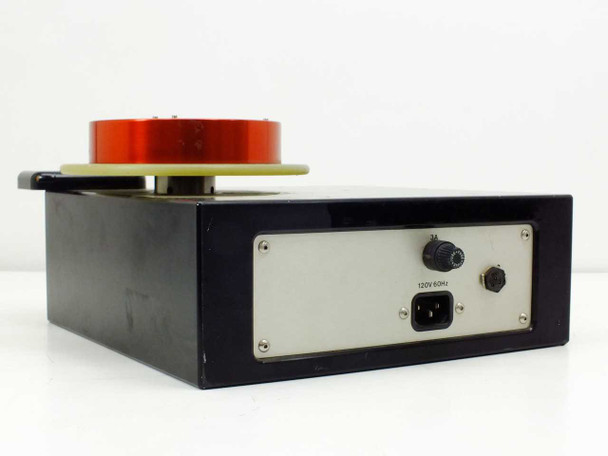

  • Dowty TC-48 rear panel — IEC C14 120V 60Hz power inlet, camera output port, and auxiliary connector
  • Dowty TC-48 top view of heated winder/coil wheel — orange outer ring with cream-colored base disc and central metal hub with mounting screws
  • Dowty TC-48 interior view — transformer, terminal block, wiring harness, capacitor, and internal components visible with top cover removed
  • Dowty TC-48 interior close-up — large blue 4300µF 35VDC electrolytic capacitor and wiring connections
  • Dowty TC-48 interior close-up — multi-position terminal block with red and blue connectors, wiring harness visible
  • Dowty TC-48 interior close-up — power transformer showing yellowed varnish and laminated core, wiring connections
$95.00
Was: $200.00
Current Stock: 1

Sold Out

Description

Dowty TC-48 Temperature Controller Black Enclosure Heated Winder Coil 0-399°F

The Dowty TC-48 is a benchtop temperature controller with integrated heated winder/coil wheel. It monitors and maintains temperatures from 0–399°F using a thumbwheel dial setpoint and displays readings on an LED digital readout.

Specifications & What's Included

  • Temperature range: 0–399°F with LED digital display
  • Setpoint control via thumbwheel dial
  • Camera speed knob (OFF–10) and heater toggle switch
  • Integrated heated winder/coil element on enclosure top
  • Camera and heater LED indicators
  • Power: 120V AC, 60Hz via IEC C14 inlet
  • Camera control port on rear panel
  • Manufactured in the United Kingdom

Applications

Temperature controllers of this type were used in industrial and telecom environments for thermal management of wire winding, coil heating, and camera systems requiring regulated heat. The heated winder design supported production processes where controlled temperature application was necessary.

Condition: Used
This Dowty TC-48 Temperature Controller powers on and is in working order. The LED display lights up, the temperature setpoint is adjustable via the thumbwheel dial, and the heated winder/coil wheel on top heats as expected. Both the Camera and Heater indicator LEDs illuminate during operation. The camera is not included. Cosmetically, the enclosure shows normal wear for its age — the front panel aluminum has some scuffing and minor marks, visible in the photos. The interior components appear intact with no obvious damage. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Dowty
Model:
TC-48
MPN:
TC-48
Type:
Temperature Controller with Heated Winder/Coil
SKU:
47298
Temperature Range:
0–399°F
Display Type:
LED Digital Readout
Temperature Unit:
Fahrenheit (°F)
Set Point Entry:
Thumbwheel dial (0–399°F range)
Controls:
Camera speed knob (OFF–10), Heater toggle switch
Indicators:
Camera LED indicator, Heater LED indicator
Power Requirements:
120V AC, 60Hz
Power Connector:
IEC C14 inlet (rear panel)
Form Factor:
Benchtop / Desktop Enclosure
Enclosure Color:
Black
Heated Element:
Integrated heated winder/coil wheel on top
Camera Output:
Camera control port on rear panel
Seller Notes:
Camera not included. Heated winder/coil included on top of enclosure.
Country/Region of Manufacture:
United Kingdom
Condition Notes:
Dowty TC-48 Temperature Controller powers on and works — LED display lights up, setpoint adjustable, heated winder/coil heats as expected. Camera and Heater LEDs illuminate. Camera not included. Normal cosmetic wear on enclosure.
View AllClose

Related Products

Related Products

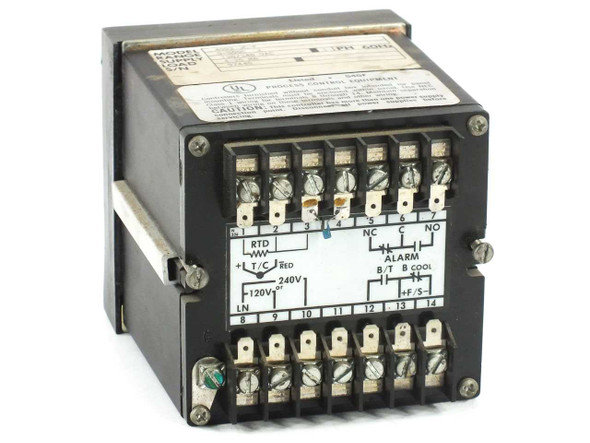

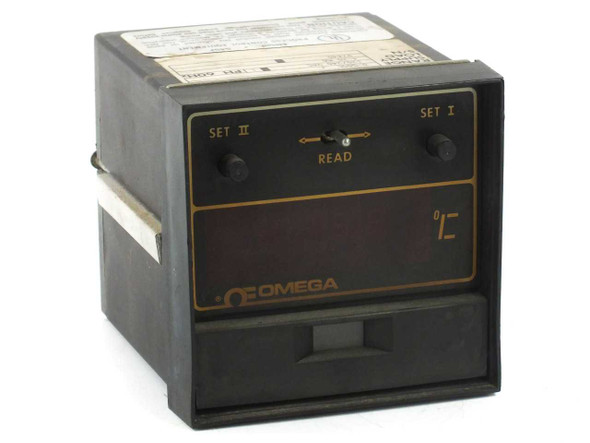

Omega 4002-JC-F temperature controller front panel — SET II and SET I knobs, READ selector switch, digital display showing °C, Omega logo Omega 4002-JC-F rear terminal block — 14-position screw terminals with RTD, T/C, alarm (NC/C/NO), 120V/240V power wiring diagram label
Add to Cart
Quick view

Omega 4002-JC-F Temperature Controller Dual Setpoint 0-500C 4-20mA 120/240V

Omega

$215.00
Was: $425.00
Omega 4002-JC-F Temperature Controller Dual Setpoint 0-500C 4-20mA 120/240VDigital temperature controller for industrial process monitoring and control. Accepts J-type thermocouple or RTD inputs and...
52525
SKU:
52525
Availability:
Usually ships within 1-2 business days.
Weight:
5.00 LBS
Brand:
Omega Engineering
Model:
4002-JC-F
MPN:
4002-JC-F
Type:
Digital Temperature Controller
SKU:
52525
Condition:
Used – Pulled from Working Environment
Seller Notes:
Unit only; no accessories included
Country/Region of Manufacture:
United States
Form Factor:
1/4 DIN Panel Mount
Power Requirements:
120/240VAC, 1-Phase, 60Hz
Temperature Range:
0–500°C
Number of Setpoints:
2 (Dual Setpoint)
Output Type:
4-20mA
Input Type:
Thermocouple (J-type) / RTD
Display Type:
Digital LED
Alarm Output:
Yes — relay alarm output (NC/C/NO terminals)
Certifications:
UL Listed (UL 545F) — Process Control Equipment
Terminal Count:
14 screw terminals (rear panel)
Compatible Input Sensors:
J-type thermocouple, RTD
Condition Notes:
Omega 4002-JC-F Temperature Controller inspected and in good used condition. Pulled from a working environment where it was in active use. Front panel shows light wear; rear terminals clean. Please view photos and contact us with any questions.

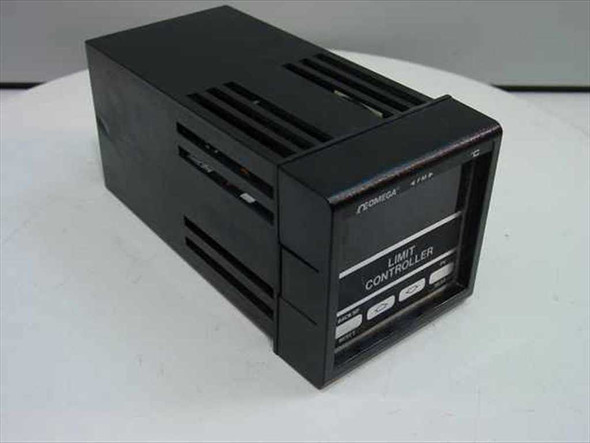

Omega Engineering CN2091 Low Limit Temperature Controller — front panel and top view showing display and control buttons Omega Engineering CN2091 Low Limit Temperature Controller — left side view with rating label and wiring terminals visible
