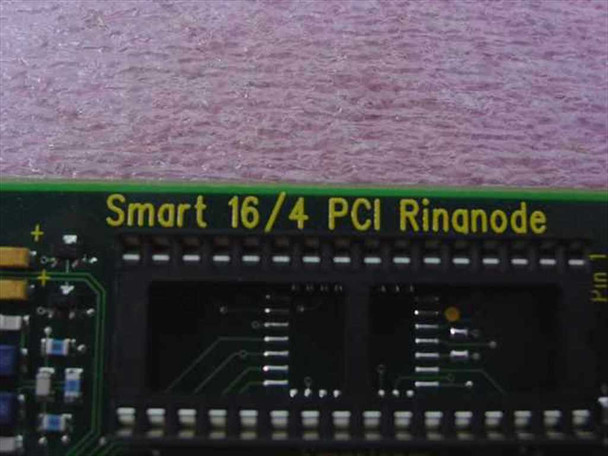

Madge Smart 16/4 PCI Ringnode Token Ring Network Card 151-100-3S 151-101-05
Token Ring network interface card for IBM PCs and compatibles. Operates at 16/4 Mbps on IEEE 802.5 Token Ring networks using a TI TMS380 controller chipset.
Specifications & What's Included
- Model: 151-100-3S / 151-101-05
- Interface: PCI
- Network Technology: Token Ring (IEEE 802.5)
- Data Transfer Rate: 16/4 Mbps
- Connectors: RJ-45 (UTP) and DB-9
- Controller: Texas Instruments TMS380
- Form Factor: PCI Card
- Card only; no drivers or software included
Applications
Token Ring network adapters were used in corporate and institutional environments running IBM Token Ring infrastructure. These cards connect workstations and servers to Token Ring networks, which were common in mainframe-connected environments and enterprise networks through the 1990s and early 2000s. The 16/4 Mbps specification indicates dual-speed capability for both 16 Mbps and 4 Mbps Token Ring networks. Compatible with IBM PCs, PS/2 systems, and compatible machines with available PCI slots.

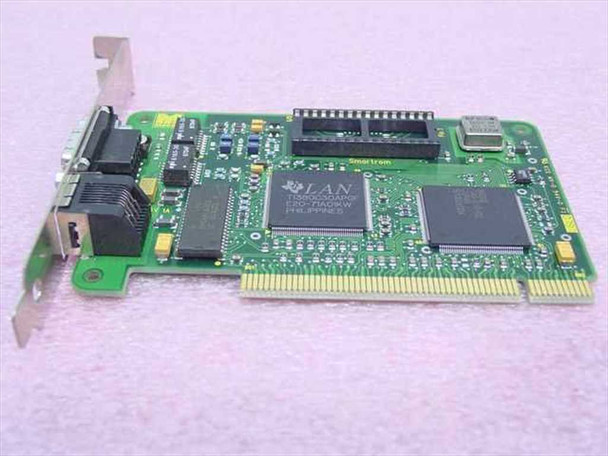

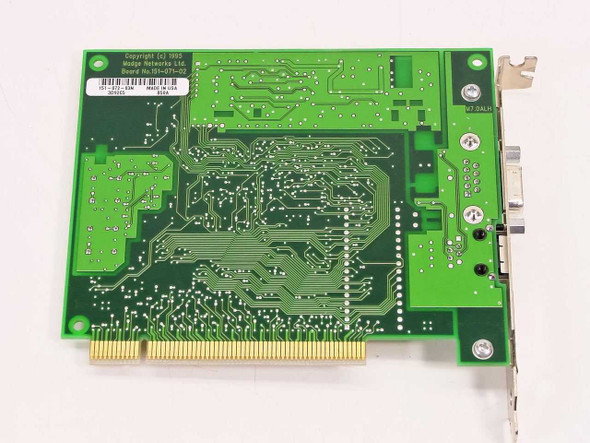

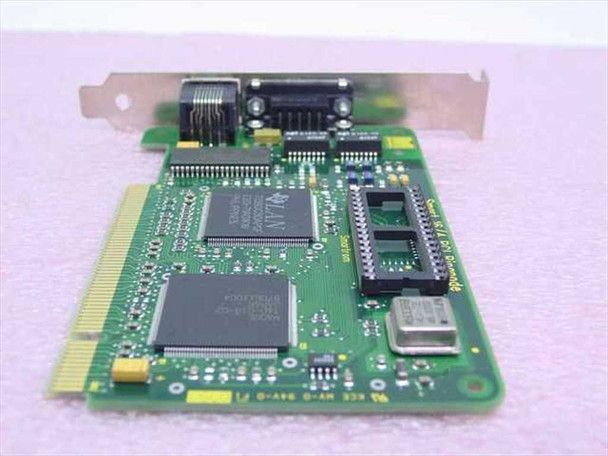

This Madge Smart 16/4 PCI Ringnode Token Ring Network Card (P/N 151-100-3S) has been inspected and is in good used condition. It was pulled from a working environment where it was in active use. The PCB shows light age-related patina consistent with normal service life, but there is no visible physical damage, broken traces, or bent connector pins. The bracket, RJ-45 port, and DB-9 connector all appear intact. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
Madge Networks |
Model: |
151-100-3S |
Secondary Model: |
151-101-05 |
MPN: |
151-100-3S |
SKU: |
21032 |
Type: |
Token Ring Network Interface Card (NIC) |
Network Technology: |
Token Ring (IEEE 802.5) |
Data Transfer Rate: |
16/4 Mbps |
Interface: |
PCI |
Connector Type: |
RJ-45 (UTP) and DB-9 |
Bus Type: |
PCI |
Form Factor: |
PCI Card |
Controller Chipset: |
TI TMS380 (Texas Instruments LAN controller) |
Compatible With: |
IBM PCs and compatibles with PCI slot |
Compatible With 2: |
IBM Token Ring networks, IEEE 802.5 infrastructure |
Country/Region of Manufacture: |
Philippines |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Card only; no drivers or software included. |
Condition Notes: |
Madge Smart 16/4 PCI Ringnode Token Ring NIC 151-100-3S. Inspected, in good used condition. Pulled from a working environment. No visible damage. RJ-45 and DB-9 connectors intact. |
