Madge

Madge Smart 16/4 PCI Ringnode 151-100-04 Token Ring Network Card IBM

(No reviews yet) Write a Review
SKU:
8857
MPN:
151-100-04
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
1.00 LBS
Shipping:
Calculated at Checkout
  • Madge Smart 16/4 PCI Ringnode 151-100-04 Token Ring card — front bracket view showing DB9 and RJ45 ports with Madge logo
  • Madge Smart 16/4 PCI Ringnode 151-100-04 — PCB rear/solder side view showing green board and PCI edge connector
  • Madge 151-100-04 PCB label close-up showing Board No. 151-101-05, copyright 1996 Madge Networks Ltd., Made in Ireland
  • Madge Smart 16/4 PCI Ringnode — component side view showing Texas Instruments TMS380C504PGE main controller chip and Smartrom module

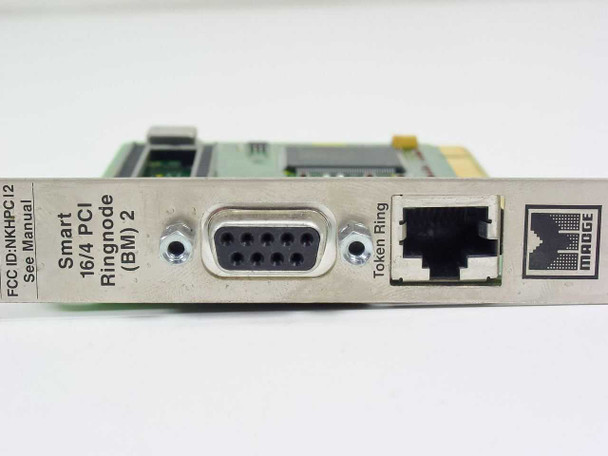

  • Madge Smart 16/4 PCI Ringnode bracket detail showing FCC ID NKHPC12, DB9 connector, and Token Ring RJ45 port with Madge logo
$28.00
Was: $60.00
Current Stock: 6

Sold Out

Description

Madge Smart 16/4 PCI Ringnode 151-100-04 Token Ring Network Card IBM

Token Ring network adapter card for IBM PC and compatible systems. Connects computers to Token Ring networks at 16/4 Mbps using PCI bus interface.

Specifications & What's Included

  • Model: Smart 16/4 PCI Ringnode, MPN 151-100-04
  • Interface: PCI half-height card
  • Network Standard: Token Ring 16/4 Mbps
  • Connectors: DB9 (STP) and RJ45 (UTP)
  • Chipset: Texas Instruments TMS380C504PGE
  • Manufactured: Ireland, 1996
  • Card only; no software or documentation included

Applications

Used in legacy IBM Token Ring networks, primarily in enterprise environments and industrial settings during the 1990s and early 2000s. Fits IBM PC and compatible systems with available PCI slots. Supports both shielded twisted pair (STP) and unshielded twisted pair (UTP) cabling. Suitable for network expansion, replacement, or restoration of legacy Token Ring infrastructure.

Condition: Used
This Madge Smart 16/4 PCI Ringnode Token Ring network card (MPN 151-100-04) has been inspected and appears to be in good used condition. The PCB is clean with no visible damage, broken traces, or burnt components. The bracket, DB9 connector, and RJ45 port all appear intact. The card shows light handling wear consistent with normal use and storage. It was not bench-tested at our facility. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Madge Networks
Model:
Smart 16/4 PCI Ringnode
MPN:
151-100-04
Secondary Model:
151-101-05
Type:
Token Ring Network Adapter Card
SKU:
8857
Interface:
PCI
Network Standard:
Token Ring 16/4 Mbps
Connector Type:
DB9 (STP) and RJ45 (UTP)
Bus Type:
PCI
Form Factor:
PCI Card / Half-Height
Chipset:
Texas Instruments TMS380C504PGE
Compatible With:
IBM PC and compatible systems with PCI slot
Country/Region of Manufacture:
Ireland
Year of Manufacture:
1996
FCC ID:
NKHPC12
Condition:
Used – Pulled from Working Environment
Seller Notes:
Card only; no software or documentation included.
Condition Notes:
Madge Smart 16/4 PCI Ringnode 151-100-04 Token Ring card inspected and in good used condition. PCB clean, connectors intact, light handling wear. Not bench-tested at our facility. Photos available.
View AllClose

Related Products

Related Products

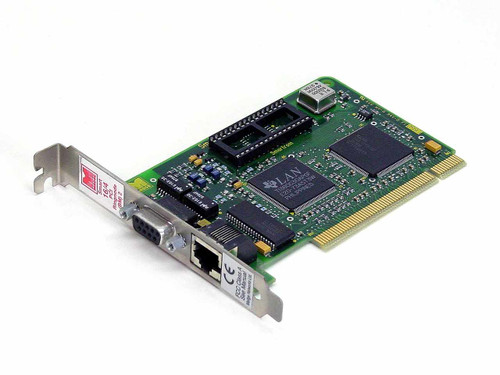

Madge 151-100-04N Smart 16/4 PCI Ringnode Token Ring Network Card – front angled view showing DB9 and RJ45 ports on bracket and main LAN controller chip Madge 151-100-04N Smart 16/4 PCI Ringnode Token Ring Card – reverse angled view showing PCI edge connector, board layout, and secondary chips
Add to Cart
Quick view

Madge 151-100-04N Smart 16/4 PCI Ringnode Token Ring Network Card DB9 RJ45

Madge

$19.50
Was: $45.00
Madge 151-100-04N Smart 16/4 PCI Ringnode Token Ring Network Card DB9 RJ45 Token Ring network adapter card for PCI slot computers. Supports dual speeds of 4 Mbps and 16 Mbps on IEEE 802.5 Token Ring...
8649
SKU:
8649
Availability:
Usually ships within 1-2 business days.
Weight:
1.00 LBS
Brand:
Madge Networks
Model:
151-100-04N
MPN:
151-100-04N
Secondary Model:
151-101-05
Type:
Token Ring Network Adapter Card
SKU:
8649
Interface:
PCI
Network Standard:
Token Ring IEEE 802.5
Data Rate:
4 Mbps / 16 Mbps
Connector Types:
DB9, RJ45
Form Factor:
PCI Card
Country/Region of Manufacture:
United States
Compatible With:
PCI slot desktop PCs, Token Ring networks
Condition:
Used – Inspected
Seller Notes:
Card only; no software or accessories included.
Review Status:
Auto-Approved (needs review) 2026-07-03
Condition Notes:
Madge 151-100-04N Smart 16/4 PCI Token Ring Card in good used condition. Inspected, bracket and ports intact, PCB clean. Pulled from a working environment. Card only.

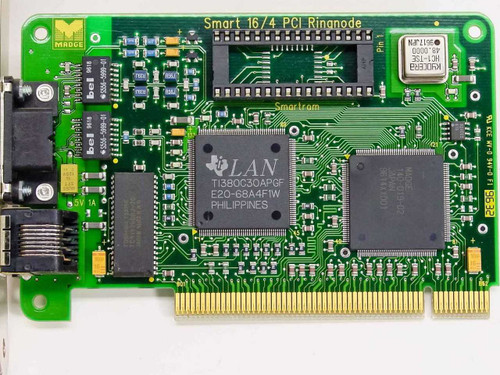

Madge 151-100-03S Smart 16/4 PCI Ringnode Token Ring card — front bracket view showing DB9 and RJ45 ports Madge Smart 16/4 PCI Ringnode PCB top view showing Texas Instruments TI380C30A TILAN main controller chip and Smartram label
