Description
Lucent PatchMax 110 Cable Rack Patch Panel 19" Rackmount 4-PR EIA T568B Black

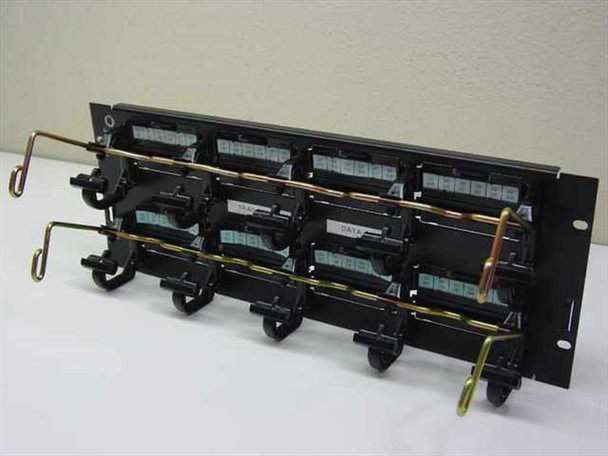

This Lucent PatchMax 110-type telephone cable rack patch panel is designed for 19" rack-mount enclosures and provides structured cabling termination for telephone and data circuits. The panel uses 110-type IDC (insulation displacement) punch-down blocks wired to the EIA T568B standard with Power Sum-rated 4-pair cable support, and features integrated cable management hooks to route and dress cables cleanly within the rack. Port positions are labeled for easy identification and administration.
Specifications & What's Included
- Brand: Lucent (PatchMax)
- Type: 110-Type Telephone Cable Rack Patch Panel
- Form Factor: 19" Rack Mount
- Color: Black

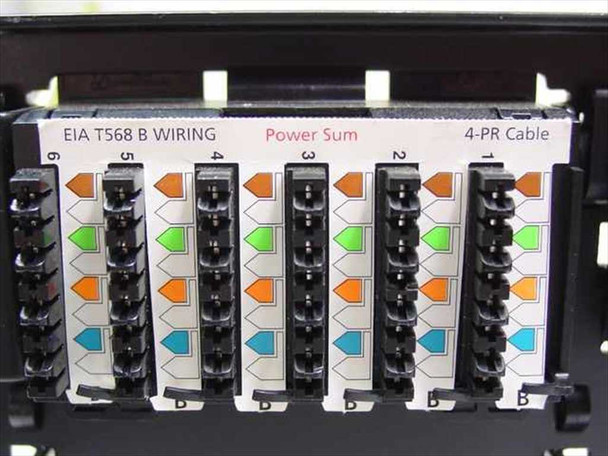

- Termination: 110-Type IDC punch-down blocks (color-coded per pair)
- Wiring Standard: EIA T568B
- Cable Rating: 4-PR (4-Pair), Power Sum rated

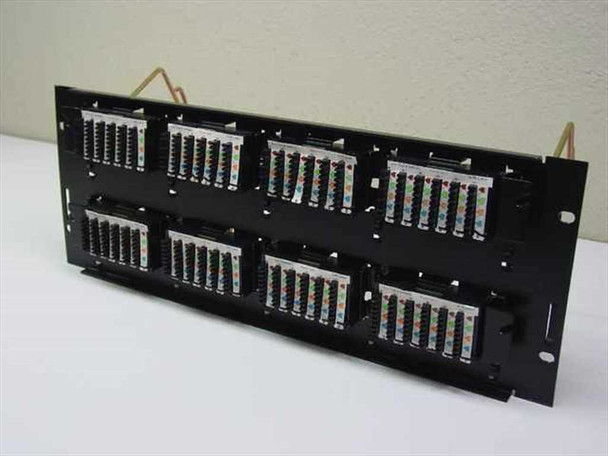

- Modules: Four IDC block modules mounted on panel

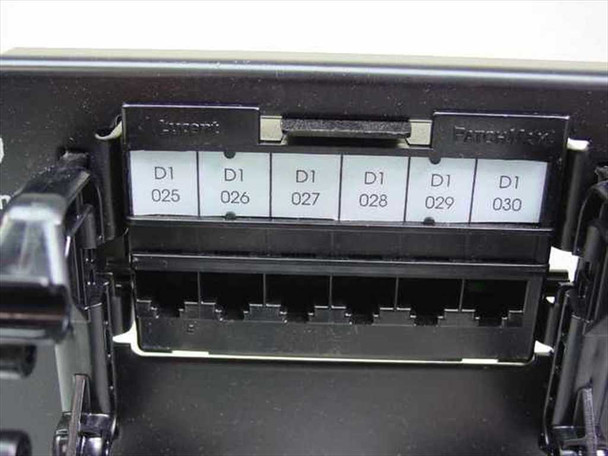

- Port Labeling: D1-series port numbering (D1 025–D1 030 and additional positions visible)

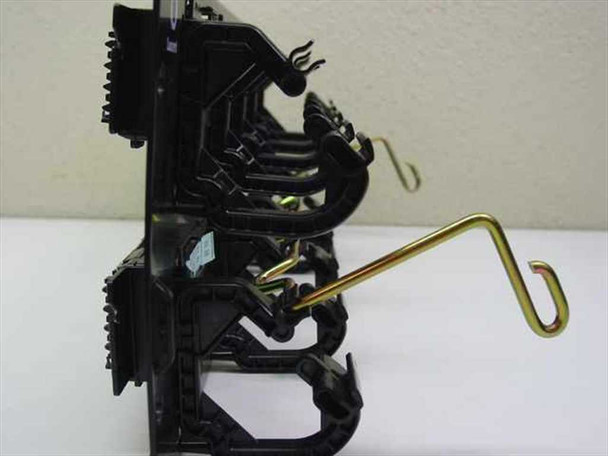

- Cable Management: Integrated gold-finish D-ring/hook style cable managers on front
- Panel only — no patch cables included
Applications
110-type patch panels like this Lucent PatchMax are standard infrastructure components in structured cabling systems for telephone and data networks. They serve as the central termination point where horizontal cable runs from workstations, telephone sets, or PBX extensions are punched down and organized, then cross-connected or patched to switching or PBX equipment. The EIA T568B wiring standard and Power Sum rating make this panel suitable for voice and lower-speed data applications. Lucent Technologies — which grew out of the Bell System/AT&T — was a major supplier of PBX, structured cabling, and telecom infrastructure products through the 1990s and early 2000s, and PatchMax panels like this one were widely deployed in corporate telephone rooms, wiring closets, and PBX installations of that era. These panels remain in use in legacy telephone plant environments and are sought after for maintaining, expanding, or repairing existing 110-block cabling infrastructure.
This Lucent PatchMax 110-type telephone cable rack patch panel has been inspected and is in good used condition. It was pulled from a working telecom environment where it was actively in service. The black panel and IDC block modules are intact with no missing or damaged components visible. The cable management hooks are present and undamaged. Normal handling marks and light surface wear consistent with rack-mounted use are present. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
Lucent |
Model: |
PatchMax |
MPN: |
PatchMax |
Type: |
110-Type Telephone Cable Rack Patch Panel |
SKU: |
33717 |
Form Factor: |
Rack Mount |
Rack Size: |
19 Inch |
Wiring Standard: |
EIA T568B |
Cable Type: |
4-PR (4-Pair) |
Termination Type: |
110-Type IDC (Insulation Displacement) |
Color: |
Black |
Connection Block Style: |
Color-coded IDC punch-down blocks |
Cable Management: |
Integrated cable management hooks/D-rings |
Port Labeling: |
D1 025–D1 030 visible per module (and more) |
Rating: |
Power Sum |
Compatible With: |
19" rack-mount enclosures, PBX/telephone systems |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Panel only; no cables included. Pulled from working telecom environment. |
Country/Region of Manufacture: |
United States |
Condition Notes: |
Lucent PatchMax 110 telephone cable rack patch panel in good used condition. Pulled from a working telecom environment. All IDC modules and cable management hooks intact. Normal light wear from rack use. Please contact us with any questions. |
