Description
Lorain MZHSA15CAB Modular DC-DC Converter -48V 15A w/ 4x MZHSA3B Modules
Modular DC-DC converter power supply manufactured by Reliance Electric Co. Converts +/-24VDC input to -48VDC output. Rack-mount form factor with four installed converter modules.
Specifications & What's Included
- Model: MZHSA15CAB (Spec 5882-406)
- Input: +/-24VDC, 45A max
- Output: -48VDC, 15A max
- Four MZHSA3B modules (3A per module, Spec 4868-846-00)
- Rack-mount chassis
- USA manufactured
Applications
Modular DC-DC converters of this type are used in telecommunications infrastructure, industrial control systems, and distributed power applications where -48V bus voltage is required. The modular design allows for parallel operation and load sharing across converter modules. Commonly found in telecom power distribution frameworks and legacy industrial systems requiring stable negative voltage rails.
Condition: Used

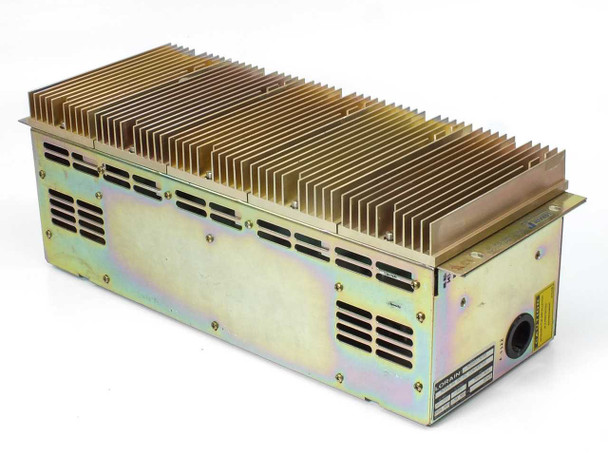

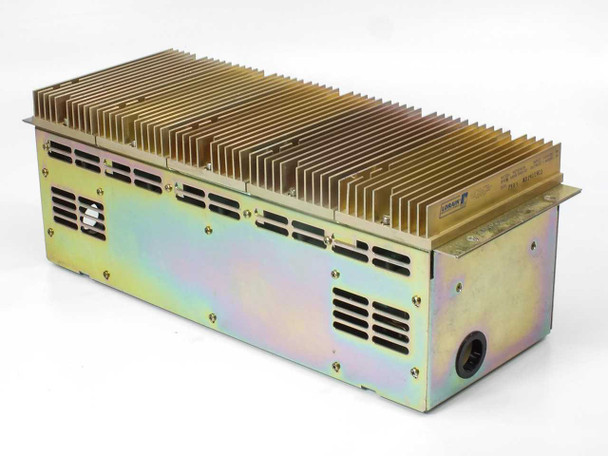

This Lorain MZHSA15CAB Modular DC-DC Converter was pulled from a working environment where it was in active use. It has been inspected and appears to be in good condition. The chassis houses all four MZHSA3B converter modules. The unit shows typical light wear consistent with normal service use — the gold-anodized heatsink fins are intact and the enclosure is generally clean. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
This Lorain MZHSA15CAB Modular DC-DC Converter was pulled from a working environment where it was in active use. It has been inspected and appears to be in good condition. The chassis houses all four MZHSA3B converter modules. The unit shows typical light wear consistent with normal service use — the gold-anodized heatsink fins are intact and the enclosure is generally clean. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Lorain |
Model: |
MZHSA15CAB |
MPN: |
MZHSA15CAB |
Secondary Model: |
MZHSA3B |
Spec Number: |
5882-406 |
Module Spec Number: |
4868-846-00 |
SKU: |
50182 |
Type: |
Modular DC-DC Converter Power Supply |
Condition: |
Used – Pulled from Working Environment |
DC Input Voltage: |
+/-24VDC |
DC Input Current (Max): |
45A Max |
DC Output Voltage: |
-48VDC |
DC Output Current (Max): |
15A Max |
Module Input Voltage: |
+24VDC, 9A |
Module Output Voltage: |
-48VDC, 3A |
Number of Modules: |
4 |
Module Model: |
MZHSA3B |
Manufacturer: |
Reliance Electric Co., Lorain, Ohio |
Country/Region of Manufacture: |
United States |
Form Factor: |
Rack Mount |
Seller Notes: |
Includes chassis (MZHSA15CAB) with 4x MZHSA3B DC-DC converter modules installed. |
Condition Notes: |
This Lorain MZHSA15CAB Modular DC-DC Converter was pulled from a working environment and inspected. Includes 4x MZHSA3B modules. Shows light wear consistent with normal use. Good overall condition. |
