V-Infinity

V-Infinity PTK15-Q48-S5 DC-DC Converter 15W 5V 3A 48V Input Board Module

(No reviews yet) Write a Review
SKU:
22394
MPN:
PTK15-Q48-S5
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
7.00 LBS
Shipping:
Calculated at Checkout
  • V-Infinity PTK15-Q48-S5 DC-DC converter board – top view showing dual heatsinks and wiring harness

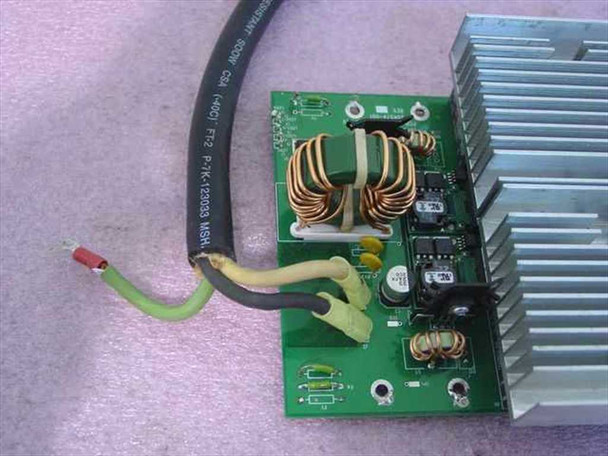

  • V-Infinity PTK15-Q48-S5 – close-up of input wiring harness side with toroidal inductors and green PCB

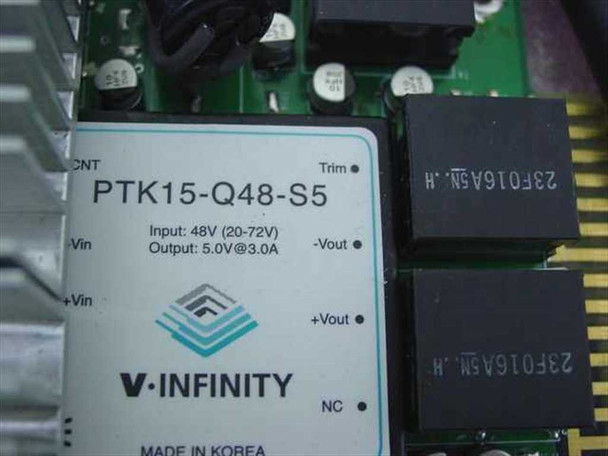

  • V-Infinity PTK15-Q48-S5 label showing 48V input, 5.0V at 3.0A output specs – Made in Korea
  • V-Infinity PTK15-Q48-S5 DC-DC converter module – side view with heatsink and label visible

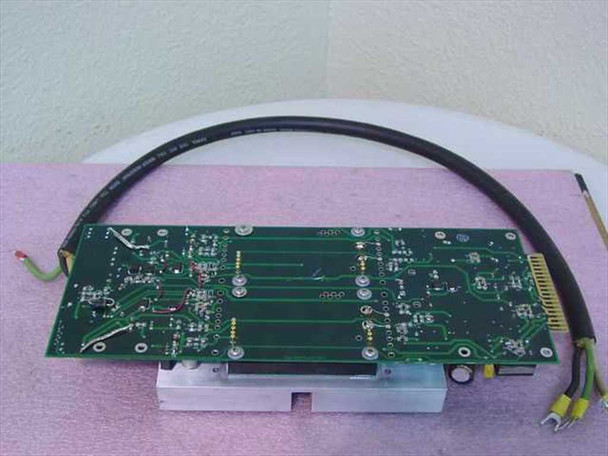

  • V-Infinity PTK15-Q48-S5 – PCB bottom/reverse side showing solder traces and edge connector

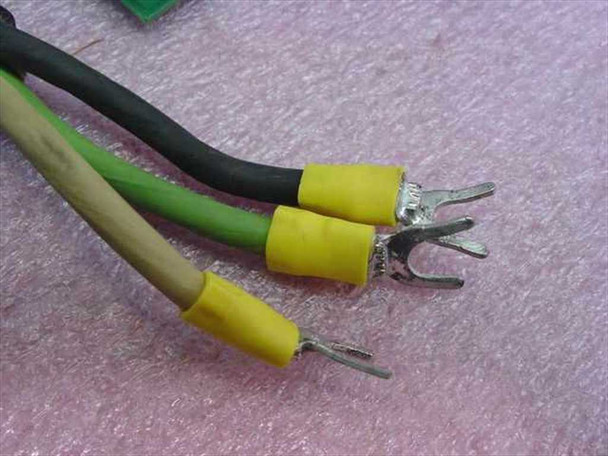

  • PTK15-Q48-S5 wiring harness terminations – yellow insulated spade lug connectors close-up
$12.90
Was: $35.00
Current Stock: 1

Sold Out

Description

V-Infinity PTK15-Q48-S5 DC-DC Converter 15W 5V 3A 48V Input Board Module

Isolated DC-DC converter module that steps down 48V input to regulated 5V output at 3A. Designed for integration into telecom, datacom, and industrial embedded power systems requiring isolated power conversion on a compact board-mount form factor.

Specifications & What's Included

  • Model: PTK15-Q48-S5 | Output: 15W, 5.0V, 3.0A
  • Input: 48V nominal (20–72V operating range)
  • Isolation type: Isolated DC-DC conversion
  • Form factor: Board-mount module
  • Manufacturer: V-Infinity (South Korea)
  • Includes wiring harness with spade-lug terminals

Applications

This converter type is standard in 48V distributed power architectures common to telecommunications infrastructure, data center backplane systems, and industrial embedded controllers. The isolated topology provides noise decoupling for sensitive analog and digital circuits. The 48V input rail is widely used in telecom equipment, MPPT solar controllers, industrial control systems, and redundant power supply networks where galvanic isolation between input and output stages is required.

Condition: Used
This V-Infinity PTK15-Q48-S5 DC-DC Converter Module has been inspected and is in good condition. The PCB and components appear clean and free of visible damage. The dual heatsinks are intact, and the attached wiring harness with spade-lug terminations is present. Normal light handling marks may be present consistent with prior use. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
V-Infinity
Model:
PTK15-Q48-S5
MPN:
PTK15-Q48-S5
Type:
DC-DC Converter Module
SKU:
22394
Output Power:
15W
Output Voltage:
5.0V
Output Current:
3.0A
Input Voltage:
48V nominal (20-72V range)
Conversion Type:
Isolated DC-DC
Form Factor:
Board Mount Module
Country/Region of Manufacture:
South Korea
Condition:
Used – Inspected and in Good Condition
Seller Notes:
Includes attached wiring harness with spade-lug leads
Compatible With:
48V telecom, datacom, and embedded power systems
Condition Notes:
V-Infinity PTK15-Q48-S5 DC-DC converter module inspected and in good condition. PCB and heatsinks are intact with no visible damage. Wiring harness with spade lugs included.
