Description
Lorain DB4S371 DC-DC Converter 48VDC In 5/15/24VDC Out Aspect 2400-0037 Reltec
DC-DC converter module designed for telecom and industrial power distribution systems. Accepts -48 VDC input and generates four regulated output voltages simultaneously for rack-mounted applications.
Specifications & What's Included
- Model: DB4S371 (Aspect P/N 2400-0037 Rev A)
- Input: -48 VDC at 10.9 A
- Outputs: +5 VDC @ 37 A, +15 VDC @ 3.5 A, -15 VDC @ 3.5 A, +24 VDC @ 3.5 A
- Form Factor: Rackmount Module
- Manufacturer: Reltec / Lorain (Lorain, Ohio)
- Unit only — no cables or accessories included
Applications
This converter type is used in telecom central office equipment, data center power systems, and industrial control racks where distributed DC voltage generation is required. Compatible with Reltec/Lorain telecom power distribution systems. Historically deployed in telecommunications infrastructure for powering multiple voltage-dependent subsystems from a single -48 VDC backbone.
Please note: We may have multiple units of this item in stock. The unit you receive may vary slightly from the one shown in the photos. All units are functionally equivalent and inspected to the same standard.

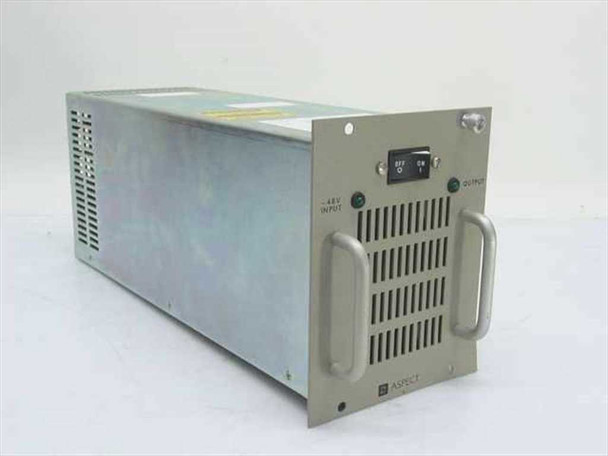

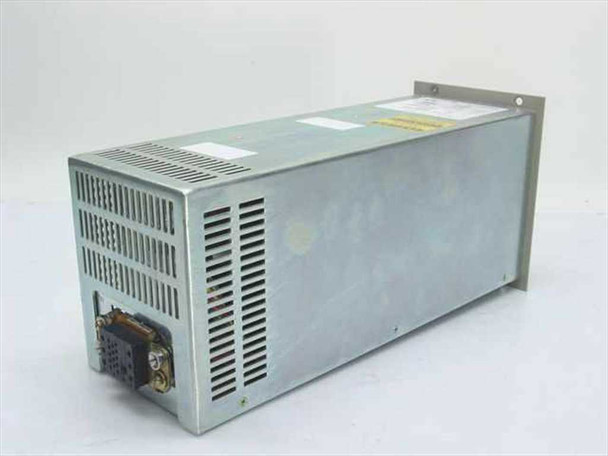

This Lorain DB4S371 DC-DC Converter (Aspect P/N 2400-0037) has been inspected and appears to be in good used condition. The chassis and panels show normal wear consistent with prior rack deployment, including light surface scuffs on the top and sides. The front panel switch and key input port are intact, and the rear output connector block is present and undamaged. The unit was pulled from a prior operational environment. It has not been bench-tested or powered at our facility. Please view our full photo set — including the specification label showing all input/output ratings — and contact us with any questions before purchasing.
Warranty Information
Additional Information
Brand: |
Lorain |
Model: |
DB4S371 |
MPN: |
DB4S371 |
Secondary Model: |
2400-0037 |
Part Number: |
Aspect P/N 2400-0037 Rev A |
Spec Number: |
567359500 |
SKU: |
14723 |
Condition: |
Used – Inspected |
Seller Notes: |
Unit only — no cables or accessories observed |
Country of Manufacture: |
USA |
Manufacturer: |
Reltec / Lorain (Lorain, Ohio) |
Form Factor: |
Rackmount Module |
Converter Type: |
DC-DC Converter |
Input Voltage: |
-48 VDC |
Input Current: |
10.9 A |
Output 1: |
+5 VDC at 37 A |
Output 2: |
-15 VDC at 3.5 A |
Output 3: |
+15 VDC at 3.5 A |
Output 4: |
+24 VDC at 3.5 A |
Number of Outputs: |
4 |
Hardware Revision: |
Rev A |
Compatible With: |
Reltec / Lorain telecom power systems |
Condition Notes: |
Lorain DB4S371 DC-DC Converter (Aspect 2400-0037) inspected, in good used condition. Light surface wear from rack use. Pulled from operational environment; not bench-tested at our facility. Please review photos and contact us with questions. |
