Lintech 47411 Dual 6" Precision Linear Stage Applied Motion 5023-149 Servo Motor

(No reviews yet) Write a Review
SKU:
30870
MPN:
47411
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
110.00 LBS
Shipping:
Calculated at Checkout

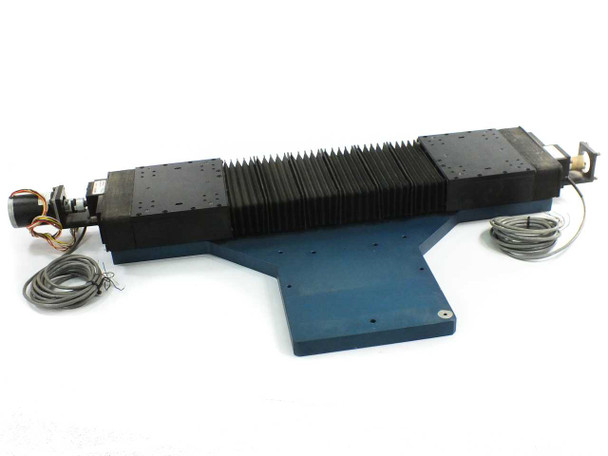

  • Lintech 47411 dual precision linear stage full assembly view from above at angle, showing dual bellows covers and servo motor with pigtail cables
  • Lintech 47411 dual 6" linear stage side profile view showing full length, blue aluminum base plate, bellows, and Applied Motion servo motor
  • Lintech 47411 dual linear stage front end view showing blue T-shaped base plate, dual stage rails, and servo motor on left end
  • Lintech 47411 label close-up showing model number 47411, serial number AA09830017, and Lintech Monrovia CA USA manufacturer details

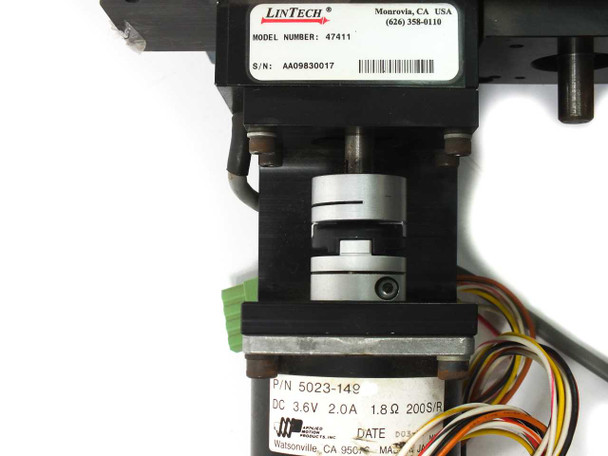

  • Applied Motion Products servo motor label on Lintech 47411 showing P/N 5023-149, DC 3.6V 2.0A 1.8 Ohm 200 S/R specifications

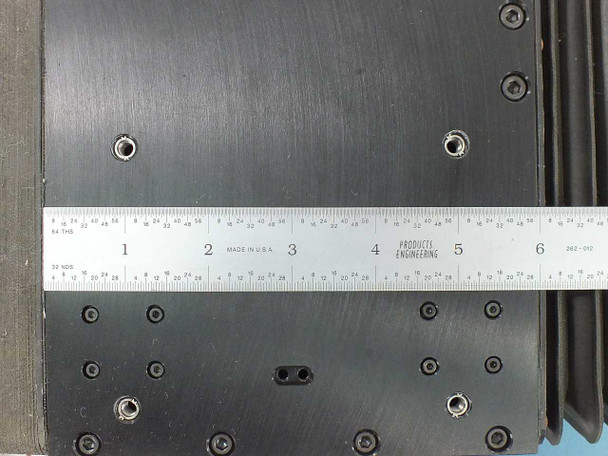

  • Lintech 47411 carriage top surface close-up with ruler showing approximately 6" stage length and threaded mounting hole pattern

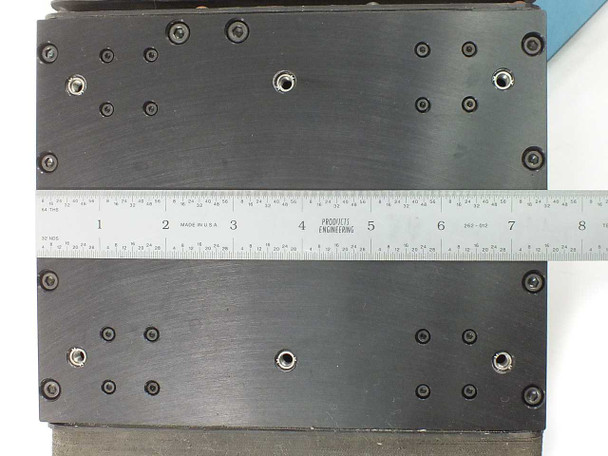

  • Lintech 47411 dual stage carriage top surface close-up with ruler confirming approximately 7.5" stage width and bolt hole grid pattern
$575.00
Was: $1,200.00
Current Stock: 1

Sold Out

Description

Lintech 47411 Dual 6" Precision Linear Stage Applied Motion 5023-149 Servo Motor

Dual-axis linear positioning stage with lead screw drive and integrated DC servo motors. Provides 6" of travel per axis for precision motion control applications.

Specifications & What's Included

  • Model: Lintech 47411; Motor: Applied Motion Products 5023-149
  • Dual 6" travel stages; 0.20" lead screw pitch
  • DC servo motor: 3.6 VDC, 2.0 A, 1.8 Ohm, 200 S/R resolution
  • Overall dimensions: 41" L × 19" W × 6" H
  • Includes both servo motor cables

Applications

Multi-axis linear stages are used in laboratory automation, precision manufacturing, optical alignment systems, and test equipment where controlled XY positioning is required. This dual-stage configuration integrates with motion control systems and is compatible with Applied Motion servo drive electronics. Commonly deployed in semiconductor handling, inspection equipment, and industrial automation platforms.

Condition: Used
This Lintech 47411 Dual Precision Linear Stage with Applied Motion 5023-149 servo motor has been inspected and appears to be in good condition. It was pulled from a working environment where it was in active use. The blue aluminum base plate, bellows covers, and carriage surfaces show normal wear consistent with prior service use. Both servo motor cables are present and visible. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Lintech
Model:
47411
MPN:
47411
Secondary Model:
5023-149
SKU:
30870
Type:
Dual Precision Linear Stage
Motor Brand:
Applied Motion Products
Motor Part Number:
5023-149
Motor Type:
DC Servo Motor
Motor Voltage:
3.6 VDC
Motor Current:
2.0 A
Motor Resistance:
1.8 Ohm
Motor Resolution:
200 S/R
Number of Axes:
2 (Dual)
Each Stage Travel Length:
6"
Each Stage Width:
7.5"
Total Rail Length:
30"
Lead Screw Pitch:
0.20"
Bellow Min. Length (each):
2"
Overall Assembly Length:
41"
Overall Assembly Width:
19"
Overall Assembly Height:
6"
Drive Type:
Lead Screw
Motion Type:
Linear
Country/Region of Manufacture:
United States
Condition:
Used – Pulled from Working Environment
Seller Notes:
Includes two servo motor cables; unit pulled from working environment
Condition Notes:
Lintech 47411 Dual Linear Stage w/ Applied Motion 5023-149 servo motor. Inspected and in good condition; pulled from a working environment. Both motor cables included. Normal service wear.
View AllClose

Related Products

Related Products

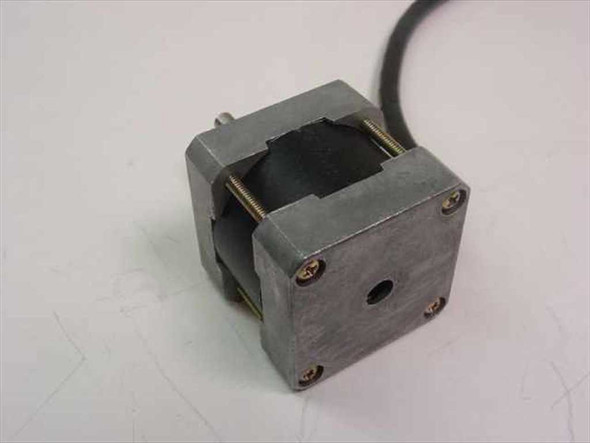

Applied Motion Products 5017-009 Stepping Motor — top and shaft view showing 1/4 inch output shaft and four corner mounting holes Applied Motion Products 5017-009 Stepper Motor — rear view showing center hole and corner mounting screws
