Applied Magnetics Custom Precision Linear Slide Micrometer Adjustment For Parts
Custom precision linear positioning stage manufactured by Applied Magnetics. Features a micrometer thimble adjustment mechanism for controlled movement along a single axis, used in magnetic recording media testing and precision positioning applications.
Specifications & What's Included
- Brand: Applied Magnetics
- Type: Precision Linear Slide / Positioning Stage
- Adjustment: Knurled-barrel micrometer (Mitutoyo-style)
- Base: Black anodized aluminum plate with right-angle end stop
- Carriage: Sliding carriage with spring-loaded clamp assembly
- Form Factor: Benchtop / Freestanding
- Manufactured: United States
Applications
This positioning stage type was used in Applied Magnetics test and R&D equipment for magnetic recording media analysis and precision measurement tasks. Compatible with Applied Magnetics test systems requiring calibrated linear movement and positioning control. Commonly utilized in electronics manufacturing, materials testing, and optical/magnetic media inspection work.
Condition: For Parts or Not Working

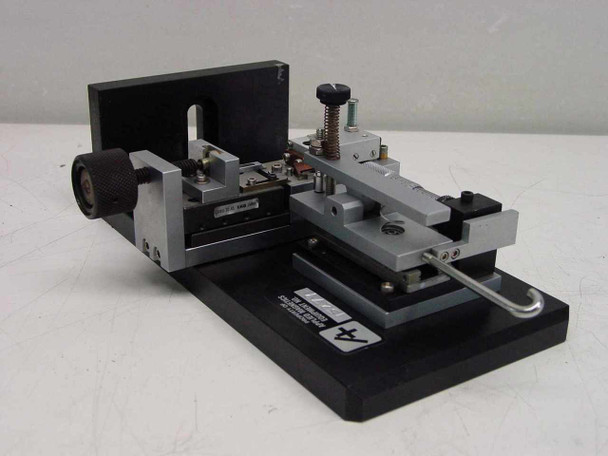

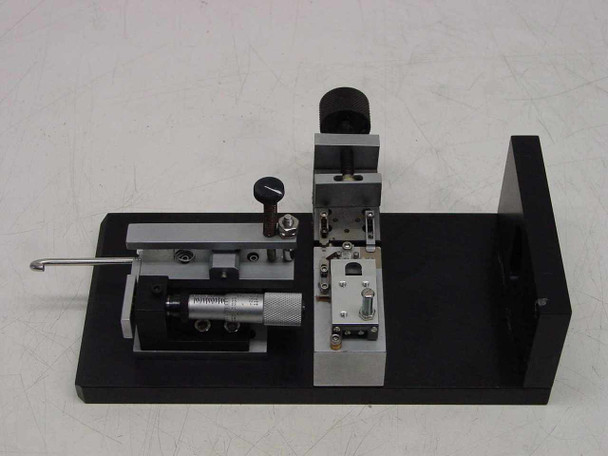

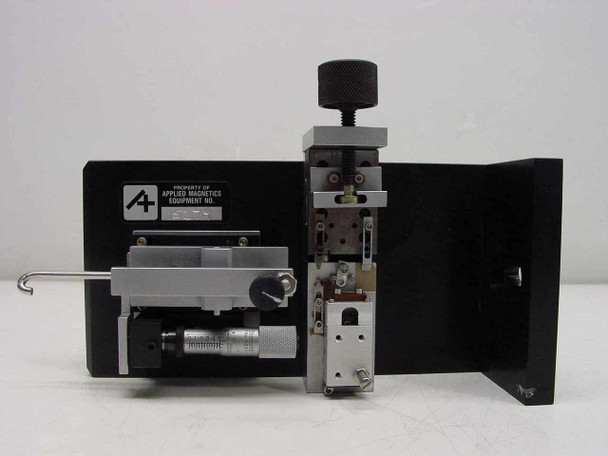

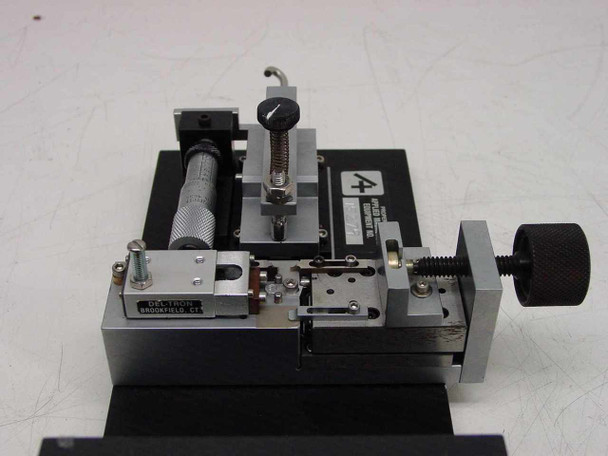

This Applied Magnetics Custom Precision Linear Slide with Micrometer Adjustment is being sold AS-IS for parts or repair. Its operational status has not been verified and no functionality is guaranteed. The unit appears complete — the micrometer barrel, sliding carriage, spring-loaded clamp assembly, right-angle end block, and black anodized aluminum base plate are all present and appear intact. Cosmetically, the unit shows general bench wear consistent with lab use, including minor scuffs and marks on the aluminum carriage and base surfaces. An Applied Magnetics equipment property tag is visible on the rear end plate. Please view our photo set and contact us if you have any questions.
This Applied Magnetics Custom Precision Linear Slide with Micrometer Adjustment is being sold AS-IS for parts or repair. Its operational status has not been verified and no functionality is guaranteed. The unit appears complete — the micrometer barrel, sliding carriage, spring-loaded clamp assembly, right-angle end block, and black anodized aluminum base plate are all present and appear intact. Cosmetically, the unit shows general bench wear consistent with lab use, including minor scuffs and marks on the aluminum carriage and base surfaces. An Applied Magnetics equipment property tag is visible on the rear end plate. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Applied Magnetics |
Model: |
Custom Precision Slide |
MPN: |
Unknown |
Type: |
Precision Linear Slide / Positioning Stage |
SKU: |
22549 |
Condition: |
As-Is / For Parts or Not Working |
Seller Notes: |
Sold as-is for parts or repair. No functionality guaranteed. |
Country/Region of Manufacture: |
United States |
Form Factor: |
Benchtop / Freestanding |
Adjustment Type: |
Micrometer Thimble |
Base Material: |
Anodized Aluminum / Black Anodized Plate |
Application: |
Magnetic Recording Media Test, Precision Positioning |
Compatible With: |
Applied Magnetics test and R&D equipment |
Micrometer Type: |
Knurled-barrel micrometer (Mitutoyo-style) |
Carriage Type: |
Sliding carriage with spring-loaded clamp assembly |
Mounting: |
Flat base plate with right-angle end stop |
Condition Notes: |
This Applied Magnetics Custom Precision Linear Slide is sold AS-IS for parts or repair. Not tested; no functionality guaranteed. Assembly appears complete with micrometer, carriage, clamp, and base plate present. Shows bench wear. |
