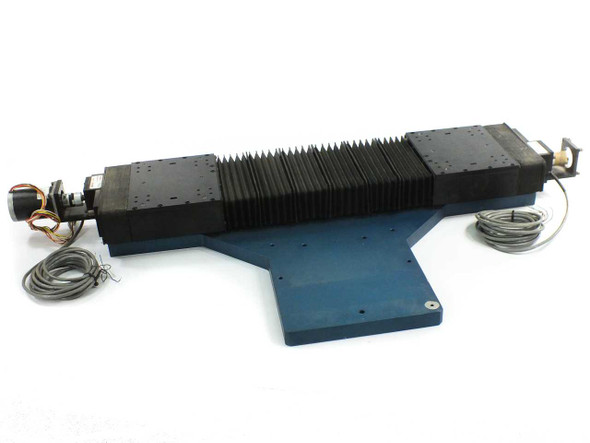

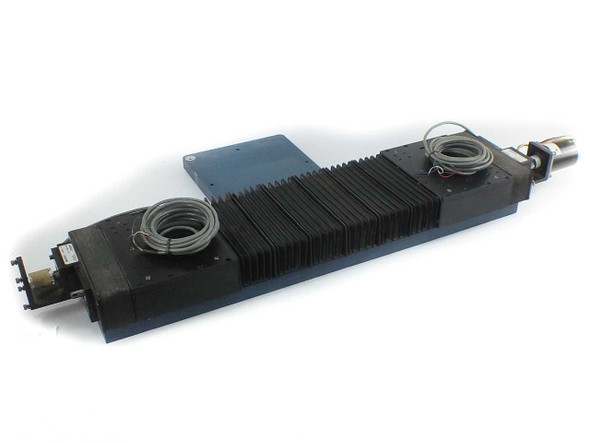

Lintech 47411 Dual 6" Precision Linear Stage Applied Motion 5023-149 Servo Motor

Lintech

SKU:

30870

Availability:

Usually ships within 1-2 business days.

Weight:

110.00 LBS

Brand:

Lintech

Model:

47411

MPN:

47411

Secondary Model:

5023-149

SKU:

30870

Type:

Dual Precision Linear Stage

Motor Brand:

Applied Motion Products

Motor Part Number:

5023-149

Motor Type:

DC Servo Motor

Motor Voltage:

3.6 VDC

Motor Current:

2.0 A

Motor Resistance:

1.8 Ohm

Motor Resolution:

200 S/R

Number of Axes:

2 (Dual)

Each Stage Travel Length:

6"

Each Stage Width:

7.5"

Total Rail Length:

30"

Lead Screw Pitch:

0.20"

Bellow Min. Length (each):

2"

Overall Assembly Length:

41"

Overall Assembly Width:

19"

Overall Assembly Height:

6"

Drive Type:

Lead Screw

Motion Type:

Linear

Country/Region of Manufacture:

United States

Condition:

Used – Pulled from Working Environment

Seller Notes:

Includes two servo motor cables; unit pulled from working environment

Condition Notes:

Lintech 47411 Dual Linear Stage w/ Applied Motion 5023-149 servo motor. Inspected and in good condition; pulled from a working environment. Both motor cables included. Normal service wear.
