Kronos

Kronos 460F Series 400 Time Clock 8600615-001 Ethernet & 14.4K Modem Board

(No reviews yet) Write a Review
SKU:
17433
MPN:
8600615-001
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
9.00 LBS
Shipping:
Calculated at Checkout

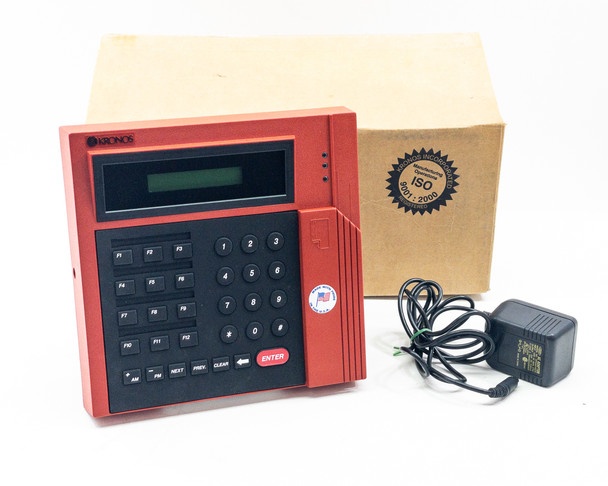

  • Kronos 460F Series 400 Time Clock 8600615-001 front view with original box and included AC power supply adapter
  • Kronos 460F Series 400 Time Clock front panel showing LCD display, numeric keypad, function keys, and card reader slot
  • Kronos 460F bottom label showing Series 400, Model 460F, Part Number 8600615-001, 120/230V 60/50Hz ratings, UL and CE marks
  • Kronos 460F Series 400 Time Clock angled top view showing bottom label with part number and serial number
  • Kronos 460F LCD display showing date 1/01/96 12:00A and firmware version KO5.3D00
  • Kronos 460F close-up of upper-right corner showing LCD display with KO5.3D00 firmware and three LED indicator lights
  • Kronos 460F interior view with front panel open showing System 400 Ethernet Main Board and modem option board installed

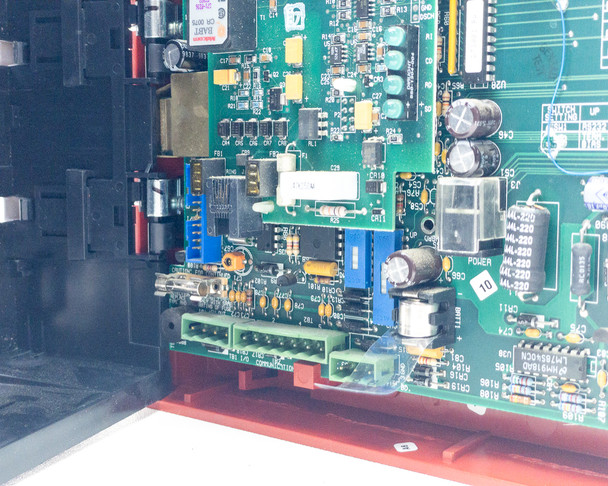

  • Kronos 460F interior close-up of modem card 6600204-001 and internal PCB connector blocks

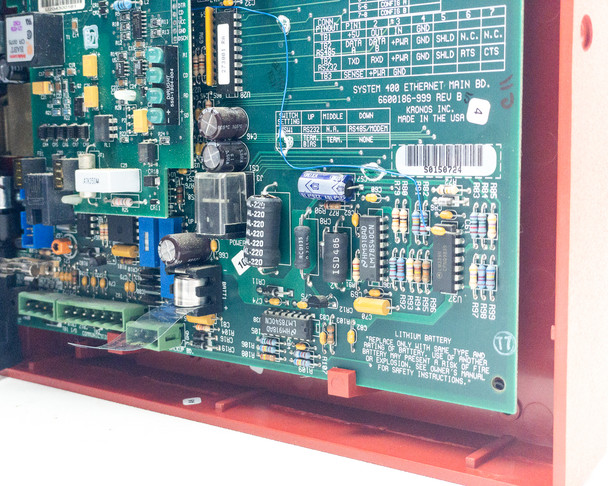

  • Kronos 460F interior showing System 400 Ethernet Main Board 6600188-999 Rev B label, Kronos Inc. Made in USA, with lithium battery

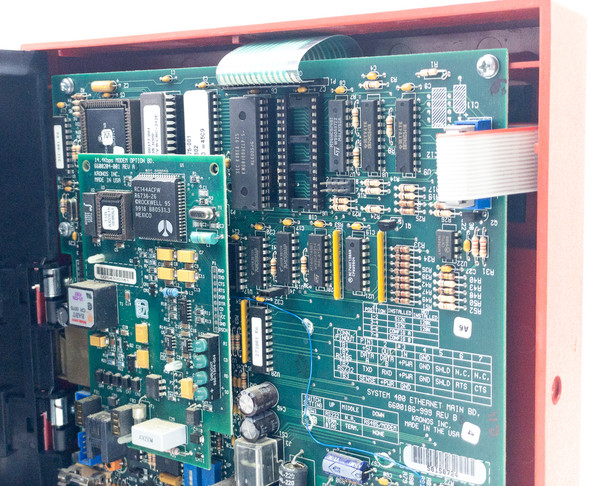

  • Kronos 460F interior close-up showing FK Modem PROM option board with ICs and ribbon cable connecting to Ethernet main board
  • Kronos 8600615-001 460F Series 400 Time Clock with Modem & Ethernet Board - USED
  • Kronos 8600615-001 460F Series 400 Time Clock with Modem & Ethernet Board - USED
  • Kronos 8600615-001 460F Series 400 Time Clock with Modem & Ethernet Board - USED
  • Kronos 8600615-001 460F Series 400 Time Clock with Modem & Ethernet Board - USED
  • Kronos 8600615-001 460F Series 400 Time Clock with Modem & Ethernet Board - USED
$125.00
Was: $250.00
Current Stock: 28

Sold Out

Description

Kronos 460F Series 400 Time Clock 8600615-001 Ethernet & 14.4K Modem Board

Employee time and attendance terminal for workforce management. Desktop or wall-mount form factor with LCD display, magnetic stripe card reader, and numeric keypad for clock-in/clock-out operations.

Specifications & What's Included

  • Model: Kronos 460F Series 400 (MPN: 8600615-001)
  • Connectivity: Ethernet (Main Board 6600186-999) and 14.4K baud internal modem (Card 6600204-001)
  • Display: LCD
  • Input: Magnetic stripe card reader and keypad

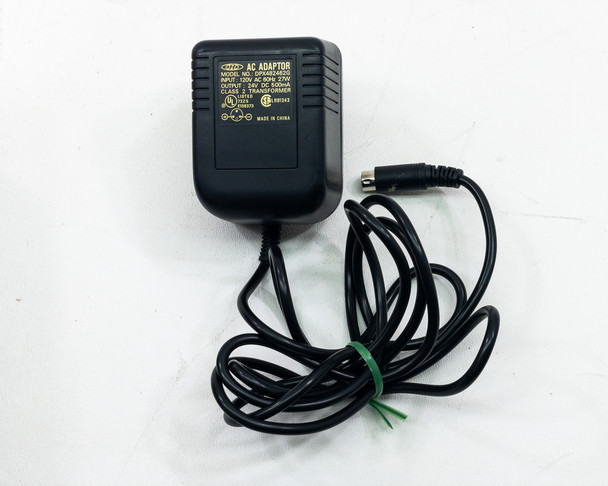

  • Power: 120/230 VAC, 60/50 Hz, 150/100 mA (Power supply DPX482462G included)
  • Firmware: KO5.3D00
  • Certifications: UL Listed, FCC Part 15, CE

Applications

Kronos 460F units were deployed in manufacturing facilities, warehouses, and enterprise environments to record employee arrival and departure times. Compatible with Kronos Series 400 workforce management systems. Designed for integration with centralized timekeeping databases via Ethernet or dial-up modem. No longer supported by Kronos.

Condition: Used
This Kronos 460F Series 400 Time Clock (8600615-001) is in used condition and comes in its original manufacturer packaging. The Ethernet Main Board (6600186-999) is preinstalled, and the 14.4K Modem Card (6600204-001) is installed inside the terminal. The power supply (DPX482462G) is included. The unit shows normal cosmetic wear consistent with prior use. Note that Kronos no longer supports this product line. We have multiple units in stock; the specific unit shipped may vary slightly from the one photographed but will be functionally equivalent. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Kronos
Model:
460F
MPN:
8600615-001
Secondary Model:
Series 400
Type:
Employee Time Clock / Time & Attendance Terminal
SKU:
17433
Ethernet Main Board MPN:
6600186-999
Modem Card MPN:
6600204-001
Power Supply MPN:
DPX482462G
Modem Speed:
14.4 Kbps
Connectivity:
Ethernet, 14.4K Modem (internal)
Display Type:
LCD
Input Method:
Keypad, Card Reader (magnetic stripe slot)
Firmware Version:
KO5.3D00
Power Requirements:
120/230 VAC, 60/50 Hz, 150/100 mA
Form Factor:
Desktop / Wall-Mount
Seller Notes:
Includes Ethernet Board 6600186-999, Modem Card 6600204-001, and power supply DPX482462G
Country/Region of Manufacture:
United States
Condition:
Used – Pulled from Working Environment
Compatible With:
Kronos Series 400 workforce management systems
Certifications:
UL Listed, FCC Part 15, CE
Manufacturer:
Kronos Inc., Chelmsford, MA USA
Condition Notes:
Used Kronos 460F Series 400 Time Clock in original packaging. Ethernet Board 6600186-999 and 14.4K Modem Card 6600204-001 preinstalled. Power supply included. No longer supported by Kronos. Unit may vary from photo.
View AllClose

Related Products

Related Products

Kronos 460F Series 400 Time Clock Terminal 8600615-001 with original box, AC adapter, modem board, swipe cards, and Timekeeper installation guide Kronos 460F Time Clock Terminal front view showing red enclosure, LCD display, numeric keypad, function keys, and magnetic stripe card reader slot
Add to Cart
Quick view

Kronos 460F 8600615-001 Time Clock Terminal Ethernet & 14.4Kbps Modem Series 400

Kronos

$225.00
Was: $450.00
Kronos 460F 8600615-001 Time Clock Terminal Ethernet & 14.4Kbps Modem Series 400Employee time clock terminal designed for the Kronos Series 400 Timekeeper system. Captures employee attendance...
33655
SKU:
33655
Availability:
Usually ships within 1-2 business days.
Weight:
9.00 LBS
Brand:
Kronos
Model:
460F
MPN:
8600615-001
Secondary Model:
Series 400
Type:
Employee Time Clock Terminal
SKU:
33655
Memory:
128K
Ethernet Board Part Number:
6600186-999 Rev B
Modem Option Kit Part Number:
8601183-001
Modem Option Card Part Number:
6600204-001
Modem Speed:
14.4 Kbps
Power Requirements:
120/230 VAC, 60/50 Hz, 150/100 mA
Interface:
Ethernet, RS-232, RS485, Modem
Card Reader Type:
Magnetic Stripe Swipe Card
Display:
LCD
Certifications:
FCC Part 15, UL Listed, CE
Country/Region of Manufacture:
United States
Form Factor:
Desktop / Wall Mount
Condition:
New – Open Box
Seller Notes:
Includes Ethernet board (6600186-999), modem card (6600204-001), AC adapter, swipe cards, quick reference card, installation guide, and tool kit. No software included.
Compatible With:
Kronos Series 400 Timekeeper Systems
Product Line:
Kronos Series 400 Timekeeper
Condition Notes:
Kronos 460F 8600615-001 Time Clock Terminal — new open box in original packaging. Ethernet board (6600186-999) pre-installed. Includes modem kit (8601183-001), AC adapter, swipe cards, installation guide & tool kit. No software.

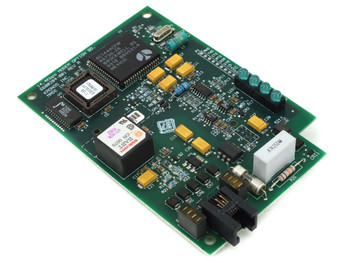

Kronos 6600204-001 14.4Kbps Modem Option Board – front component side with Rockwell modem IC and relay visible Kronos 6600204-001 Modem Option Board – top-down front view showing full PCB layout, modem chip, and edge connectors
Add to Cart
Quick view

Kronos 6600204-001 14.4Kbps Modem Option Board 460F Time Clock 8601183

Kronos

$55.00
Was: $100.00
Kronos 6600204-001 14.4Kbps Modem Option Board 460F Time Clock 8601183Modem option board for the Kronos 460F time clock terminal. Enables dial-up connectivity via 14.4 Kbps data transmission using a...
52753
SKU:
52753
Availability:
Usually ships within 1–2 business days.
Weight:
0.95 LBS
Brand:
Kronos
Model:
6600204-001
MPN:
6600204-001
Secondary Model:
8601183-001
Type:
14.4Kbps Modem Option Board
SKU:
52753
Compatible With:
Kronos 460F Time Clock Terminal
Data Rate:
14.4 Kbps
Modem Chipset:
Rockwell RC144ACFW
Hardware Revision:
Rev A
PCB Reference:
PCCM194V-0
Form Factor:
Card / Module
Country/Region of Manufacture:
United States
Condition:
Used – Pulled from Working Environment
Seller Notes:
Board only; no enclosure. Pulled from a working 460F time clock terminal.
Condition Notes:
Kronos 6600204-001 14.4Kbps Modem Option Board. Inspected, in good condition. Pulled from a working environment where it was in active use. Board is clean with no visible damage. Please view photos and contact us with any questions.

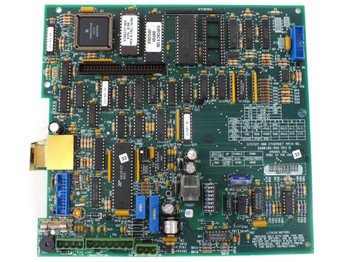

Kronos 6600186-999 System 400 Ethernet Main Board – angled top view showing full PCB layout Kronos 6600186-999 System 400 Ethernet Main Board – top view showing component side with ICs and label
Add to Cart
Quick view

Kronos 6600186-999 System 400 Ethernet Main Board 460F Time Clock Rev B

Kronos

$95.00
Was: $200.00
Kronos 6600186-999 System 400 Ethernet Main Board 460F Time Clock Rev BThe Kronos 6600186-999 is the System 400 Ethernet Main Board for the Kronos 460F Time Clock Terminal. This is the central...
52752
SKU:
52752
Availability:
Usually ships within 1-2 business days.
Weight:
3.00 LBS
Brand:
Kronos
Model:
6600186-999
Secondary Model:
6500186-001
MPN:
6600186-999
SKU:
52752
Type:
Ethernet Main Board / PCB Assembly
Compatible With:
Kronos System 400 / 460F Time Clock Terminal
Hardware Revision:
Rev B
Interface Type:
Ethernet, RS-232, RS-485/Modem
Connector Types:
DIN Power, Terminal Blocks (TB1–TB3), Green Screw Terminals
Serial Interface:
RS-232 / RS-485 / Modem (SW1 selectable)
Main Processor:
Motorola MC68EC000FN8
Secondary Controller:
Zilog Z80 68C681CP (DUART)
Form Factor:
PCB / Card Module
Country/Region of Manufacture:
United States
Condition:
Used – Pulled from Working Environment
Seller Notes:
Board only; no enclosure. Pulled from a working 460F terminal.
Condition Notes:
Kronos 6600186-999 System 400 Ethernet Main Board for 460F inspected and in good condition. Pulled from a working environment where it was in active use and functional. Normal handling wear; no visible damage.
Kronos 8601183-001 14.4Kbps Modem Card shown with original Kronos box, included cable, and modem PCB Kronos 8601183-001 box label showing part number, qty 1, 14.4 modem card, MFG date 9/99, Rev A1, serial number
Add to Cart
Quick view

Kronos 8601183-001 14.4Kbps Modem Card for 460F Time Clock Terminal Rev A1

Kronos

$45.00
Was: $90.00
Kronos 8601183-001 14.4Kbps Modem Card for 460F Time Clock Terminal Rev A1Modem expansion card for Kronos 460F time clock terminals. Enables dial-up data communication at 14.4 Kbps for remote...
21741
SKU:
21741
Availability:
Usually ships within 1–2 business days.
Weight:
3.00 LBS
Brand:
Kronos
Model:
8601183-001
MPN:
8601183-001
Secondary Model:
G000201-001
Type:
Modem Option Card / Expansion Board
SKU:
21741
Compatible With:
Kronos 460F Time Clock Terminal
Data Rate:
14.4 Kbps
Modem Standard:
14.4Kbps
Hardware Revision:
Rev A1
Manufacture Date:
9/99 (September 1999)
Form Factor:
Card / Module
Connector Type:
RJ-11 / RJ-45
Country/Region of Manufacture:
USA
Condition:
New – Original Box, Long-Term Storage
Seller Notes:
Includes modem board, phone/data cable, and installation guide
Condition Notes:
Kronos 8601183-001 14.4Kbps Modem Card, new in original box. Manufactured 9/99; new-old-stock, stored since manufacture. Uninstalled, no signs of use. Includes modem board, cable, and installation guide.
