Kronos

Kronos

  • Kronos 6600204-001 14.4Kbps Modem Option Board – front component side with Rockwell modem IC and relay visible Kronos 6600204-001 Modem Option Board – top-down front view showing full PCB layout, modem chip, and edge connectors

    Kronos 6600204-001 14.4Kbps Modem Option Board 460F Time Clock 8601183

    Kronos

    $55.00
    Was: $100.00
    Kronos 6600204-001 14.4Kbps Modem Option Board 460F Time Clock 8601183Modem option board for the Kronos 460F time clock terminal. Enables dial-up connectivity via 14.4 Kbps data transmission using a...
    52753
    SKU:
    52753
    Availability:
    Usually ships within 1–2 business days.
    Weight:
    0.95 LBS
    Brand:
    Kronos
    Model:
    6600204-001
    MPN:
    6600204-001
    Secondary Model:
    8601183-001
    Type:
    14.4Kbps Modem Option Board
    SKU:
    52753
    Compatible With:
    Kronos 460F Time Clock Terminal
    Data Rate:
    14.4 Kbps
    Modem Chipset:
    Rockwell RC144ACFW
    Hardware Revision:
    Rev A
    PCB Reference:
    PCCM194V-0
    Form Factor:
    Card / Module
    Country/Region of Manufacture:
    United States
    Condition:
    Used – Pulled from Working Environment
    Seller Notes:
    Board only; no enclosure. Pulled from a working 460F time clock terminal.
    Condition Notes:
    Kronos 6600204-001 14.4Kbps Modem Option Board. Inspected, in good condition. Pulled from a working environment where it was in active use. Board is clean with no visible damage. Please view photos and contact us with any questions.
    $55.00
    Was: $100.00
  • Kronos 6600186-999 System 400 Ethernet Main Board – angled top view showing full PCB layout Kronos 6600186-999 System 400 Ethernet Main Board – top view showing component side with ICs and label

    Kronos 6600186-999 System 400 Ethernet Main Board 460F Time Clock Rev B

    Kronos

    $95.00
    Was: $200.00
    Kronos 6600186-999 System 400 Ethernet Main Board 460F Time Clock Rev BThe Kronos 6600186-999 is the System 400 Ethernet Main Board for the Kronos 460F Time Clock Terminal. This is the central...
    52752
    SKU:
    52752
    Availability:
    Usually ships within 1-2 business days.
    Weight:
    3.00 LBS
    Brand:
    Kronos
    Model:
    6600186-999
    Secondary Model:
    6500186-001
    MPN:
    6600186-999
    SKU:
    52752
    Type:
    Ethernet Main Board / PCB Assembly
    Compatible With:
    Kronos System 400 / 460F Time Clock Terminal
    Hardware Revision:
    Rev B
    Interface Type:
    Ethernet, RS-232, RS-485/Modem
    Connector Types:
    DIN Power, Terminal Blocks (TB1–TB3), Green Screw Terminals
    Serial Interface:
    RS-232 / RS-485 / Modem (SW1 selectable)
    Main Processor:
    Motorola MC68EC000FN8
    Secondary Controller:
    Zilog Z80 68C681CP (DUART)
    Form Factor:
    PCB / Card Module
    Country/Region of Manufacture:
    United States
    Condition:
    Used – Pulled from Working Environment
    Seller Notes:
    Board only; no enclosure. Pulled from a working 460F terminal.
    Condition Notes:
    Kronos 6600186-999 System 400 Ethernet Main Board for 460F inspected and in good condition. Pulled from a working environment where it was in active use and functional. Normal handling wear; no visible damage.
    $95.00
    Was: $200.00
  • Kronos 6600167-999 System 400 Battery Backup Board front view with green terminal connector and attached wire harnesses Kronos 6600167-999 System 400 Battery Backup Board reverse side showing PCB traces and wire harness connections

    Kronos 6600167-999 System 400 Battery Backup Board 460F Time Clock w/ Wires

    Kronos

    $25.00
    Was: $50.00
    Kronos 6600167-999 System 400 Battery Backup Board 460F Time Clock w/ WiresBattery backup board for Kronos System 400 time clocks. Maintains system operation during power loss and protects data...
    51597
    SKU:
    51597
    Availability:
    Usually ships within 1–2 business days.
    Weight:
    0.45 LBS
    Brand:
    Kronos
    Model:
    6600167-999
    MPN:
    6600167-999
    Secondary Model:
    6500167-001
    Type:
    Battery Backup Board
    SKU:
    51597
    Compatible With:
    Kronos System 400, Kronos 460F Time Clock
    Board Revision:
    Rev C
    Included Wire Harness 1:
    3600397-001 Rev C
    Included Wire Harness 2:
    3600423-001 Rev B
    Refurbish Kit Part Number:
    8600670-001
    Battery Fuse Rating:
    F5.0A / 125V
    Connector Type:
    Green 3-position terminal block; spade wire terminals
    Form Factor:
    PCB / Card
    Country/Region of Manufacture:
    United States
    Condition:
    Used – Pulled from Working Environment
    Seller Notes:
    Includes board 6600167-999 and wires 3600397-001 & 3600423-001
    Condition Notes:
    Kronos 6600167-999 System 400 Battery Backup Board pulled from a working Kronos 460F time clock removed from service due to upgrade. Good used condition. Includes wire harnesses 3600397-001 & 3600423-001.
    $25.00
    Was: $50.00

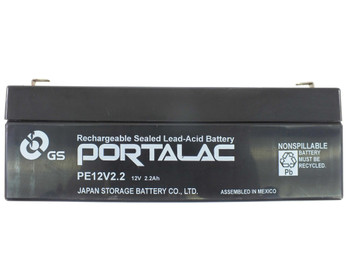

  • Kronos 8600670-001 Sys 400 Battery Backup Kit — full kit showing GS Portalac PE12V2.2 battery and backup board with harness cables GS Portalac PE12V2.2 12V 2.2Ah sealed lead-acid battery front label view showing model and voltage markings

    Kronos 8600670-001 Sys 400 Battery Backup Kit Board 6600167-999 12V PE12V2.2

    Kronos

    $45.00
    Was: $90.00
    Kronos 8600670-001 Sys 400 Battery Backup Kit Board 6600167-999 12V PE12V2.2Battery backup kit for Kronos System 400 time clocks. Maintains system operation during power loss by providing emergency...
    31983
    SKU:
    31983
    Availability:
    Usually ships within 1-2 business days.
    Weight:
    4.00 LBS
    Brand:
    Kronos
    Model:
    8600670-001
    MPN:
    8600670-001
    Secondary Model:
    6600167-999
    Type:
    Battery Backup Kit
    SKU:
    31983
    Compatible With:
    Kronos System 400 (Sys 400) Time Clocks
    Includes:
    Backup board 6600167-999 Rev C, GS Portalac PE12V2.2 battery, harness cables
    Battery Model:
    GS Portalac PE12V2.2
    Battery Voltage:
    12V
    Battery Capacity:
    2.2Ah
    Battery Type:
    Rechargeable Sealed Lead-Acid (VRLA)
    Battery Brand:
    GS Portalac / Japan Storage Battery Co., Ltd.
    Board Part Number:
    6600167-999 / 6500167-001 Rev C
    Board Revision:
    Rev C
    Cable Part Number 1:
    3600397-001 Rev C
    Cable Part Number 2:
    3600423-001 Rev B
    Battery Fuse Rating:
    F5.0A / 125V
    Connector Type:
    Green screw-terminal block (AUX OUT), spade terminals
    Country/Region of Manufacture:
    USA (board); Mexico (battery)
    Condition:
    Used – Pulled from Working Environment
    Seller Notes:
    Includes backup board, GS Portalac 12V 2.2Ah battery, and harness cables. Battery is used; remaining life unknown.
    Condition Notes:
    Kronos 8600670-001 Sys 400 Battery Backup Kit — inspected, good used condition, pulled from working environment. Backup board and cables show normal wear. Included PE12V2.2 battery is used; remaining life unknown.
    $45.00
    Was: $90.00
  • Kronos 8601183-001 14.4Kbps Modem Card shown with original Kronos box, included cable, and modem PCB Kronos 8601183-001 box label showing part number, qty 1, 14.4 modem card, MFG date 9/99, Rev A1, serial number

    Kronos 8601183-001 14.4Kbps Modem Card for 460F Time Clock Terminal Rev A1

    Kronos

    $45.00
    Was: $90.00
    Kronos 8601183-001 14.4Kbps Modem Card for 460F Time Clock Terminal Rev A1Modem expansion card for Kronos 460F time clock terminals. Enables dial-up data communication at 14.4 Kbps for remote...
    21741
    SKU:
    21741
    Availability:
    Usually ships within 1–2 business days.
    Weight:
    3.00 LBS
    Brand:
    Kronos
    Model:
    8601183-001
    MPN:
    8601183-001
    Secondary Model:
    G000201-001
    Type:
    Modem Option Card / Expansion Board
    SKU:
    21741
    Compatible With:
    Kronos 460F Time Clock Terminal
    Data Rate:
    14.4 Kbps
    Modem Standard:
    14.4Kbps
    Hardware Revision:
    Rev A1
    Manufacture Date:
    9/99 (September 1999)
    Form Factor:
    Card / Module
    Connector Type:
    RJ-11 / RJ-45
    Country/Region of Manufacture:
    USA
    Condition:
    New – Original Box, Long-Term Storage
    Seller Notes:
    Includes modem board, phone/data cable, and installation guide
    Condition Notes:
    Kronos 8601183-001 14.4Kbps Modem Card, new in original box. Manufactured 9/99; new-old-stock, stored since manufacture. Uninstalled, no signs of use. Includes modem board, cable, and installation guide.
    $45.00
    Was: $90.00
