KMW 140223-2 Rev 2 RF Coaxial Cable 7in SMA Male Braided Microwave Assembly
The KMW 140223-2 Rev 2 is a short flexible RF coaxial cable assembly measuring approximately 7 inches in length. It features a braided stainless steel outer jacket for flexibility and shielding, a gold-plated panel-mount male connector on one end, and an SMA male connector on the other. It is designed for RF and microwave signal routing in applications where a compact, flexible interconnect is needed between components or between a panel bulkhead and an internal RF path.
Specifications & What's Included
- Manufacturer: KMW
- Part Number: 140223-2
- Revision: Rev 2
- Cable length: approximately 7 inches (~178 mm)
- Cable jacket: braided stainless steel flexible outer construction
- Connector end 1: gold-plated panel-mount male RF connector with white PTFE dielectric and center pin

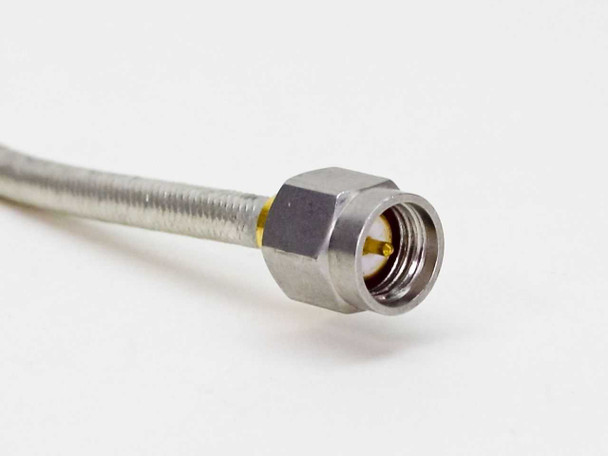

- Connector end 2: SMA male connector with stainless hex body and gold center pin
- Quantity: 1 cable assembly
Applications
Short semi-flexible RF cable assemblies of this type are used in microwave and RF systems to route signals between internal components, circuit boards, or modules and panel-mounted connectors. The braided construction allows the cable to flex and route within tight enclosures while maintaining shielding integrity. SMA connectors are a standard interface in RF and microwave work up through several GHz, commonly found in test equipment, wireless infrastructure, radar, communications hardware, and laboratory setups. Panel-mount male connectors on one end allow the assembly to feed through a chassis wall, making this style of cable a typical internal jumper in RF subassemblies and telecom equipment. KMW is known for producing RF components used in wireless infrastructure and communications hardware.
⚠️ CONDITION CONFLICT — NEEDS HUMAN REVIEW BEFORE PUBLISHING: The existing listing assigns eBay condition 'For Parts or Not Working' but the condition prose states 'This item has been tested to be in working order.' These two statements directly contradict each other. Please inspect the physical unit and determine the correct condition: if the cable tests good, update the eBay condition to 'Used' and use the working-condition prose below; if there is a known fault, update the prose to describe it and retain 'For Parts or Not Working.' IF WORKING: This KMW 140223-2 Rev 2 RF coaxial cable assembly has been inspected and tested and is in good working order. The braided stainless jacket is intact, and both the gold panel-mount male connector and the SMA male connector appear undamaged. Please view our photo set and contact us if you have any questions. IF FOR PARTS: This KMW 140223-2 Rev 2 RF coaxial cable assembly is being sold AS-IS for parts or repair. The specific fault has not been documented; please review the photos and contact us with any questions before purchasing. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
KMW |
Model: |
140223-2 |
MPN: |
140223-2 |
Secondary Model: |
Rev 2 |
SKU: |
36981 |
Type: |
RF Coaxial Cable Assembly |
Connector 1: |
Panel-Mount Male (gold-plated, center pin) |
Connector 2: |
SMA Male |
Cable Length: |
7 inches (approx. 178 mm) |
Cable Jacket: |
Braided stainless steel flexible outer jacket |
Application: |
Microwave / RF Interconnect |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Sold as a single RF cable assembly, no accessories included. |
Condition Notes: |
⚠️ CONDITION CONFLICT — HUMAN REVIEW NEEDED: Listing coded 'For Parts or Not Working' but prose says 'tested to be in working order.' Verify physical condition before publishing. |
