Times Microwave SMA-Male to SMA-Female Coaxial RF Cable ~8 ft RG174

Times Microwave SMA-Male to SMA-Female Coaxial RF Cable ~8 ft RG174

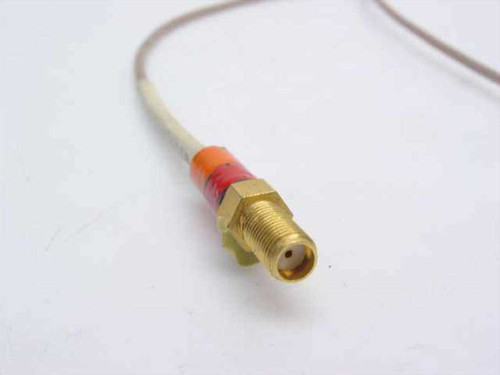

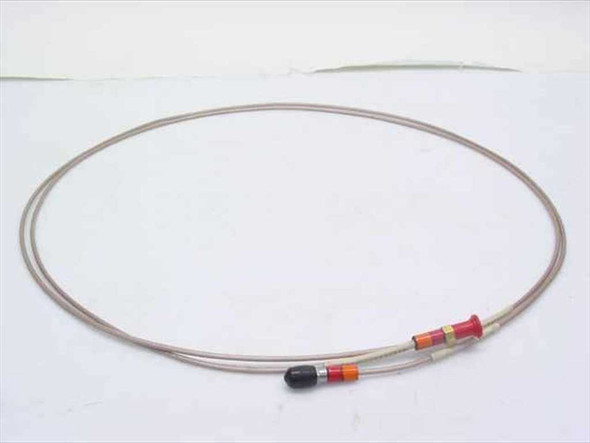

This is a Times Microwave coaxial RF cable terminated with an SMA Male connector on one end and an SMA Female connector on the other. The cable measures approximately 8 feet (205–210 cm) in length and is built on RG174-type coaxial construction with a 1/8-inch outer diameter. Both connectors feature color-coded strain relief bands for easy end identification. The female end uses a gold-plated SMA connector; the male end is a standard nickel-body SMA plug.

Specifications & What's Included

• Connector A: SMA Male (SMA-M)
• Connector B: SMA Female (SMA-F)
• Cable Length: Approximately 8 ft (205–210 cm)
• Cable Type: RG174-type coaxial
• Outer Diameter: 1/8 inch
• Female connector: Gold-plated SMA body
• Male connector: Nickel-body SMA plug with center pin
• Strain relief: Color-banded sleeves on both ends (green/orange on male; blue/black on female)
• Included: Cable only; no additional accessories

Applications

SMA coaxial jumper cables like this one are standard interconnects in RF and microwave systems operating from DC through several GHz. They are commonly used to connect antennas to transceivers, route signals between RF test instruments (spectrum analyzers, signal generators, network analyzers), and link components on RF bench setups and prototype boards. The SMA connector is a 50-ohm threaded interface widely used in laboratory, telecommunications, defense, and wireless communications equipment. RG174-type cables are lightweight and flexible, making them well suited for bench use, equipment interconnection, and short RF runs where low bulk and easy routing matter. Times Microwave Systems is a well-known U.S. manufacturer of coaxial cable assemblies and RF interconnects serving military, aerospace, and commercial RF markets.
