Keltec Florida CR683-75 C-Band TWT Amplifier Thomson-CSF TH3641 TWTA 5850-6425MHz
C-Band traveling wave tube amplifier (TWTA) manufactured by Keltec Florida in 1986. Operates in the 5850–6425 MHz frequency range with rated output power of 48.75 dBm and requires +6.4 dBm drive power.
Specifications & What's Included
- Model: CR683-75 / Secondary Model: 863000
- TWT Tube: Thomson-CSF TH3641
- Frequency Range: 5850–6425 MHz (C-Band)
- Output Power (rated): 48.75 dBm
- Drive Power: +6.4 dBm
- Filament Hours: 829 (meter-read)
- RF Connectors: SMA/coax (input J3, output J4)
- Cooling: Rear-mounted fan
- Front panel controls and indicators including helix current meter, thermal monitoring, and elapsed time meter
Applications
C-Band TWTAs were standard components in satellite ground station uplink systems and telecom transmitters. This unit type provided high-gain RF amplification for uplink signals to geostationary satellites. Commonly integrated into larger earth station transmit chains where signal conditioning and linear amplification were required across the C-Band frequency allocation.
Condition: For Parts or Not Working

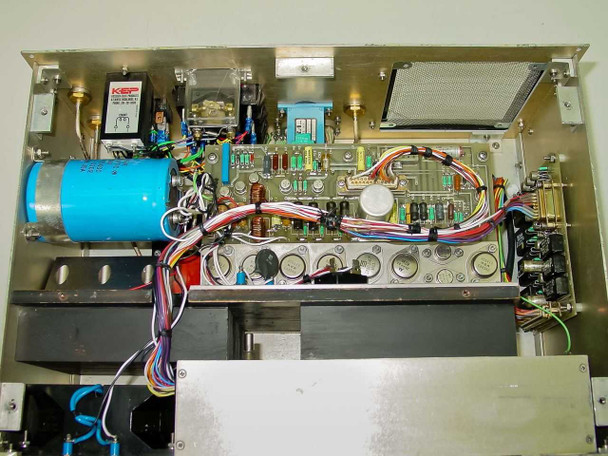

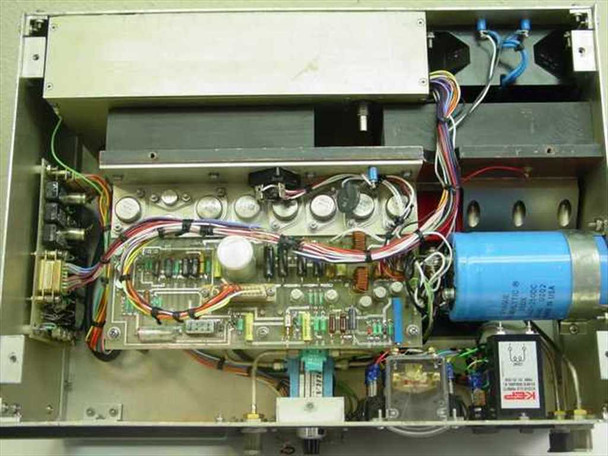

This Keltec Florida CR683-75 C-Band Traveling Wave Tube Amplifier powers on but produces no RF output and is being sold as-is for parts or repair. The filament elapsed time meter reads 829 hours on the Thomson-CSF TH3641 TWT tube (D/C 84-21, S/N 366-011). The unit powers up and the front-panel indicators and controls appear functional, but no RF output is present at J4 or J5. The chassis is complete with all internal components visibly intact, including the TWT tube assembly, main control board, and Sprague Powerlytic filter capacitor. It has not been bench-tested beyond confirming power-on behavior, and no output performance can be guaranteed. The unit is sold strictly as-is — no functionality warranty is expressed or implied. Please view our photo set and contact us if you have any questions.
This Keltec Florida CR683-75 C-Band Traveling Wave Tube Amplifier powers on but produces no RF output and is being sold as-is for parts or repair. The filament elapsed time meter reads 829 hours on the Thomson-CSF TH3641 TWT tube (D/C 84-21, S/N 366-011). The unit powers up and the front-panel indicators and controls appear functional, but no RF output is present at J4 or J5. The chassis is complete with all internal components visibly intact, including the TWT tube assembly, main control board, and Sprague Powerlytic filter capacitor. It has not been bench-tested beyond confirming power-on behavior, and no output performance can be guaranteed. The unit is sold strictly as-is — no functionality warranty is expressed or implied. Please view our photo set and contact us if you have any questions.
