Keithley PCIP-RES PC7672 14164 ISA Resistance Card Metrabyte DAQ Rev 2
ISA full-length resistance measurement card designed for the Keithley Metrabyte PC7672 data acquisition system. Measures resistance and integrates into legacy PC-based DAQ setups via Industry Standard Architecture bus interface.
Specifications & What's Included
- Model: PCIP-RES / Secondary Model: PC7672 / PN: 14164
- Hardware Revision: REV 2
- Form Factor: Full-length ISA card
- Bus Interface: ISA (Industry Standard Architecture)

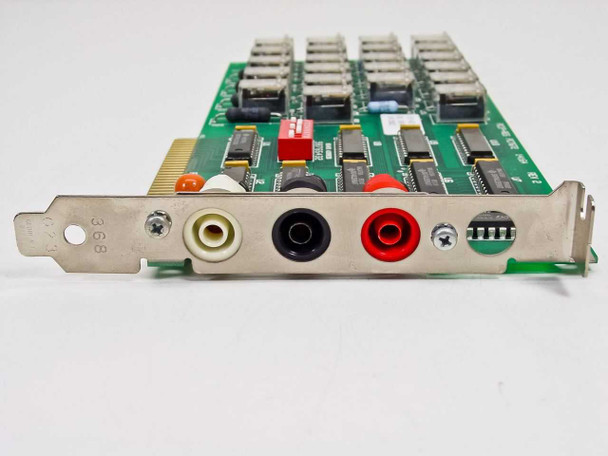

- Output: Banana jacks (red/black/white) on bracket

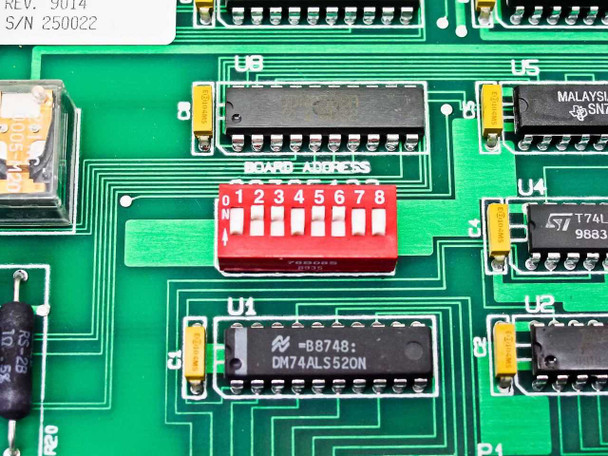

- Board Address: Configurable via 8-position DIP switch
- Chipset: UDN2596A, DM74ALS520N, SN74 series logic ICs
- Card only; no cables or accessories included
Applications
Resistance measurement and data acquisition in legacy industrial and telecommunications test systems. Installed in Keithley Metrabyte PC7672 DAQ platforms used for laboratory and field measurement. Typical use includes resistance monitoring, sensor interfacing, and multichannel data logging in systems deployed from the 1980s through early 2000s.
Condition: Used

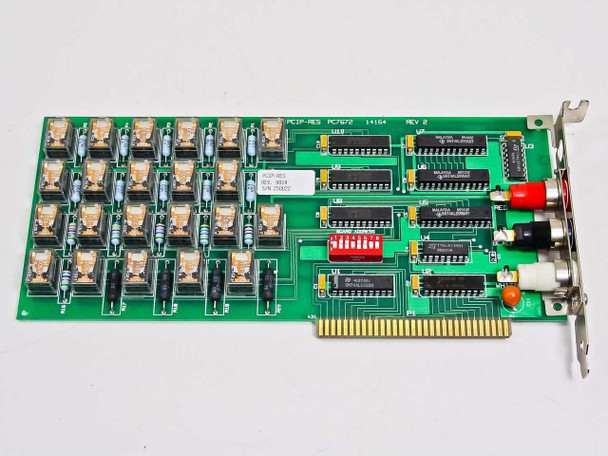

This Keithley PCIP-RES PC7672 ISA resistance measurement card (PN 14164, Rev 2) has been inspected and appears to be in good condition. The PCB is clean with no obvious damage, broken traces, or missing components. The relay array, ICs, DIP switches, and bracket-mounted banana jacks all appear intact. Normal light handling marks may be present. Card only — no cables or accessories are included. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
This Keithley PCIP-RES PC7672 ISA resistance measurement card (PN 14164, Rev 2) has been inspected and appears to be in good condition. The PCB is clean with no obvious damage, broken traces, or missing components. The relay array, ICs, DIP switches, and bracket-mounted banana jacks all appear intact. Normal light handling marks may be present. Card only — no cables or accessories are included. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
