Keithley PC7422 PCIP-CNTR Counter TCXO Board 14150 Rev 4 Metrabyte 10MHz ISA

(No reviews yet) Write a Review
SKU:
43007
MPN:
PC7422
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
3.00 LBS
Shipping:
Calculated at Checkout

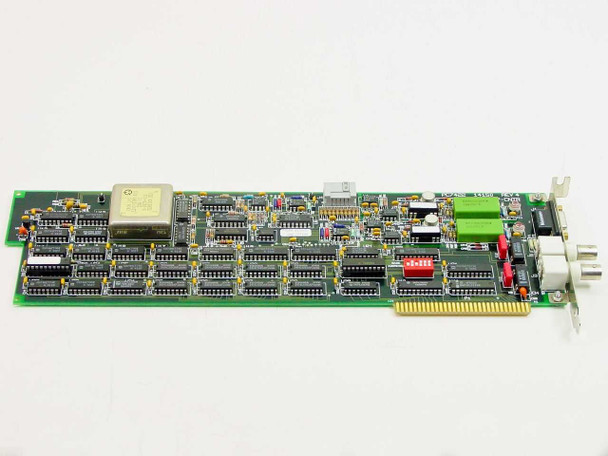

  • Keithley PC7422 PCIP-CNTR Counter TCXO ISA board – full top-side component view
  • Keithley PC7422 PCIP-CNTR ISA board – solder-side (bottom) view

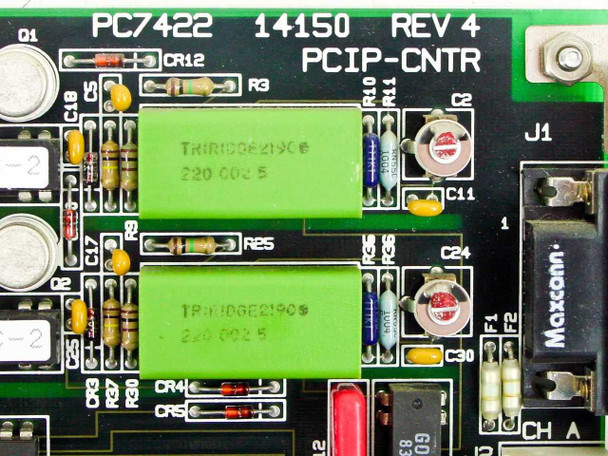

  • Keithley PC7422 board close-up – PCB silkscreen showing PC7422, 14150, REV 4, PCIP-CNTR markings with green capacitors and Maxconn connector

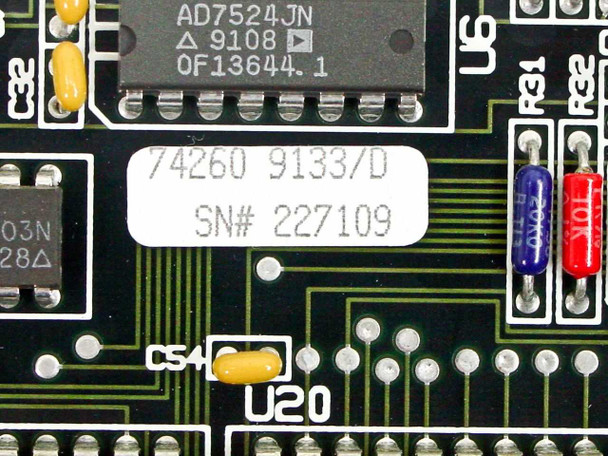

  • Keithley PC7422 board close-up – label showing 74260 9133/D, serial number SN# 227109, and AD7524JN DAC chip

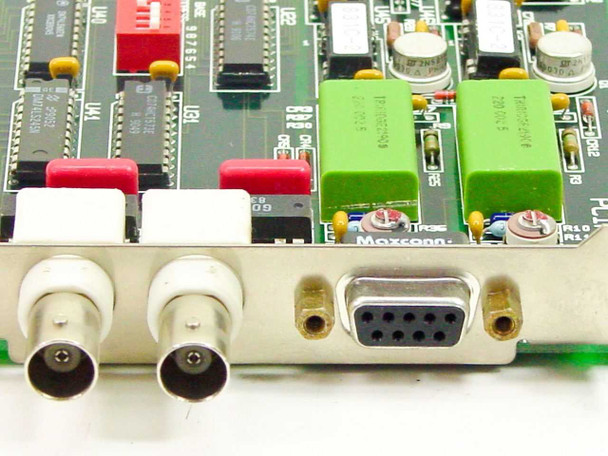

  • Keithley PC7422 PCIP-CNTR bracket end – two BNC connectors and DB9 female connector on rear bracket

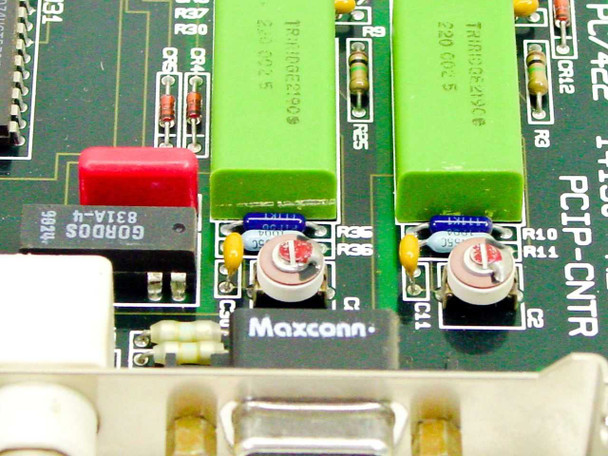

  • Keithley PC7422 board close-up – GORDOS 8631A-4 component, Maxconn label, green TCXO capacitors and trim pots visible
$110.00
Was: $225.00
Current Stock: 1

Sold Out

Description

Keithley PC7422 PCIP-CNTR Counter TCXO Board 14150 Rev 4 Metrabyte 10MHz ISA

ISA expansion board featuring a 10 MHz temperature-compensated crystal oscillator and counter functionality. Designed for the Keithley 7500-XC-001 Metrabyte Computer system.

Specifications & What's Included

  • Model: PC7422 (MPN 14150, Rev 4)
  • Form Factor: ISA (PC/AT Bus) expansion card
  • Oscillator: 10 MHz TCXO (CTS Knights 970-4248-0)
  • DAC: Analog Devices AD7524JN
  • Connectors: 2x BNC, 1x DB9
  • Board only, no cables or documentation included

Applications

Counter and timing boards with TCXO oscillators were used in precision measurement and test equipment, telecommunications systems, and industrial control applications requiring stable frequency references. This board was integrated into the Keithley 7500-XC-001 measurement system, a modular platform used in laboratory and field test environments through the 1990s and 2000s.

Condition: Used
This Keithley PC7422 PCIP-CNTR Counter/TCXO ISA board has been inspected and is in good condition. It was pulled from a Keithley 7500-XC-001 Metrabyte Computer that was in active use and functional at the time of removal. The board shows normal light wear consistent with bench use. PCB traces, components, and the rear-bracket connectors (BNC and DB9) all appear clean and undamaged. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Keithley
Model:
PC7422
MPN:
14150
Secondary Model:
74260 9133/D
Type:
Counter/TCXO ISA Expansion Board
SKU:
43007
Condition:
Used – Pulled from Working Environment
Seller Notes:
Board only; pulled from working Keithley 7500-XC-001 Metrabyte Computer
Compatible With:
Keithley 7500-XC-001 Metrabyte Computer
Form Factor:
ISA Card
Oscillator Frequency:
10 MHz
Oscillator Type:
TCXO (Temperature-Compensated Crystal Oscillator)
Oscillator Manufacturer:
CTS Knights
Oscillator Part Number:
970-4248-0
PCB Revision:
Rev 4
Interface:
ISA (PC/AT Bus)
Connectors:
2x BNC, 1x DB9
DAC:
Analog Devices AD7524JN
Country/Region of Manufacture:
United States
Condition Notes:
Keithley PC7422 PCIP-CNTR Counter/TCXO ISA board in good used condition. Pulled from a working Keithley 7500-XC-001 Metrabyte Computer. Board and connectors appear clean with normal light wear.
