Keithley

Keithley PC 6292 14026 REV C MAI-16 I/O Controller Board FSI Semiconductor

(No reviews yet) Write a Review
SKU:
45788
MPN:
PC 6292
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
3.00 LBS
Shipping:
Calculated at Checkout

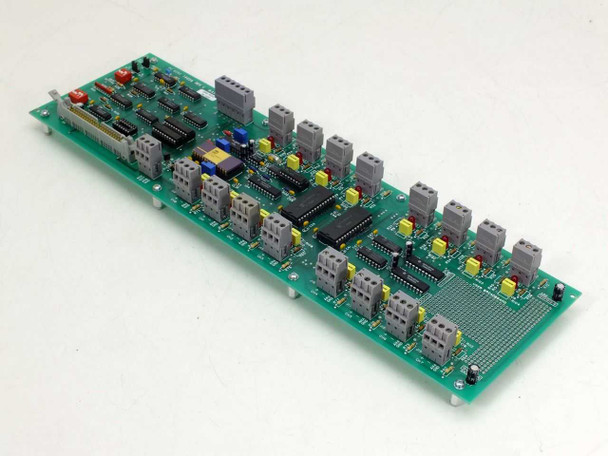

  • Keithley PC 6292 14026 REV C MAI-16 I/O Controller Board – top component side view showing terminal blocks and ICs

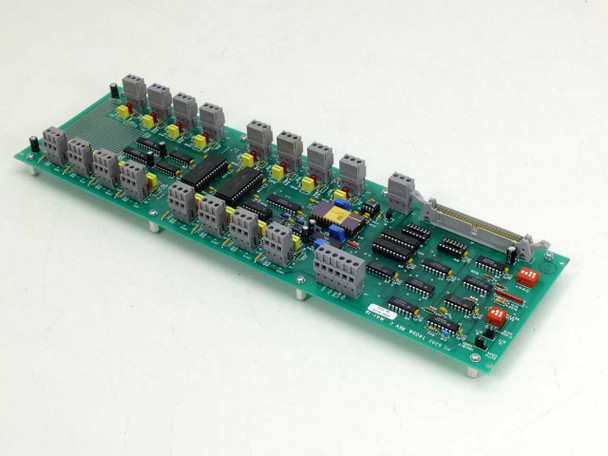

  • Keithley PC 6292 MAI-16 I/O Controller Board – angled top view showing edge connector and full board layout

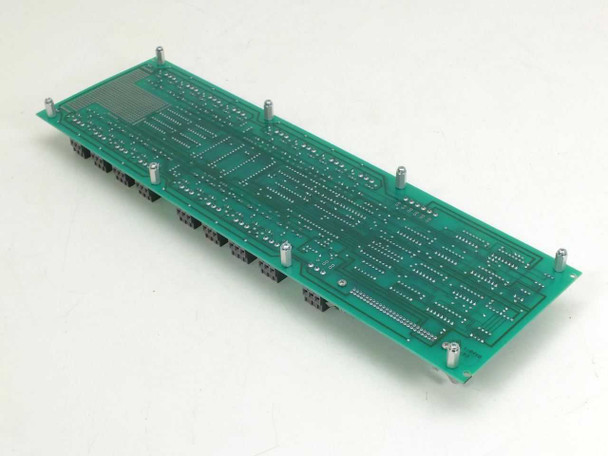

  • Keithley PC 6292 MAI-16 I/O Controller Board – solder side / bottom view showing PCB traces and standoffs

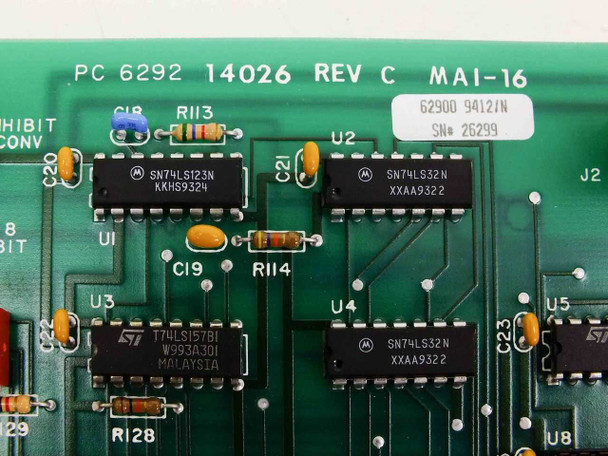

  • Keithley PC 6292 14026 REV C MAI-16 close-up of board label and ICs including Motorola SN74LS32N and ST 74LS157B1
$200.00
Was: $400.00
Current Stock: 1

Sold Out

Description

Keithley PC 6292 14026 REV C MAI-16 I/O Controller Board FSI Semiconductor

Multi-channel I/O controller board designed for FSI semiconductor processing units. Manages analog and digital input/output functions for process control and equipment automation in semiconductor manufacturing environments.

Specifications & What's Included

  • Model: PC 6292 (MPN 14026)
  • Revision: REV C, Secondary Model MAI-16
  • Interface: Multi-channel analog/digital I/O
  • Key ICs: Motorola SN74LS32N, ST 74LS157B1
  • Form Factor: PCB card module
  • Manufactured in United States
  • Board only (no housing or cables)

Applications

This board type is used in FSI semiconductor processing systems to control and monitor multiple input/output channels during wafer processing. Keithley controller boards function as interface components between measurement instruments and process equipment, routing signals for temperature monitoring, gas flow control, and equipment status feedback. Typically integrated into automated semiconductor manufacturing stations where real-time process data acquisition and control are required.

Condition: Used
This Keithley PC 6292 14026 REV C MAI-16 I/O Controller Board has been inspected and is in good condition. It was pulled from a working FSI semiconductor system where it was in active use and functional. The board is clean overall, with no visible damage, broken traces, or missing components. Terminal blocks and ICs appear intact. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Keithley
Model:
PC 6292
MPN:
14026
Secondary Model:
MAI-16
Hardware Revision:
REV C
Type:
I/O Controller Board
SKU:
45788
Condition:
Used – Pulled from Working Environment
Form Factor:
PCB / Card Module
Compatible With:
FSI Semiconductor Processing Unit
Application:
Semiconductor Process Control, I/O Control
Interface Type:
Multi-channel analog/digital I/O
ICs / Chipset:
Motorola SN74LS32N, ST 74LS157B1
Seller Notes:
Board only; pulled from FSI semiconductor unit
Country/Region of Manufacture:
United States
Condition Notes:
Keithley PC 6292 14026 REV C MAI-16 I/O Controller Board. Pulled from a working FSI semiconductor unit; inspected and in good condition. Board is clean with intact components and terminal blocks.
View AllClose

Related Products

Related Products

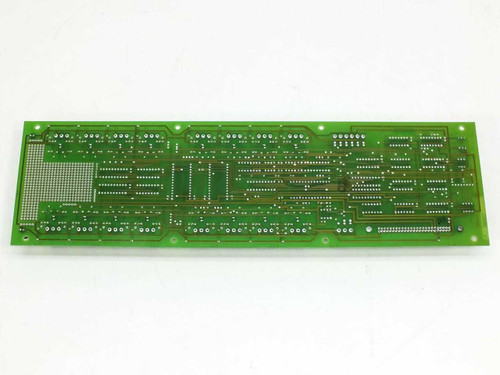

Keithley PC 6292 Rev B Metrabus A/D Board 62900 9310/K — full top-side view showing green PCB with screw terminal connectors and ICs Keithley PC 6292 Rev B Metrabus A/D Board — bottom (solder side) view of PCB showing trace routing
Add to Cart
Quick view

Keithley PC 6292 Rev B Metrabus A/D Board 62900 9310/K 5192 I/O Card

Keithley

$74.00
Was: $274.00
Keithley PC 6292 Rev B Metrabus A/D Board 62900 9310/K 5192 I/O Card The Keithley PC 6292 is an analog-to-digital (A/D) input/output board designed for use with Keithley's Metrabus data acquisition...
45766
SKU:
45766
Availability:
Usually ships within 1-2 business days.
Weight:
3.00 LBS
Brand:
Keithley
Model:
PC 6292
MPN:
62900 9310/K
Secondary Model:
5192
Hardware Revision:
Rev B
Type:
Analog-to-Digital (A/D) I/O Expansion Board
SKU:
45766
Condition:
Used – Pulled from Working Environment
Seller Notes:
Board only; pulled from a working Metrabus system environment
Form Factor:
Card / Module (PCB)
Bus Interface:
Metrabus
Interface Type:
Metrabus
Application:
Data Acquisition, Analog Input, I/O Expansion
Compatible With:
Keithley Metrabus Data Acquisition Systems
Country/Region of Manufacture:
United States
Condition Notes:
Keithley PC 6292 Rev B Metrabus A/D Board (62900 9310/K) inspected and in good used condition. Pulled from a working environment where it was in active use. PCB shows normal wear; all components and connectors appear intact.

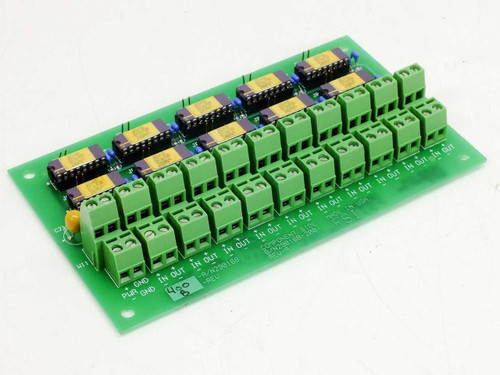

FSI 290168-400 Mercury Interface PCB front component side showing relay ICs and green screw terminal blocks FSI 290168-400 Mercury Interface PCB top view showing labeled In Out screw terminals and relay modules across board
