Keithley

Keithley 7710 20-Channel Thermocouple Scanner Card Module 60V 0.1A

(No reviews yet) Write a Review
SKU:
53376
MPN:
7710
Condition:
Used
Availability:
Usually ships within 1–2 business days.
Weight:
2.00 LBS
Shipping:
Calculated at Checkout
  • Keithley 7710 thermocouple scanner card — close-up of left connector end showing Max Rating 60V 0.1A label and Made in USA marking
  • Keithley 7710 20-channel thermocouple scanner card — model label reading 7710 20 CHAN THERMOCOUPLE with yellow caution sticker visible

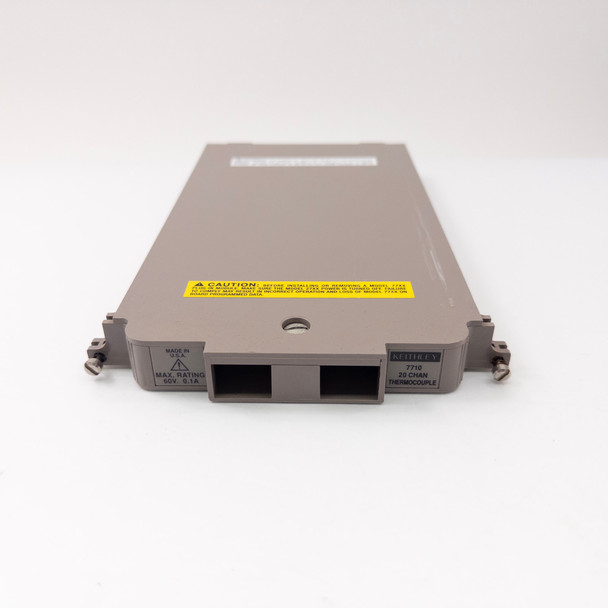

  • Keithley 7710 scanner module — full front view showing both card-edge connectors and rating plate on tan plastic housing
  • Keithley 7710 scanner card — rear/back face view showing barcode label and card retention hardware
  • Keithley 7710 20-channel thermocouple scanner card — bottom face view showing yellow caution warning label and retention screw
$395.00
Was: $800.00
Current Stock: 1

Sold Out

Description

Keithley 7710 20-Channel Thermocouple Scanner Card Module 60V 0.1A

Plug-in scanner card for Keithley 7700-Series mainframes. Multiplexes 20 thermocouple input channels for temperature data acquisition and measurement in automated test systems.

Specifications & What's Included

  • 20 thermocouple input channels
  • 60V maximum voltage rating; 0.1A maximum current
  • Proprietary Keithley 77xx slot interface
  • Compatible with Keithley 2700, 2701, 2750 mainframes
  • Module only -- no cables or mainframe included
  • United States manufacture

Applications

This card type is used for temperature scanning and thermocouple multiplexing in laboratory and industrial data acquisition systems. The 7700-Series architecture supports stacking multiple scanner cards to expand channel count. Common applications include thermal testing, process monitoring, and multi-point temperature logging where automated switching between channels is required.

Condition: Used
This Keithley 7710 20-Channel Thermocouple Scanner Card has been pulled from a working environment where it was previously in use. The module has been visually inspected and photographed. The housing is in good condition with light handling marks consistent with normal use. The card-edge connectors appear clean and undamaged. Some cosmetic wear may be present -- please review all photos for a complete picture of the item's condition. Please contact us with any questions before purchasing.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Keithley
Model:
7710
MPN:
7710
Type:
20-Channel Thermocouple Scanner Card / Plug-In Module
SKU:
53376
Condition:
Used – Pulled from Working Environment
Seller Notes:
Module only — no cables or mainframe included.
Country/Region of Manufacture:
United States
Form Factor:
Plug-In Card / Module
Max Voltage Rating:
60V
Max Current Rating:
0.1A
Number of Channels:
20
Measurement Type:
Thermocouple / Temperature
Compatible With:
Keithley 7700-Series Mainframes (e.g. 2700, 2701, 2750)
Interface Type:
Plug-In Card — proprietary Keithley 77xx slot
Application:
Data Acquisition, Temperature Scanning, Thermocouple Multiplexing
Condition Notes:
Keithley 7710 20-Chan Thermocouple Scanner Card. Pulled from working environment, visually inspected. Housing in good condition, connectors appear clean. Light wear typical of used equipment.
View AllClose
