Keithley AMC ELM Electronics ACM Card INA106KP Multi-Channel Analog Module

(No reviews yet) Write a Review
SKU:
46527
MPN:
ACM
Condition:
Used
Availability:
Usually ships within 1–2 business days.
Weight:
1.00 LBS
Shipping:
Calculated at Checkout
  • Keithley AMC ELM Electronics ACM analog card — front (component side) showing populated PCB with DIP ICs, transistors, and DIP switches
  • Keithley AMC ELM Electronics ACM card — reverse (solder side) showing clean PCB traces and rear card-edge connector
  • Keithley AMC ELM Electronics ACM card — full front view with AMC ELM Electronics 6-3-96 date code and serial number visible in top-right corner
  • Keithley AMC ELM Electronics ACM card — angled close-up of component side showing card-edge connector and DIP IC array
  • Keithley AMC ELM Electronics ACM card — close-up of upper channel section showing Ch1V, Ch2V, Ch3V labels, INA106KP and DIP op-amp ICs, and Iadj transistors

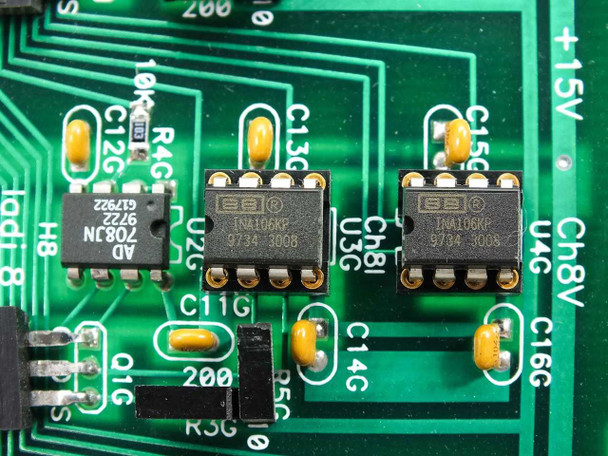

  • Keithley AMC ELM Electronics ACM card — macro close-up showing Burr-Brown INA106KP instrumentation amp ICs (date code 9734 3008) and AD708JN op-amp (date code 67922)
$55.00
Was: $100.00
Current Stock: 24

Sold Out

Description

Keithley AMC ELM Electronics ACM Card INA106KP Multi-Channel Analog Module

Plug-in analog measurement card for Keithley AMC data acquisition systems. Provides 10 channels of analog signal conditioning using Burr-Brown INA106KP instrumentation amplifiers and AD708JN op-amps.

Specifications & What's Included

  • Model: ACM (Keithley AMC system module)
  • 10 analog input channels (Ch1V–Ch10)
  • Primary IC: INA106KP instrumentation amplifier
  • Secondary IC: AD708JN operational amplifier
  • High-density card-edge connector
  • Manufactured by ELM Electronics, 1996
  • Card only

Applications

Keithley AMC analog cards were used in laboratory and industrial data acquisition systems for precise multi-channel analog signal measurement and conditioning. These modules fit into Keithley AMC chassis slots alongside digital I/O and timing modules. Common applications included test equipment integration, sensor signal conditioning, and instrumentation systems requiring multiple synchronized analog input channels.

Condition: Used
This Keithley AMC ELM Electronics ACM analog card has been inspected and is in good used condition. The PCB is clean with no visible damage, broken traces, or burnt components. Components appear intact across all channel sections. The card-edge connector looks clean and undamaged. Normal minor handling wear is present consistent with previous installation in an instrument system. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Keithley
Model:
ACM
MPN:
ACM
Type:
Analog Measurement Card / Module
SKU:
46527
Manufacturer of PCB:
ELM Electronics
PCB Date Code:
6-3-96
System Compatibility:
Keithley AMC (Analog Measurement Card system)
Main ICs:
INA106KP (Burr-Brown instrumentation amp), AD708JN op-amp
Number of Channels:
10 (Ch1V–Ch10, visible on PCB silkscreen)
Connector Type:
High-density card-edge connector (rear)
Form Factor:
Plug-in Card / Module
Condition:
Used – Inspected
Country/Region of Manufacture:
United States
Seller Notes:
Card only; inspected and in good condition.
Condition Notes:
Keithley AMC ELM Electronics ACM analog card. Inspected and in good used condition. PCB clean, no visible damage or burnt components. Card-edge connector clean. Normal handling wear. Card only.
California Prop 65 Warning:
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
