IVS

IVS Accuvision 200 Beam Focus Board 0003-01206-00 Rev B Assy 0001-00472

(No reviews yet) Write a Review
SKU:
29778
MPN:
0003-01206
Condition:
New
Availability:
Usually ships within 1-2 business days.
Weight:
4.00 LBS
Shipping:
Calculated at Checkout
  • IVS Accuvision 200 Beam Focus Board 0003-01206 – front-left angled view showing PCB with heatsink and front panel bracket
  • IVS Accuvision 200 Beam Focus Board – reverse side angled view showing dual card-edge connectors and large electrolytic capacitors
  • IVS Accuvision 200 BFB PCB top view showing assembly label 0001-00472 Rev A and component layout with ICs and heatsink
  • IVS Beam Focus Board – close-up of dual Positronic card-edge connectors on bottom edge of PCB
  • IVS Accuvision 200 Beam Focus Board – right-side angled view showing front panel bracket and power components with heatsinks

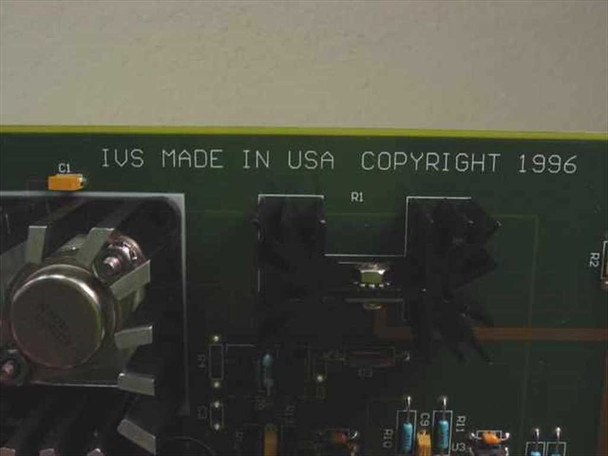

  • IVS PCB close-up showing silkscreen text: IVS MADE IN USA COPYRIGHT 1996
  • IVS Beam Focus Board assembly label close-up: ASSY NO. 0001-00472-01, REV A, S/N 4168

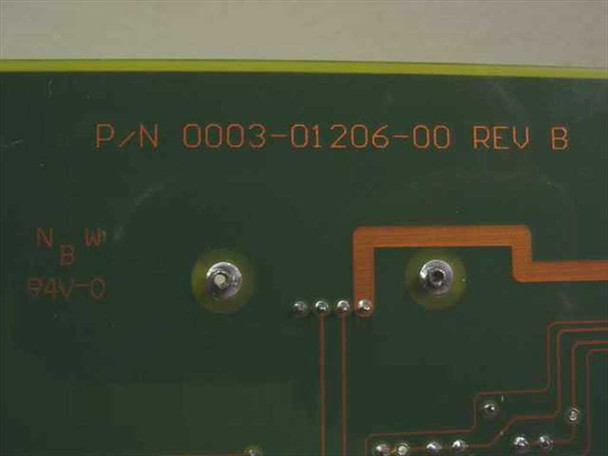

  • IVS Beam Focus Board PCB silkscreen close-up: P/N 0003-01206-00 REV B, UL 94V-0 flammability rating
  • IVS Accuvision 200 Beam Focus Board front panel bracket close-up showing BFB label
$150.00
Was: $300.00
Current Stock: 1

Sold Out

Description

IVS Accuvision 200 Beam Focus Board 0003-01206-00 Rev B Assy 0001-00472

Beam Focus Board (BFB) PCB module designed for the IVS Accuvision 200 optical inspection system. This card-edge module manages focus control and beam alignment functions within the inspection system.

Specifications & What's Included

  • Model: IVS Accuvision 200
  • Part Number: 0003-01206-00 (Rev B PCB)
  • Assembly Number: 0001-00472-01 (Rev A)
  • Type: Beam Focus Board (BFB)
  • Connectors: Dual card-edge (Positronic-style)
  • Form Factor: Card/Module with front panel bracket included
  • PCB Rating: UL 94V-0
  • Manufactured: United States, 1996

Applications

The Accuvision 200 was used in automated optical inspection (AOI) systems for PCB and component quality control. The Beam Focus Board handles critical beam positioning and focus adjustment operations. This module fits the IVS Accuvision 200 system and was standard in semiconductor and electronics manufacturing inspection equipment from the 1990s onward.

Condition: Open Box
This IVS Accuvision 200 Beam Focus Board (P/N 0003-01206-00) is new and unused. It may be out of its original packaging, but the board itself shows no signs of use or wear. The PCB and components appear clean and undamaged. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
IVS
Model:
Accuvision 200
MPN:
0003-01206-00
Secondary Model:
0001-00472-01
Type:
Beam Focus Board (BFB) PCB Module
SKU:
29778
Revision:
Rev B (PCB P/N); Rev A (Assembly)
Assembly Number:
0001-00472-01
PCB Part Number:
0003-01206-00
Country/Region of Manufacture:
United States
Manufacture Date:
1996
Form Factor:
Card/Module with front panel bracket
Compatible With:
IVS Accuvision 200 optical inspection system
Board Designation:
BFB (Beam Focus Board)
PCB Flammability Rating:
UL 94V-0
Connector Type:
Dual card-edge connectors (Positronic-style)
Condition:
New – Open Box
Seller Notes:
New open-box board; may be out of original packaging. Includes front panel bracket.
Condition Notes:
IVS Accuvision 200 Beam Focus Board 0003-01206-00 is new and unused, out of original box. PCB is clean with no signs of use or wear. Please contact us with any questions.
