IVS 0001-00207 SFB Board Rev B Accuvision 200 Vacuum System Control Board

(No reviews yet) Write a Review
SKU:
29994
MPN:
0001-00207
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
3.00 LBS
Shipping:
Calculated at Checkout
  • IVS 0001-00207 SFB Board Accuvision 200 – top side view showing three heatsink-mounted power components and edge connectors

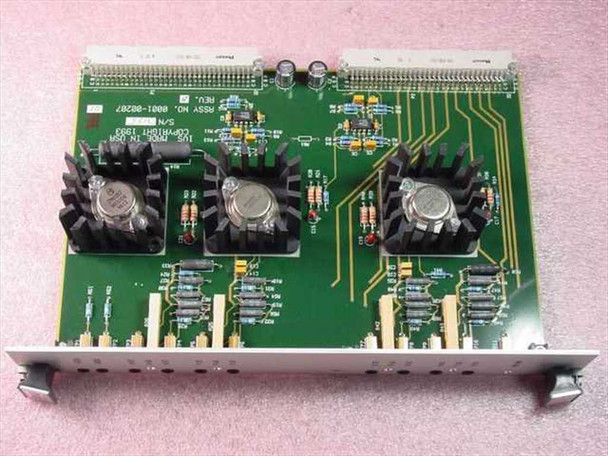

  • IVS 0001-00207 SFB Board – angled top view showing assembly label reading ASSY NO. 0001-00207 REV B and IVS copyright 1993

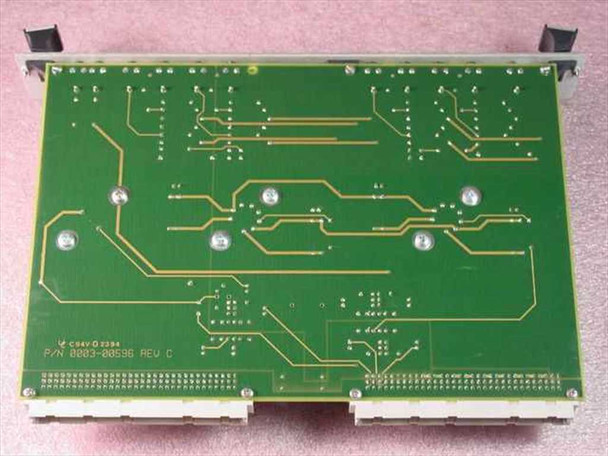

  • IVS 0001-00207 SFB Board – bottom/solder side view showing PCB part number 8003-00596 Rev C and copyright 1994 marking

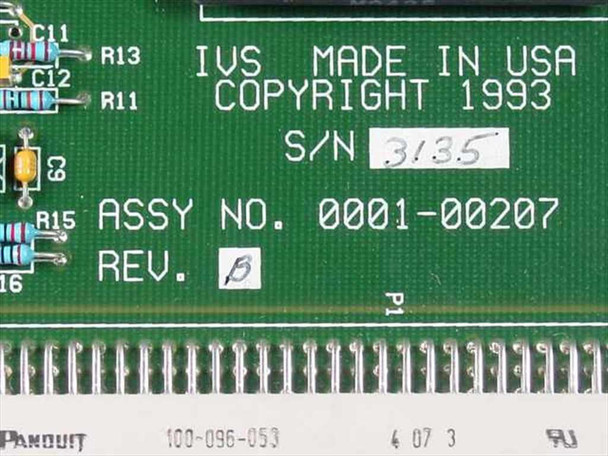

  • IVS 0001-00207 SFB Board – close-up of board label showing IVS Made in USA, Copyright 1993, S/N 3135, ASSY NO. 0001-00207, REV B
$175.00
Was: $350.00
Current Stock: 1

Sold Out

Description

IVS 0001-00207 SFB Board Rev B Accuvision 200 Vacuum System Control Board

The IVS 0001-00207 SFB Board is a control board designed for the Accuvision 200 vacuum system, manufactured by IVS (Integrated Vacuum Systems) in the United States. Dating from 1993, this board serves as a primary control and signal-processing module within the Accuvision 200 platform, which is used in vacuum-based thin-film deposition and semiconductor processing equipment. The board carries three heatsink-mounted power components and edge connectors for integration into the Accuvision 200 chassis.

Specifications & What's Included

  • Manufacturer: IVS (Integrated Vacuum Systems)
  • Assembly Number: 0001-00207
  • Revision: Rev B
  • PCB Part Number: 8003-00596, Rev C
  • Compatible System: Accuvision 200 Vacuum System
  • Country of Manufacture: USA
  • Copyright Year: 1993
  • Form Factor: Card/Module (chassis-mounted board with front panel bracket)
  • Three heatsink-mounted power transistor/component assemblies on board
  • Edge connectors along both short edges for chassis backplane interface
  • Board only — no cables or additional accessories included

Applications

The Accuvision 200 is a vacuum deposition and process control system used in semiconductor and thin-film manufacturing environments. Control boards like this SFB module manage signal conditioning, power regulation, and system feedback within the vacuum chamber's operational loop — coordinating with pressure sensors, valves, and drive components to maintain precise process conditions. This type of equipment was commonly found in R&D labs, university cleanrooms, and small-volume semiconductor fabrication facilities during the early-to-mid 1990s when physical vapor deposition (PVD) and similar vacuum processes were becoming more prevalent in advanced materials research. Replacement control boards for specialty vacuum systems like the Accuvision 200 are increasingly difficult to source, making used pulls from working systems a practical option for maintenance and repair of existing installations.

Condition: Used
This IVS 0001-00207 SFB Board for the Accuvision 200 vacuum system has been inspected and is in good condition. It was pulled from a working environment where it was in active use. The board is clean overall with no visible damage to the PCB, components, or edge connectors. The three heatsink-mounted power components appear intact and undamaged. The assembly label is legible and confirms ASSY NO. 0001-00207, Rev B, S/N 3135, IVS Made in USA, Copyright 1993. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
IVS
Model:
Accuvision 200
MPN:
0001-00207
Secondary Model:
0001-00207
Type:
Vacuum System Control Board
SKU:
29994
Revision:
Rev B
PCB Part Number:
8003-00596 Rev C
Assembly Number:
0001-00207
Country/Region of Manufacture:
United States
Year of Manufacture:
1993
Form Factor:
Card/Module
Application / Use Case:
Vacuum System Control, Semiconductor Processing
Condition:
Used – Pulled from Working Environment
Seller Notes:
Board only. Pulled from a working Accuvision 200 vacuum system.
Condition Notes:
IVS 0001-00207 SFB Board for Accuvision 200 vacuum system. Inspected and in good condition. Pulled from a working environment where it was in active use. Board and components show no visible damage. Rev B, made 1993.
