IVS Accuvision IVS 200 Logic Driver Board 0001-00154-02 Rev B PCB

IVS Accuvision IVS 200 Logic Driver Board 0001-00154-02 Rev B PCB

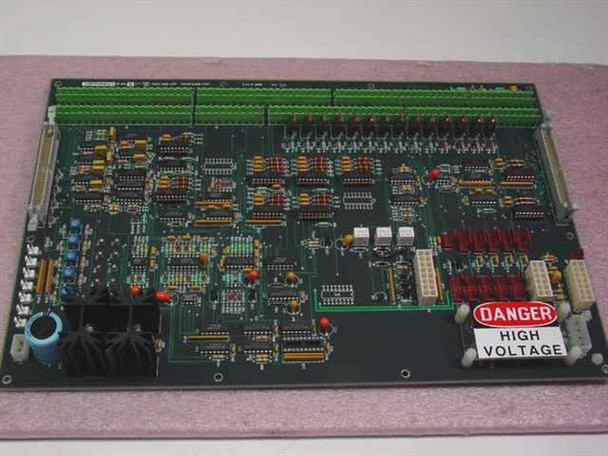

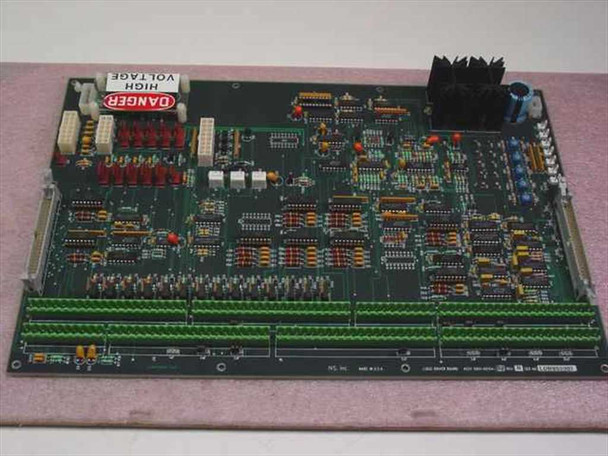

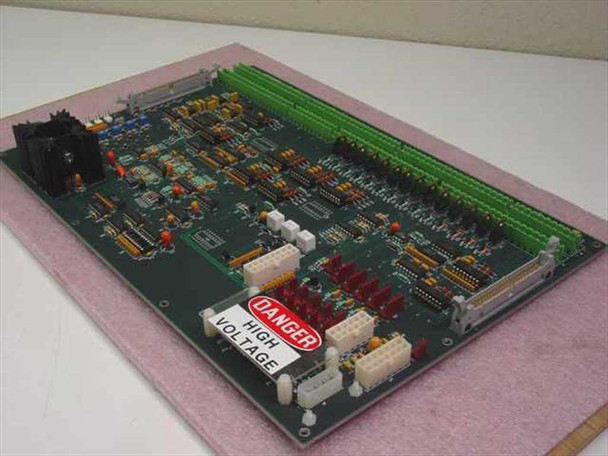

This is a Logic Driver Board from the IVS Accuvision IVS 200 industrial machine vision system, assembly number 0001-00154-02, Revision B. The board is a large-format PCB that serves as the primary logic and output driver interface within the IVS 200 vision system, routing control signals and drive outputs between the system's processing core and external actuators, sensors, or inspection outputs. A prominent "Danger High Voltage" warning label is affixed to the board, indicating it handles higher-voltage drive signals in normal operation.

Specifications & What's Included

• Manufacturer: IVS Accuvision
• System: IVS 200 Industrial Machine Vision System
• Board type: Logic Driver Board
• Assembly (ASSY) number: 0001-00154-02
• Revision: Rev B
• Form factor: Full-size PCB / card module (no enclosure)
• Edge connectors: Multiple green screw-terminal block headers along board edges for I/O wiring
• Internal connectors: Multiple multi-pin Molex-style board-to-board / harness connectors
• Notable components: Arrays of red film capacitors, large electrolytic capacitors, multiple DIP IC packages, heat-sinked power device (visible on one corner)
• Warning label: "Danger High Voltage" affixed to board — present and intact
• Included: Board only — no enclosure, external cables, or documentation included
