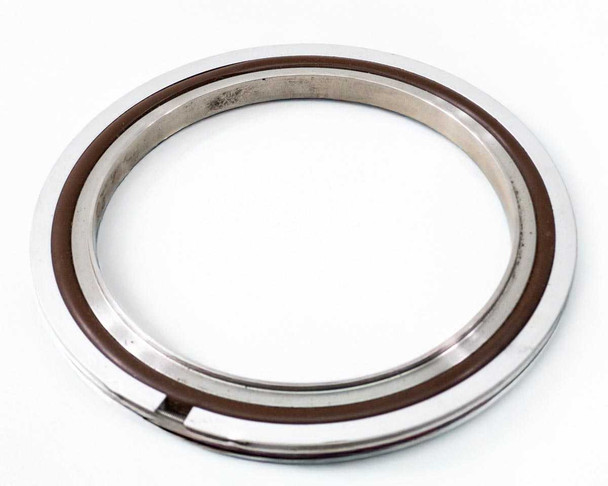

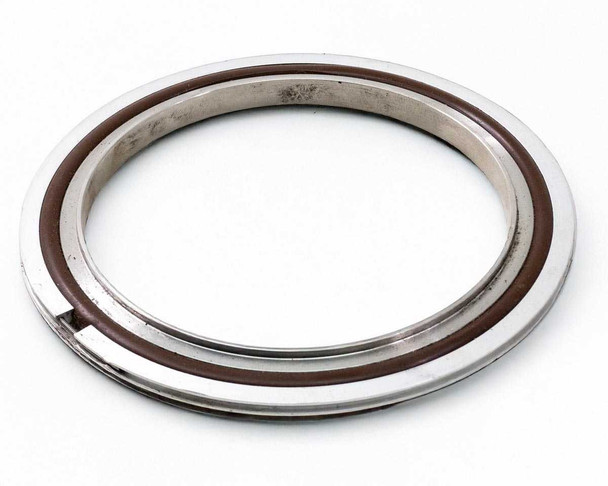

ISO-K Flange Seal 304 SS High Vacuum Centering Ring 3-3/4" Bore 5.15" OD
This is a 304 stainless steel ISO-K high vacuum centering ring seal with a brown Viton (FKM) O-ring. The centering ring seats between two mating ISO-K flanges to provide a leak-tight seal on high vacuum pipeline connections. It is designed for use in high vacuum systems where a reliable metal-backed O-ring seal is required at flanged joints.
Specifications & What's Included
- Material: 304 Stainless Steel
- O-Ring Material: Viton (FKM) — brown, visibly intact and seated in groove
- Bore (Inner Diameter): 3-3/4" (approx. 3.75")
- Flange OD: approximately 5.15"
- Flange Standard: ISO-K (ISO Large Flange)
- Compatible Flange Size: ISO-K 160 / ISO 200 series (nominal)
- Retaining clip: present and visible on ring
- Vacuum Level: High Vacuum
- Includes: centering ring with Viton O-ring as shown
Applications
ISO-K centering ring seals of this type are standard components in high vacuum and ultra-high vacuum (UHV) plumbing systems. They are widely used at flanged connections in vacuum deposition equipment (PVD, CVD, sputtering), turbomolecular pump inlets, roughing pump lines, vacuum furnaces, electron beam systems, and research vacuum chambers. The ISO-K (or ISO-LF) flange standard is common across European and international vacuum equipment manufacturers including Leybold, Pfeiffer, Edwards, and Varian. These centering ring seals are consumable-class components that are replaced during system maintenance or whenever a flange joint is broken and re-made. This seal was removed from a large vacuum deposition system that included high-capacity roughing pumps and turbomolecular pumps.
Please note: We may have multiple units of this item in stock. The unit you receive may vary slightly from the one shown in the photos. All units are functionally equivalent and inspected to the same standard.
This 304 stainless steel ISO-K high vacuum centering ring seal was removed from a large vacuum deposition system that was decommissioned when the facility closed operations. It had been in service as part of a roughing pump line integrated with large turbo pumps. The stainless ring shows light surface oxidation and minor scuffing consistent with normal use in a vacuum environment. The Viton O-ring appears intact and seated properly in its groove with no visible cuts or deformation. A small retaining clip is present on the ring. This centering ring has not been bench-tested following removal but was pulled from active service in a functional system at the time of decommissioning. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Unbranded / Generic |
Type: |
ISO-K High Vacuum Centering Ring Seal |
Material: |
304 Stainless Steel |
O-Ring Material: |
Viton (FKM) |
Bore Size: |
3-3/4" (3.75") |
Flange OD: |
5.15" |
Flange Standard: |
ISO-K |
Compatible Flange Size: |
ISO-K 160 / ISO 200 (approx.) |
Vacuum Level: |
High Vacuum |
Application: |
Vacuum Deposition, Roughing Pump Lines, Turbo Pump Systems |
SKU: |
53225 |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Centering ring with Viton O-ring; removed from vacuum deposition system. |
Country/Region of Manufacture: |
Unknown |
Condition Notes: |
Used ISO-K 304 SS high vacuum centering ring seal removed from a decommissioned vacuum deposition system. Light surface wear on the stainless ring; Viton O-ring appears intact. Pulled from active service at facility closure. |
