Intermec MaxiLAN DX200S NEMA-12 Industrial Terminal w/ Magscan 10BASE-T AMD DOS

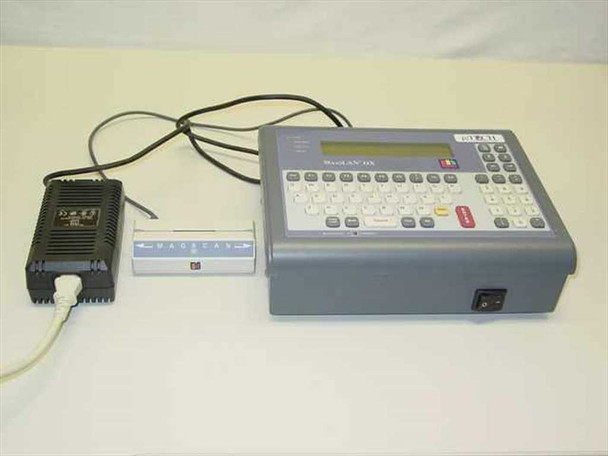

The Intermec MaxiLAN DX200S is a rugged, NEMA-12 rated industrial data collection terminal designed for demanding shop floor and production environments. It combines a full QWERTY keyboard, built-in LCD display, and an AMD V5 (486-class) processor running ROM DOS, with built-in 10BASE-T Ethernet — making it a self-contained, networkable data entry station capable of barcode scanning, magnetic stripe reading, and serial communications. The unit ships with the Intermec Magscan UBI Wedge Magnetic Stripe Reader, proprietary power supply, and connecting cables.
Specifications & What's Included
- Model: MaxiLAN DX200S (MaxiLAN DX)
- C/N: DSA02201520000
- Processor: AMD V5 (486-class)
- System Memory: 4MB total (640K conventional + 3072K extended)

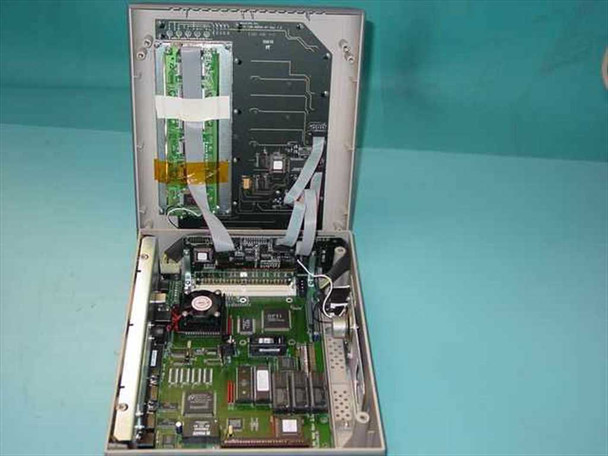

- Memory Module: 1x 4MB 30-pin SIMM (Hyundai HY514400A)
- SRAM: 512K
- Storage: Solid-state disk (flash — no spinning hard drive)
- Operating System: ROM DOS
- Firmware Version: 2.11 (confirmed on boot screen)
- Board Revision: MaxiLAN Rev 2.2

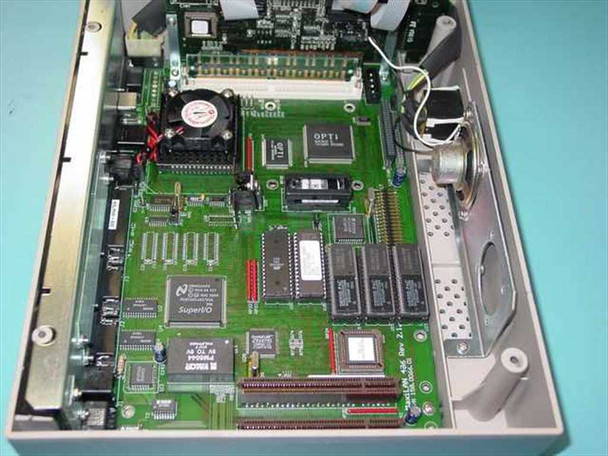

- Chipset: OPTi; SuperIO: National Semiconductor
- Network: Built-in Ethernet 10BASE-T
- Enclosure Rating: NEMA-12 (sealed against splashes, drips, dust, and industrial contaminants)
- Display: Built-in LCD panel

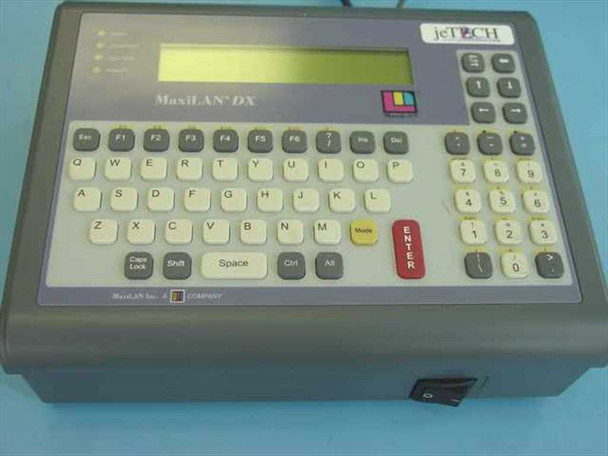

- Keyboard: Full QWERTY with F1–F12 function keys, numeric keypad, Mode and Enter keys
- Status LEDs: Power, Good Read, Caps Lock, Network

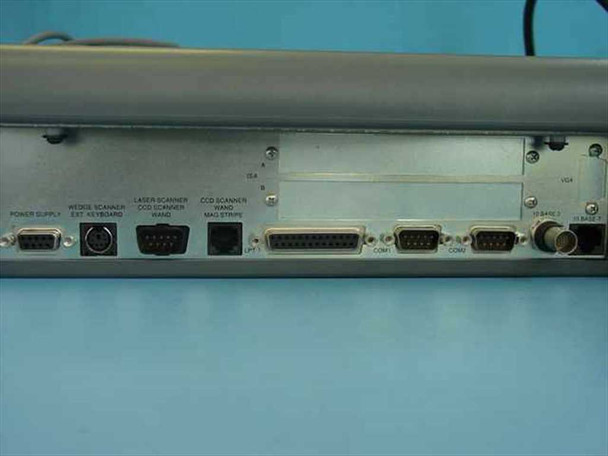

- Scanner Ports: Wedge/Ext Keyboard, Laser Scanner/CCD Scanner/Wand, CCD Scanner/Wand/Mag Stripe (dedicated labeled rear ports)
- Serial Ports: COM1, COM2, COM3 (3 serial ports)
- Parallel Port: 1x
- Origin: Made in Singapore
- Included: Intermec Magscan UBI Wedge Magnetic Stripe Reader

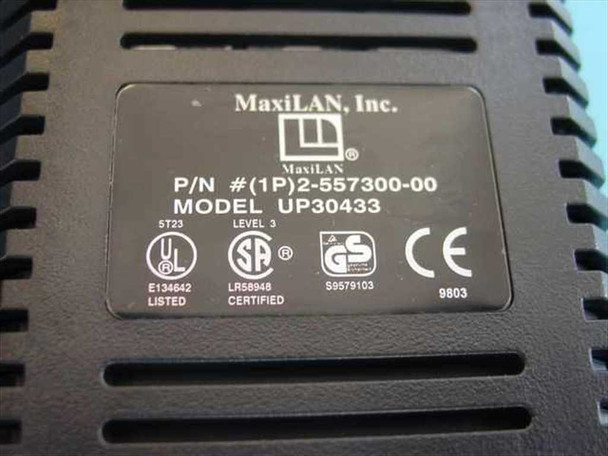

- Included: MaxiLAN power supply (Model UP30433, P/N (1P)2-557300-00; UL Listed, CSA Certified, CE)
- Included: Connecting cables
- Not included: Manual, additional peripherals
Applications
The MaxiLAN DX200S belongs to the MaxiLAN family of ruggedized industrial terminals produced by MaxiLAN Inc. under the Intermec Technologies umbrella in the mid-to-late 1990s. These terminals were deployed on production floors, packaging lines, and warehouse operations where standard office-grade equipment could not survive the dust, moisture, and vibration of an industrial setting. The NEMA-12 sealed enclosure allowed them to be installed directly at the point of work — on assembly lines, in receiving docks, and at QC inspection stations — rather than in a separate clean-room office. With built-in 10BASE-T Ethernet, these units connected directly to plant-floor networks for real-time manufacturing tracking, inventory management, and data collection without requiring a separate PC. The combination of barcode wand/laser/CCD scanner ports and a magnetic stripe reader made the DX200S a versatile single-station solution for facilities needing to capture both barcode and card-swipe data at the same terminal. Today these units are sought by facilities maintaining legacy MaxiLAN or Intermec-based shop floor systems, as well as collectors of industrial DOS-era embedded computing hardware.
This Intermec MaxiLAN DX200S industrial terminal has been tested at our facility and confirmed to power up and boot to the DOS C prompt — the boot screen is shown in our photos. The unit was pulled from a working production environment and is in good cosmetic condition with normal light wear. The Intermec Magscan magnetic stripe reader, power supply, and cables are all included. No manual or additional peripherals are included. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Intermec / MaxiLAN Inc. |
Model: |
DX200S |
MPN: |
DSA02201520000 |
Secondary Model: |
MaxiLAN DX |
Type: |
Rugged Industrial Data Collection Terminal |
SKU: |
14044 |
Country/Region of Manufacture: |
Singapore |
Form Factor: |
Desktop / Portable Industrial Terminal |
Processor: |
AMD V5 (486-class) |
System Memory: |
4MB (640K conventional + 3072K extended) |
Memory Module: |
1x 4MB 30-pin SIMM (Hyundai HY514400A) |
Storage: |
Solid-state disk (flash) |
SRAM: |
512K SRAM |
Firmware Version: |
Version 2.11 |
Network Interface: |
Built-in Ethernet 10BASE-T |
Enclosure Rating: |
NEMA-12 (splash, drip, dust resistant) |
Display: |
Built-in LCD |
Keyboard: |
Full QWERTY with function keys and numeric keypad |
Scanner Ports: |
Wand, Laser Scanner, CCD Scanner, Wedge Scanner |
Serial Ports: |
COM1, COM2, COM3 (3x serial) |
Parallel Port: |
1x parallel port |
External Keyboard Port: |
Yes — dedicated port on rear |
Magnetic Stripe Reader: |
Intermec Magscan UBI Wedge Magnetic Stripe Reader |
Power Supply Model: |
MaxiLAN UP30433, P/N (1P)2-557300-00 |
Power Supply Certifications: |
UL Listed, CSA Certified, GS, CE |
Chipset: |
OPTi chipset; National Semiconductor SuperIO |
Board Revision: |
MaxiLAN Rev 2.2 |
Seller Notes: |
Includes Intermec Magscan reader, power supply, and cables. No manual or peripherals included. |
Compatible With: |
Intermec MaxiLAN DX series, MaxiLAN rugged enclosure/transport case |
Application: |
Packaging line control, manufacturing tracking, QC inspection, shop floor data collection |
Condition Notes: |
This Intermec MaxiLAN DX200S industrial terminal has been tested and confirmed to power up and boot to the DOS C prompt. Pulled from a working environment, good cosmetic condition. Includes Magscan reader, power supply, and cables. |
