MaxiLAN

UBI MaxiLAN 1P 2-386200-00-11 Barcode Terminal w/ Scanner & Card Reader

(No reviews yet) Write a Review
SKU:
36275
MPN:
1P 2-386200-00-11
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
8.00 LBS
Shipping:
Calculated at Checkout

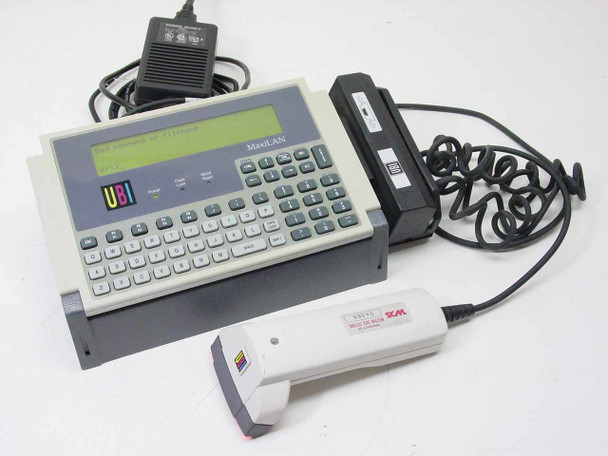

  • UBI MaxiLAN 1P barcode terminal front view with QWERTY keyboard, LCD display, ScanPlus SP laser scanner, magnetic stripe card reader, and power adapter

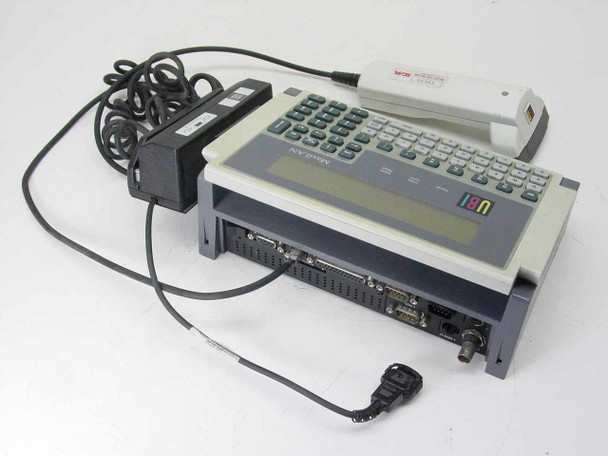

  • UBI MaxiLAN 1P barcode terminal right-side view showing rear port panel with serial, parallel, and Ethernet connections, and ScanPlus SP scanner

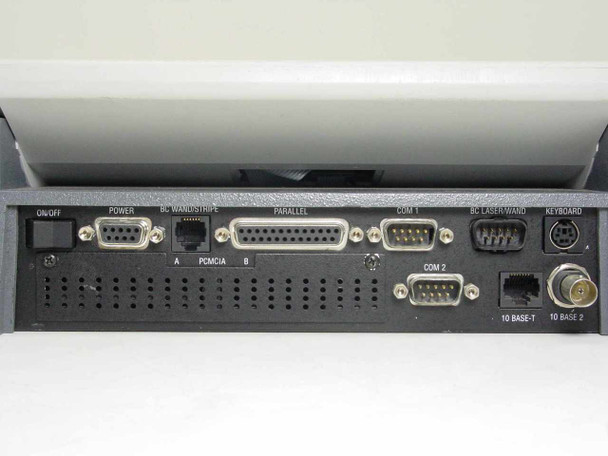

  • UBI MaxiLAN 1P rear panel showing ON/OFF switch, Power, BC Wand/Stripe, Parallel, COM 1, COM 2, BC Laser/Wand, Keyboard, 10BASE-T, and 10BASE-2 ports
  • UBI MaxiLAN 1P close-up of front panel showing LCD display reading 'Bad command or filename', UBI logo, Power and Caps Lock indicator LEDs, and full QWERTY keyboard

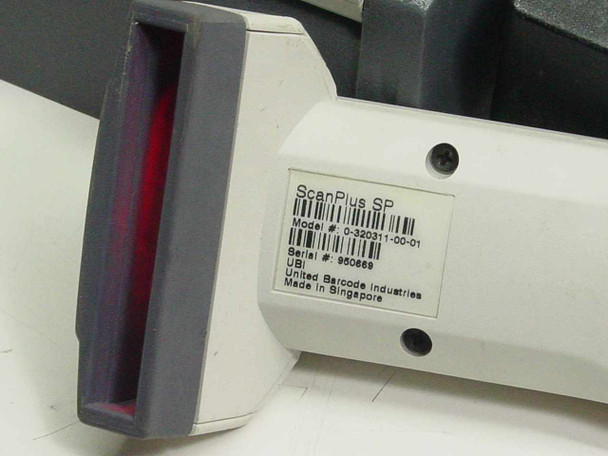

  • UBI ScanPlus SP laser barcode scanner label showing Model 0-320311-00-01, UBI branding, Made in Singapore
  • UBI magnetic stripe card reader close-up showing card slot and UBI label
  • UBI MaxiLAN 1P bottom label showing Model (1P) 2-386200-00-11, serial number, MaxiLAN Options sticker (Ethernet, PCMCIA, DRAM, SRAM, DOS/ROM/MS), and UBI United Barcode Industries address label with IEEE address
$110.00
Was: $225.00
Current Stock: 1

Sold Out

Description

UBI MaxiLAN 1P 2-386200-00-11 Barcode Terminal w/ Scanner & Card Reader

Desktop barcode data collection terminal with integrated 2-line green LCD display and full QWERTY keyboard. Manufactured in Singapore for point-of-sale and warehouse inventory applications.

Specifications & What's Included

  • Model: UBI MaxiLAN 1P (MPN 2-386200-00-11)
  • 1MB DRAM (expandable to 4MB); 256KB SRAM (expandable to 512KB)
  • 2-line green backlit LCD display with full QWERTY + numeric keypad
  • Integrated UBI ScanPlus SP laser scanner (Model 0-320311-00-01)
  • Magnetic stripe card reader
  • Network: 10BASE-T Ethernet; Serial: 2x COM (DB9); Parallel: DB25; PCMCIA slots A & B
  • Operating System: DOS / ROM / MS
  • Includes power adapter

Applications

MaxiLAN terminals were standard equipment in retail checkout, warehouse management, and shipping/receiving operations throughout the 1990s and 2000s. These units collected barcode and card data for point-of-sale transactions and inventory tracking, connecting to back-end systems via Ethernet or serial links. Compatible with UBI MaxiLAN series infrastructure and legacy DOS-based retail platforms.

Condition: Used
This UBI MaxiLAN 1P barcode data collection terminal (P/N 2-386200-00-11) has been inspected and is in good used condition. It was pulled from a working environment where it was in active use. The unit includes the UBI ScanPlus SP laser scanner (Model 0-320311-00-01) and the UBI magnetic stripe card reader, along with the power adapter. The terminal shows normal wear consistent with regular use — minor scuffing on the housing and some light marks on the keyboard area; no cracks or significant damage are visible. The rear port panel and connectors appear intact. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
UBI (United Barcode Industries)
Model:
MaxiLAN 1P
MPN:
2-386200-00-11
Type:
Barcode Data Collection Terminal
SKU:
36275
Condition:
Used – Pulled from Working Environment
Country/Region of Manufacture:
Singapore
Form Factor:
Desktop / Countertop
Display Type:
LCD (2-line green backlit)
Keyboard:
Full QWERTY + numeric keypad
Included Scanner:
UBI ScanPlus SP, Model 0-320311-00-01
Included Card Reader:
UBI magnetic stripe card reader
Interface - Barcode Wand/Scanner:
BC Laser/Wand port (dedicated)
Interface - Network:
10BASE-T Ethernet
Interface - Serial:
COM 1, COM 2 (DB9)
Interface - Parallel:
Parallel port (DB25)
Interface - Keyboard:
DIN keyboard port
Interface - PCMCIA:
PCMCIA slots A and B
Interface - Mag Stripe:
BC Wand/Stripe port (dedicated)
Memory - DRAM:
1MB (per label; options up to 4MB)
Memory - SRAM:
256KB (per label; option 512KB)
Operating System:
DOS / ROM / MS (per bottom label)
IEEE Address (MAC):
See internal fields
Seller Notes:
Includes UBI ScanPlus SP laser scanner and UBI magnetic stripe card reader; power adapter included
Compatible With:
UBI MaxiLAN series barcode systems
Condition Notes:
UBI MaxiLAN 1P barcode terminal (2-386200-00-11) inspected and in good used condition. Pulled from a working environment. Includes ScanPlus SP laser scanner, magnetic stripe card reader, and power adapter. Normal cosmetic wear.
View AllClose

Related Products

Related Products

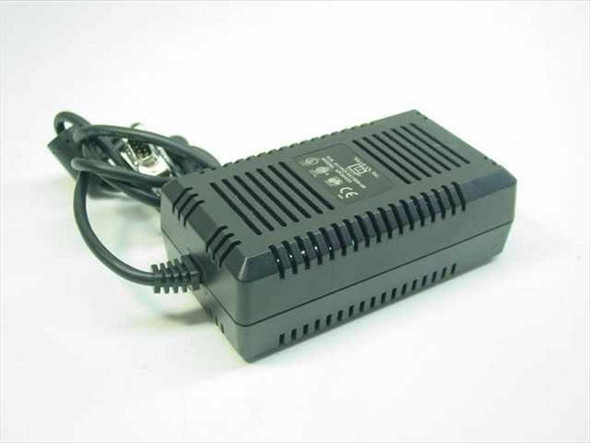

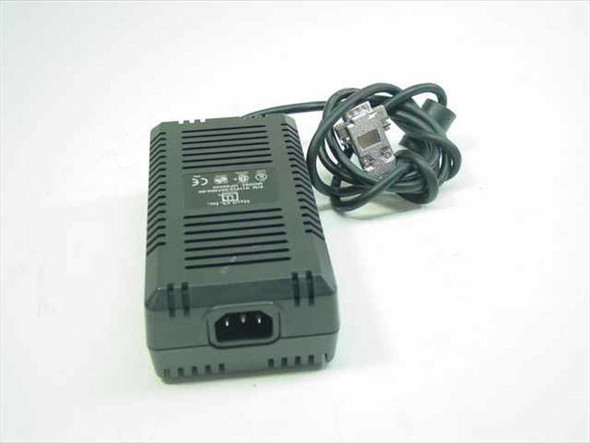

MaxiLAN 2-557300-00 UP30433 scanner power supply – front left view showing ribbed black enclosure with attached AC power cord and output connector MaxiLAN UP30433 2-557300-00 scanner power supply – right side three-quarter view showing ventilation ribs and certification labels on top
