Interface PCI-2756AM Multi-Axis Motion Control PCI Card Altera FLEX FPGA Japan

(No reviews yet) Write a Review
SKU:
53372
MPN:
PCI-2756AM
Condition:
Used
Availability:
Usually ships within 1–2 business days.
Weight:
2.00 LBS
Shipping:
Calculated at Checkout

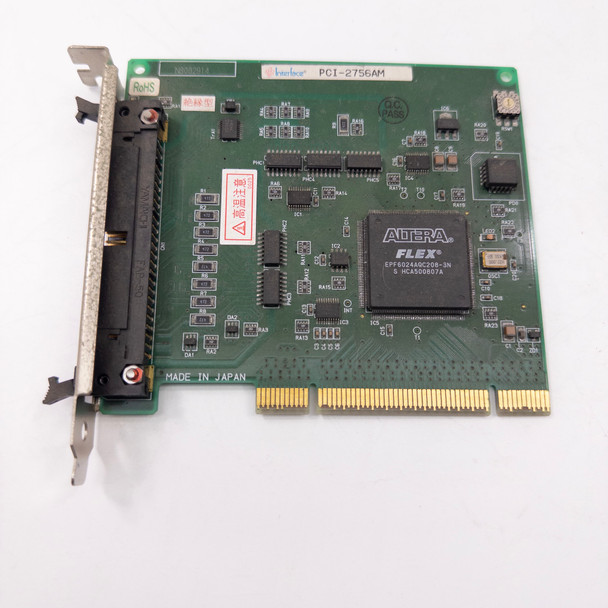

  • Interface PCI-2756AM motion control card — component-side view showing Altera FLEX FPGA EPF6024AEC208-2N, 68-pin connector, and Made in Japan silk screen
  • Interface PCI-2756AM PCI card — solder-side view showing PCI gold edge connector, barcode label, and UL marking

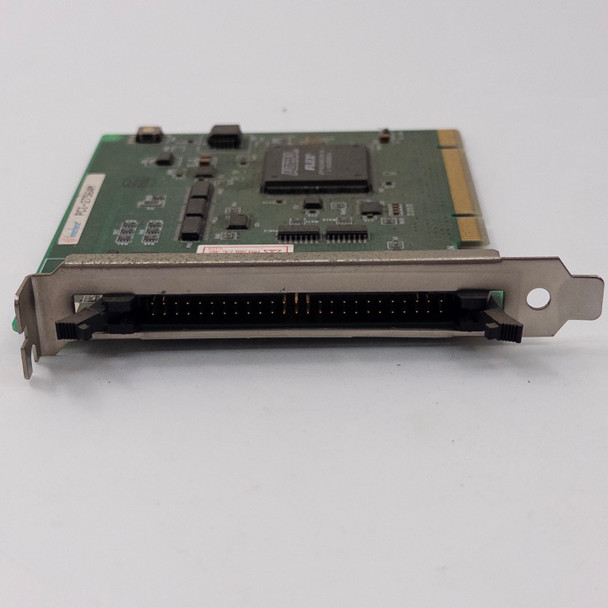

  • Interface PCI-2756AM motion control PCI card — angled side view showing 68-pin high-density bracket connector and main controller IC on green PCB
$195.00
Was: $400.00
Current Stock: 1

Sold Out

Description

Interface PCI-2756AM Multi-Axis Motion Control PCI Card Altera FLEX FPGA Japan

32-bit PCI motion control card with Altera FLEX FPGA for pulse train output and multi-axis stepper/servo control. Connects directly to PC PCI slot via standard edge connector and high-density 68-pin SCSI-style output.

Specifications & What's Included

  • Model: PCI-2756AM
  • FPGA: Altera FLEX EPF6024AEC208-2N
  • Interface: 32-bit PCI bus
  • Output Connector: High-density 68-pin SCSI-style
  • Application: Multi-axis motion control, pulse train output
  • Card only -- no cables, breakout board, or software included

Applications

Motion control cards of this type are used for CNC machine positioning, robotics axis control, and industrial automation systems. The PCI-2756AM generates stepper and servo motor pulse signals for multi-axis coordination in manufacturing and laboratory equipment. Compatible with any PC featuring a standard PCI slot running appropriate motion control software or firmware. Historically used in precision motion platforms, legacy CNC retrofits, and OEM automation cabinets.

Condition: Used
This Interface Corporation PCI-2756AM multi-axis motion control PCI card was pulled from a working industrial environment where it was previously in use. The card has been visually inspected and photographed. The PCB shows normal handling wear consistent with prior installation; no cracked traces, broken connectors, or obvious damage are visible. The 68-pin high-density bracket connector and PCI edge connector both appear clean and intact. As with all used cards, buyers should review all photos carefully. Please contact us with any questions before purchasing.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Interface Corporation
Model:
PCI-2756AM
MPN:
PCI-2756AM
Type:
Multi-Axis Motion Control PCI Card
SKU:
53372
Condition:
Used – Pulled from Working Environment
Country/Region of Manufacture:
Japan
Form Factor:
PCI Card
Bus Interface:
PCI (32-bit)
Main Controller / FPGA:
Altera FLEX EPF6024AEC208-2N
Connector Type:
High-Density 68-Pin (SCSI-style)
Application:
Motion Control / Pulse Train Output
Compatible Systems:
PC with PCI slot; CNC, robotics, automation
Seller Notes:
Card only — no cables, breakout board, or software included.
Condition Notes:
Interface PCI-2756AM motion control PCI card pulled from a working environment. Inspected — PCB, 68-pin connector, and PCI edge connector appear clean and intact. Normal handling wear. Review photos. Contact us with questions.
