Altera

Altera Stratix EP1S25F672C6 FPGA Board 13499 ASSY 944-1778-003 CompactPCI 6U

(No reviews yet) Write a Review
SKU:
49744
MPN:
13499/600-2011-954
Condition:
Used
Availability:
Usually ships within 1–2 business days.
Weight:
2.00 LBS
Shipping:
Calculated at Checkout
  • Altera Stratix EP1S25F672C6 FPGA Board 944-1778-003 – top side view showing six Stratix FPGA chips and front-panel connectors

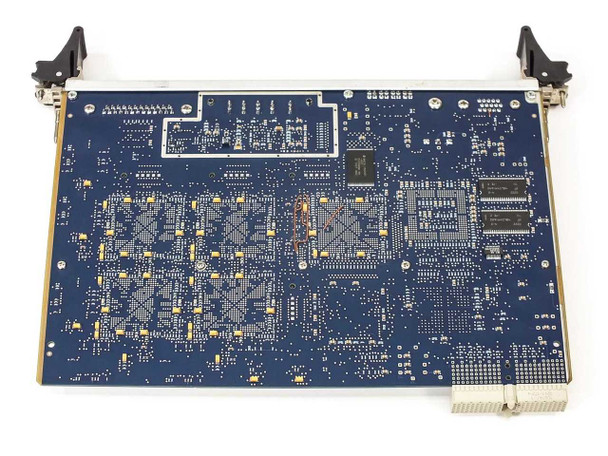

  • Altera Stratix FPGA Board 944-1778-003 – bottom/solder side view showing CompactPCI edge connectors and PCB traces
  • Altera Stratix Board 944-1778-003 – close-up of assembly label reading ASSY944-1778-003 REV, 13499, and MFR barcode
  • Altera Stratix EP1S25F672C6 FPGA Board – close-up of top row showing three Stratix FPGAs and Altera MAX supervisory device

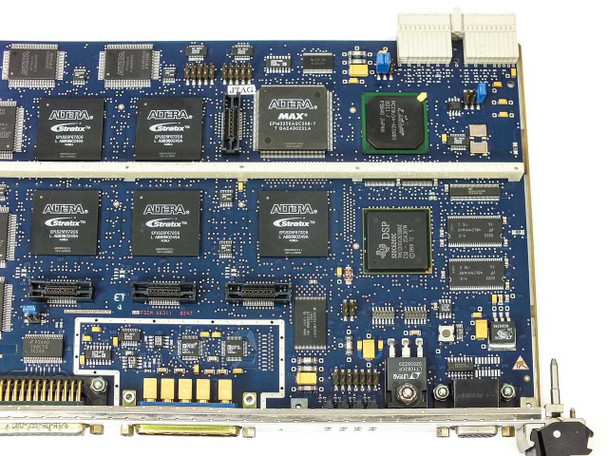

  • Altera Stratix FPGA Board – close-up of lower FPGA array showing three additional Stratix EP1S25F672C6 devices and DSP chip
  • Altera Stratix Board 944-1778-003 – front panel edge showing DB25 female connector (left) and DB9 female connector (right), label '14'
  • Altera Stratix FPGA Board – opposite front panel edge showing 4-pin connector, test points, and DB9 female connector
  • Altera Stratix Board 944-1778-003 – close-up of dual keyed 64-pin mezzanine/header connectors on top edge of board
$350.00
Was: $700.00
Current Stock: 1

Sold Out

Description

Altera Stratix EP1S25F672C6 FPGA Board 13499 ASSY 944-1778-003 CompactPCI 6U

CompactPCI 6U FPGA board housing six Altera Stratix EP1S25F672C6 field-programmable gate arrays. Designed for signal processing, telecommunications, and industrial computing applications requiring reconfigurable logic.

Specifications & What's Included

  • 6x Altera Stratix EP1S25F672C6 FPGAs (130nm process)
  • Altera MAX EPM3256A supervisory device
  • CompactPCI 6U form factor, 10.5" x 8.5" x 1"
  • Dual 64/80-pin cPCI edge connectors
  • Front panel: DB25 (female), DB9 (female), 4-pin connector
  • Blue PCB, board only

Applications

Stratix-generation boards were deployed in telecommunications infrastructure, signal processing systems, and industrial control platforms. CompactPCI form factor integrates into standard 6U chassis used in telecom and defense equipment. Supports real-time data processing, DSP applications, and custom hardware acceleration where reconfigurable logic was required.

Condition: Used
This Altera Stratix EP1S25F672C6 FPGA Board (ASSY 944-1778-003) has been inspected and is in good used condition. It was pulled from a working environment where it was actively in use. The board is clean overall; photos show normal handling marks consistent with installation and removal from a system chassis. The blue PCB and all six Stratix FPGA devices are intact with no visible physical damage. Front-panel connectors (DB25 and DB9) appear undamaged. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Altera
Model:
944-1778-003
Secondary Model:
13499 / 600-2011-954
MPN:
944-1778-003
SKU:
49744
Type:
FPGA Board / CompactPCI 6U Card
FPGA Family:
Altera Stratix
FPGA Part Number:
EP1S25F672C6
Number of FPGAs:
6 x Altera Stratix EP1S25F672C6
Supervisory Device:
Altera MAX EPM3256A (visible on board)
Form Factor:
CompactPCI (cPCI) 6U
Board Dimensions:
10.5" x 8.5" x 1"
Connectors – Front Panel:
DB25 (female), DB9 (female), 4-pin connector
Connectors – Rear/Edge:
Dual 64/80-pin cPCI edge connectors, 2x keyed headers
Logic Technology:
FPGA – Field Programmable Gate Array
Process Node:
Altera Stratix first-generation (130nm)
Assembly Number:
ASSY 944-1778-003 REV (see label)
PCB Color:
Blue
Condition:
Used – Pulled from Working Environment
Seller Notes:
Board only; pulled from working system. Inspected, appears good.
Country/Region of Manufacture:
United States
Condition Notes:
Altera Stratix EP1S25F672C6 FPGA Board 944-1778-003 pulled from a working environment, actively in use. Inspected, good condition. Clean board, all FPGAs intact, connectors undamaged.
