Description
Intel EtherExpress 16 ISA LAN Adapter 306450-011 BNC Coax 10Base-2 8/16-Bit
This is a 10 Mbps Ethernet LAN adapter card for ISA bus systems. It connects to 10Base-2 (thin coaxial) networks using BNC connectors and supports both 8-bit and 16-bit ISA slots.
Specifications & What's Included
- Model: Intel EtherExpress 16 (MPN: 306450-011)
- Bus Interface: ISA 8/16-Bit
- Network Speed: 10 Mbps
- Network Standard: 10Base-2
- Connector: BNC (Coax) and DB-15 AUI
- Chipset: Intel 82596
- Manufacture: Taiwan
- Card only; no cables or documentation included
Applications
The EtherExpress 16 was designed for IBM PC/AT and compatible systems running DOS, Windows 3.x, Windows 95/98, and Windows NT. It was commonly used in office and industrial networks during the 1990s to connect legacy computers to 10Base-2 thin-net coaxial Ethernet systems. This adapter type is used in system restoration, network archaeology, and vintage computing environments.
Condition: Used

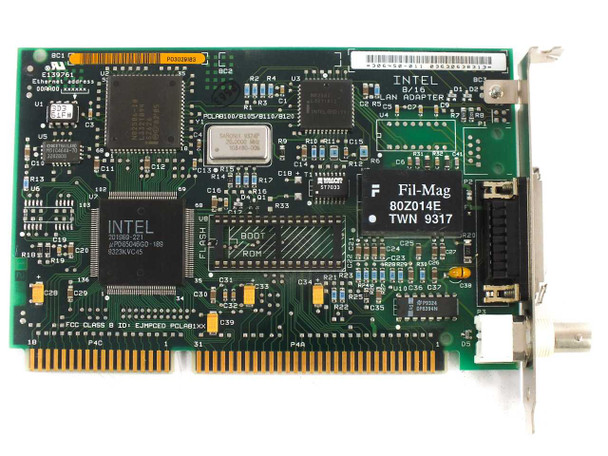

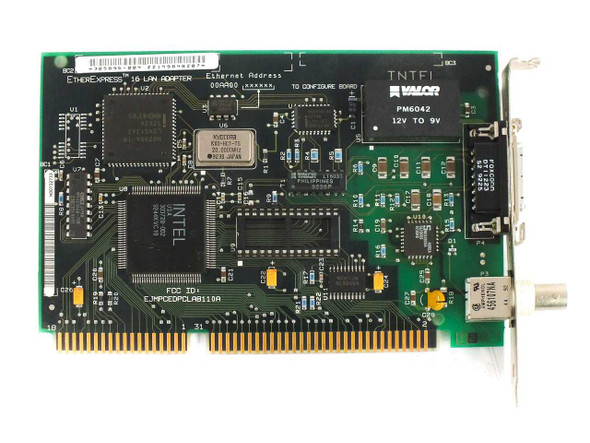

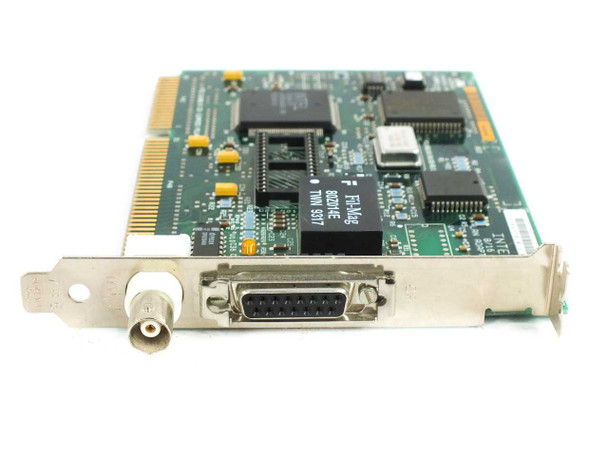

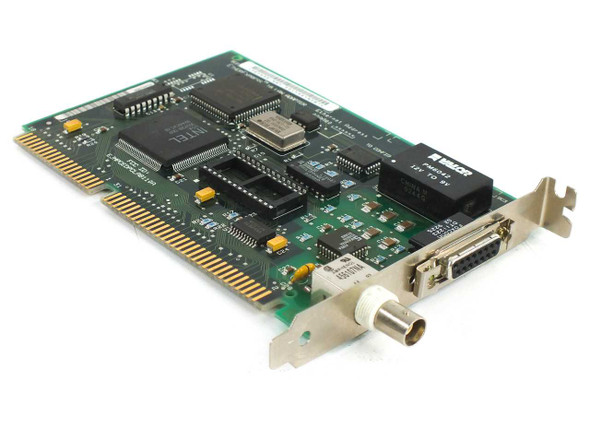

This Intel EtherExpress 16 ISA LAN Adapter (MPN 306450-011) was powered on and confirmed to light up in our Windows XP test bench — the card initializes and its indicator lights activate. It has not been tested beyond power-on in our facility. The card is in good cosmetic condition with light shelf wear consistent with storage. The PCB is clean, the BNC coax connector and DB-15 AUI port on the bracket are intact, and no physical damage is observed. Please view our photo set and contact us if you have any questions. We may have multiple units of this item in stock; the unit you receive may vary slightly from the photos but is functionally equivalent and inspected to the same standard.
This Intel EtherExpress 16 ISA LAN Adapter (MPN 306450-011) was powered on and confirmed to light up in our Windows XP test bench — the card initializes and its indicator lights activate. It has not been tested beyond power-on in our facility. The card is in good cosmetic condition with light shelf wear consistent with storage. The PCB is clean, the BNC coax connector and DB-15 AUI port on the bracket are intact, and no physical damage is observed. Please view our photo set and contact us if you have any questions. We may have multiple units of this item in stock; the unit you receive may vary slightly from the photos but is functionally equivalent and inspected to the same standard.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Intel |
Model: |
EtherExpress 16 |
MPN: |

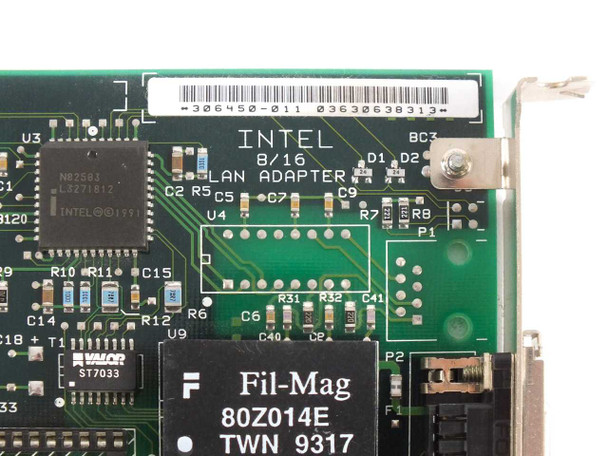

306450-011 |
Type: |
ISA Ethernet LAN Adapter Card |
SKU: |
52308 |
Bus Interface: |
ISA (8/16-Bit) |
Network Speed: |
10 Mbps |
Network Standard: |
10Base-2 |
Connector Type: |
BNC (Coax), DB-15 AUI |
Chipset: |
Intel 82596 (201969-221 / µPD65046GD-189) |
FCC ID: |
EJMPCED PCLAB1XX |
PCB Part Number: |

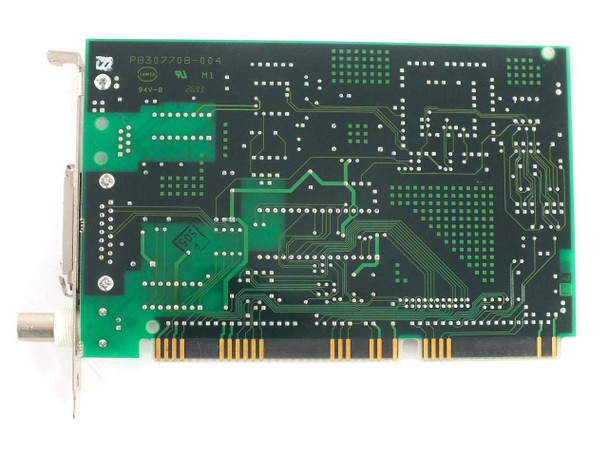

PB306770B-004 |
Form Factor: |
ISA Card |
Compatible With 1: |
IBM PC/AT and compatibles with ISA bus |
Compatible With 2: |
DOS, Windows 3.x, Windows 95/98, Windows NT |
Country/Region of Manufacture: |
Taiwan |
Condition: |
Used – Powers On, Partially Tested |
Seller Notes: |
Card only; powers on and lights up in Windows XP test bed |
Condition Notes: |
Intel EtherExpress 16 ISA LAN Adapter 306450-011. Powers on and lights up in our Windows XP test bed; not tested further. Good cosmetic condition, clean PCB, connectors intact. Please contact us with any questions. |
