Description
Intel EtherExpress 16 LAN Adapter 305897-002 ISA 16-Bit BNC AUI Ethernet Card
ISA-bus Ethernet network adapter for legacy computers. Provides 10 Mbps network connectivity via BNC (10Base2) or AUI (10Base5) connectors.
Specifications & What's Included
- Brand: Intel | Model: EtherExpress 16 | MPN: 305897-002
- 16-bit ISA half-height form factor
- Intel 82586 controller chipset
- 10 Mbps Ethernet (10Base2, 10Base5)
- BNC and 15-pin AUI connectors
- Compatible: DOS, Windows 3.x, Windows 95/98, Windows XP
- Card only; no drivers or accessories included
Applications
Used in 1980s and 1990s computers requiring ISA-based network connectivity. Connects legacy systems to coaxial Ethernet networks. Supported under DOS and early Windows operating systems through vendor drivers. Suitable for systems requiring 10Base2 or 10Base5 network standards and lacking onboard LAN.
Condition: Used
This Intel EtherExpress 16 ISA LAN Adapter (305897-002) has been powered on in our Windows XP test bed, where it was confirmed to power on and illuminate its onboard indicators. It has not been tested further beyond power-on verification. The card shows typical light cosmetic wear consistent with prior installation and removal from a system — the PCB is clean and the bracket, BNC connector, and AUI port all appear intact with no visible damage. Please view our photo set and contact us if you have any questions. We may have multiple units of this item in stock; the unit you receive may vary slightly from the photos but is functionally equivalent and inspected to the same standard.
This Intel EtherExpress 16 ISA LAN Adapter (305897-002) has been powered on in our Windows XP test bed, where it was confirmed to power on and illuminate its onboard indicators. It has not been tested further beyond power-on verification. The card shows typical light cosmetic wear consistent with prior installation and removal from a system — the PCB is clean and the bracket, BNC connector, and AUI port all appear intact with no visible damage. Please view our photo set and contact us if you have any questions. We may have multiple units of this item in stock; the unit you receive may vary slightly from the photos but is functionally equivalent and inspected to the same standard.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Intel |
Model: |
EtherExpress 16 |
MPN: |
305897-002 |
Type: |
ISA Ethernet LAN Adapter Card |
SKU: |
52307 |
Bus Interface: |
16-Bit ISA |
Network Speed: |
10 Mbps |
Connector Type: |
BNC (10Base2), AUI (15-pin D-Sub) |
Network Standard: |
Ethernet (10Base2, 10Base5) |

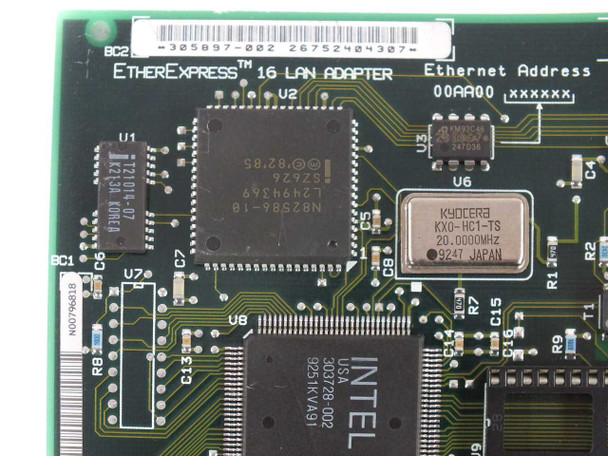

Controller Chipset: |
Intel 82586 |
Oscillator: |
Kyocera KXO-HC1-TS 20.000 MHz |
Form Factor: |
ISA Half-Height Card |

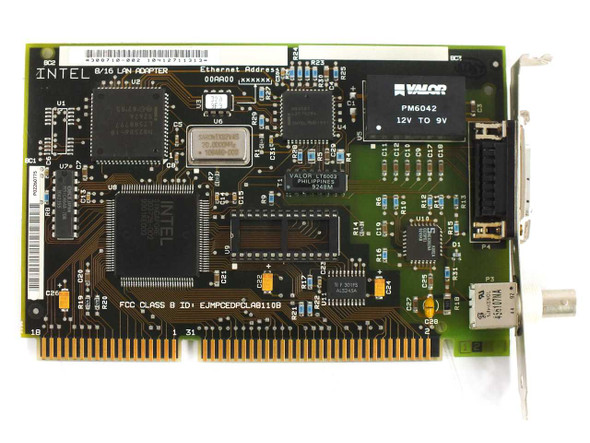

Transformer: |
Valor PM6042 (12V to 9V) |
PCB Revision: |
PB305898-002 (PCB reverse marking) |
FCC ID: |
EJMPCEDPCLAB110A |
Compatible With: |
DOS, Windows 3.x, Windows 95/98, Windows XP (ISA) |
Condition: |
Used – Powers On, Lights Up in Test |
Country/Region of Manufacture: |
USA |
Seller Notes: |
Card only; no drivers or accessories included. |
Condition Notes: |
Intel EtherExpress 16 305897-002 ISA LAN adapter. Powers on and lights up in our Windows XP test bed; not tested further beyond power-on. Card is clean with normal light wear. Please contact us with any questions. |
