Inficon Leybold-Heraeus Quadrex 200 901-002-G1 Residual Gas Analyzer 19" Rack
Residual gas analyzer controller designed for vacuum system monitoring and residual gas analysis. 19" rackmount unit with integrated CRT display and control interface.
Specifications & What's Included
- Model: Quadrex 200 (MPN 901-002-G1)
- Power: 120V or 220V AC, 50-60 Hz, 0.5 KVA
- Display: Built-in CRT monitor
- Front panel controls: Numeric keypad, MENU, RESET, SCAN, GAIN, EMIS, RELAYS, and additional function buttons

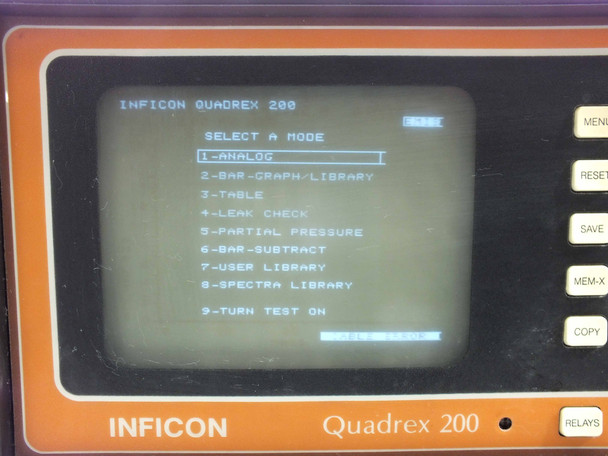

- Operating modes: Analog, Bar Graph, Table, Leak Check, Partial Pressure, Bar-Subtract, User Library, Spectra Library

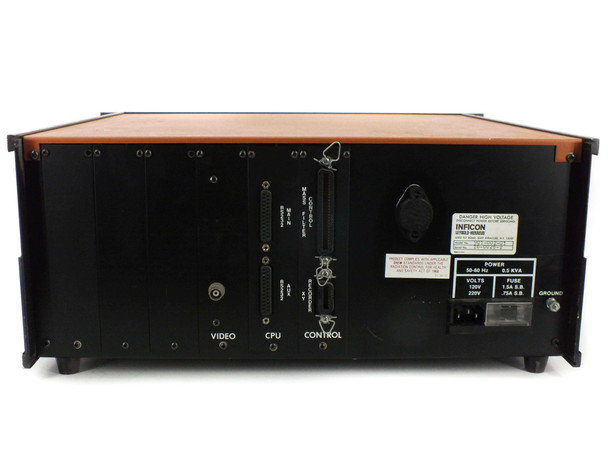

- Rear connectors: VIDEO, CPU, CONTROL
- Unit only; external sensor/analyzer tube not included
Applications
The Quadrex 200 controller was used in industrial and laboratory vacuum systems for monitoring residual gas composition and detecting leaks. It connects to a separate quadrupole mass spectrometer sensor head to perform mass spectrum analysis of gases in vacuum environments. Commonly deployed in semiconductor manufacturing, research facilities, and vacuum pump test stations.
Condition: Used
This Inficon Leybold-Heraeus Quadrex 200 Residual Gas Analyzer Controller (901-002-G1) has been inspected and is in good cosmetic condition overall. The unit powers on and the built-in CRT display lights up. The onboard menu responds normally to front-panel inputs, and the operating mode selection screen is visible and functional as shown in the photos. The unit does flash PROGRAM LOSS and CABLE ERROR messages, which likely indicate it is not connected to its external sensor head or that stored program data has been lost — this is expected behavior when the analyzer tube and sensor connections are absent. We were not able to test the unit further beyond powering it on and confirming the menu responds. The chassis and front panel show typical light wear consistent with previous lab use. The rear panel connectors (VIDEO, CPU, CONTROL) appear intact. Please review our full photo set carefully and contact us with any questions before purchasing.
This Inficon Leybold-Heraeus Quadrex 200 Residual Gas Analyzer Controller (901-002-G1) has been inspected and is in good cosmetic condition overall. The unit powers on and the built-in CRT display lights up. The onboard menu responds normally to front-panel inputs, and the operating mode selection screen is visible and functional as shown in the photos. The unit does flash PROGRAM LOSS and CABLE ERROR messages, which likely indicate it is not connected to its external sensor head or that stored program data has been lost — this is expected behavior when the analyzer tube and sensor connections are absent. We were not able to test the unit further beyond powering it on and confirming the menu responds. The chassis and front panel show typical light wear consistent with previous lab use. The rear panel connectors (VIDEO, CPU, CONTROL) appear intact. Please review our full photo set carefully and contact us with any questions before purchasing.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Inficon |
Model: |
Quadrex 200 |
MPN: |
901-002-G1 |
Secondary Model: |
901-002-G1 |
SKU: |
43953 |
Type: |
Residual Gas Analyzer Controller |
Manufacturer (Historical): |
Leybold-Heraeus |
Form Factor: |
19" Rackmount |

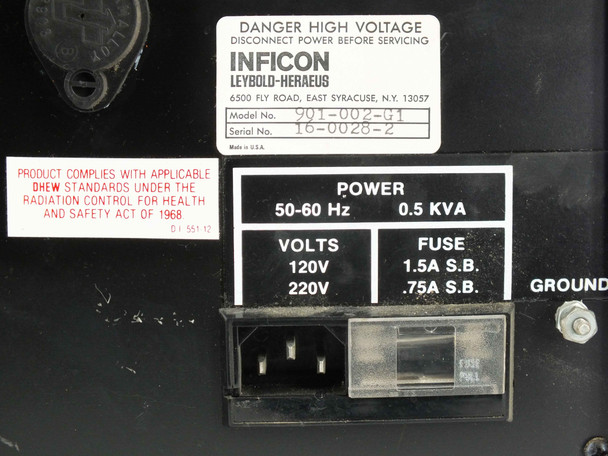

Power Requirements: |
120V or 220V AC, 50-60 Hz, 0.5 KVA |
Fuse Rating: |
120V: 1.5A S.B. / 220V: 0.75A S.B. |
Power Connector: |
IEC C13 inlet |
Display: |
Built-in CRT monitor |
Interface - Rear: |
VIDEO, CPU, CONTROL connectors (rear panel) |
Front Panel Controls: |
Numeric keypad, MENU, RESET, SAVE, MEM-X, COPY, GAIN, SCAN, CURSOR, RELAYS, CIEGAS, E-MULT, EMIS, POWER |
Application: |
Residual gas analysis, vacuum system monitoring |
Condition: |
Used – Powers On; Flashes PROGRAM LOSS and CABLE ERROR |
Country/Region of Manufacture: |
United States |
Seller Notes: |
Unit only; no external sensor/analyzer tube included. Powers on, menu responds, see condition notes. |
Condition Notes: |
Inficon Quadrex 200 RGA Controller 901-002-G1 powers on, CRT display lights up, front-panel menu responds. Flashes PROGRAM LOSS and CABLE ERROR — likely no sensor head connected. Not tested further. Good cosmetic condition. |
