Inficon Quadrex 100 017-010-G1 Residual Gas Analyzer 100 AMU RGA For Parts

Inficon Quadrex 100 017-010-G1 Residual Gas Analyzer 100 AMU RGA For Parts

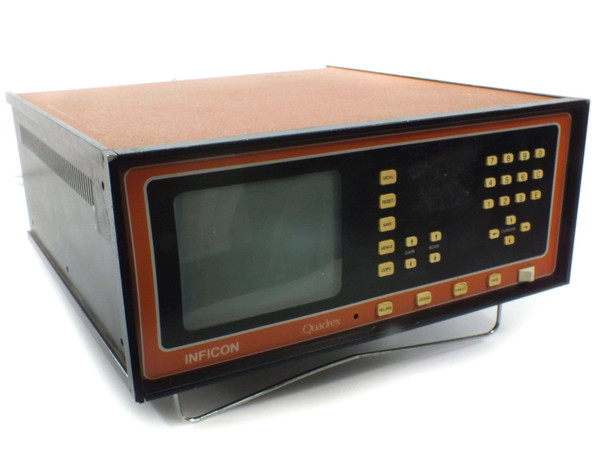

The Inficon Quadrex 100 is a benchtop quadrupole residual gas analyzer (RGA) designed to detect and measure trace gases in vacuum systems by scanning a mass range of 1 to 100 atomic mass units (AMU). It features a built-in CRT display with five selectable data display formats and on-board memory for storing up to four displays. This unit (model 017-010-G1) powers on, but the CRT produces either a blank screen or scrambled text, indicating a failing display. It is being sold as-is for parts or repair.

Specifications & What's Included

• Brand: Inficon (Leybold-Heraeus)
• Model: Quadrex 100
• Part Number: 017-010-G1
• Mass Range: 1 to 100 AMU
• Display: Built-in CRT (currently failing — blank or scrambled output)
• Data Display Formats: Five selectable formats
• Display Memory: Up to four stored displays
• Power: 120V / 220V, 50–60 Hz, 0.5 KVA
• Fuse: 1.5A S.B. (120V) / 0.75A S.B. (220V)
• Front Panel Controls: MENU, RESET, SAVE, MEM-X, COPY, GAIN, SCAN, CURSOR, RELAYS, DEGAS, E MULT, EMIS
• Rear Connectors: VIDEO, CPU, CONTROL ports (multi-pin)
• Form Factor: Benchtop
• Manufactured in USA (East Syracuse, NY)
• Unit powers on; sold as-is for parts or repair — no functionality guarantee

Applications

Residual gas analyzers like the Inficon Quadrex 100 are used in vacuum process environments to identify and monitor the partial pressures of gas species present inside a vacuum chamber. They are standard diagnostic tools in semiconductor fabrication, thin-film deposition (PVD/CVD), electron beam systems, surface science research, and mass spectrometry laboratories. The Quadrex 100 was part of Inficon's (then operating as Leybold-Heraeus) line of integrated RGA systems from the 1980s and early 1990s, distinguished by their all-in-one benchtop design with a self-contained CRT display and dedicated keypad — a contrast to later PC-based RGA systems that offloaded the display to a host computer. A working Quadrex 100 is still sought by vacuum system operators maintaining legacy deposition or etch tools, as well as by researchers and technicians who need a standalone RGA without a PC interface. This unit, with its failing CRT, is well suited for parts harvesting, CRT replacement/repair, or integration with an external video monitor via the rear VIDEO connector.
